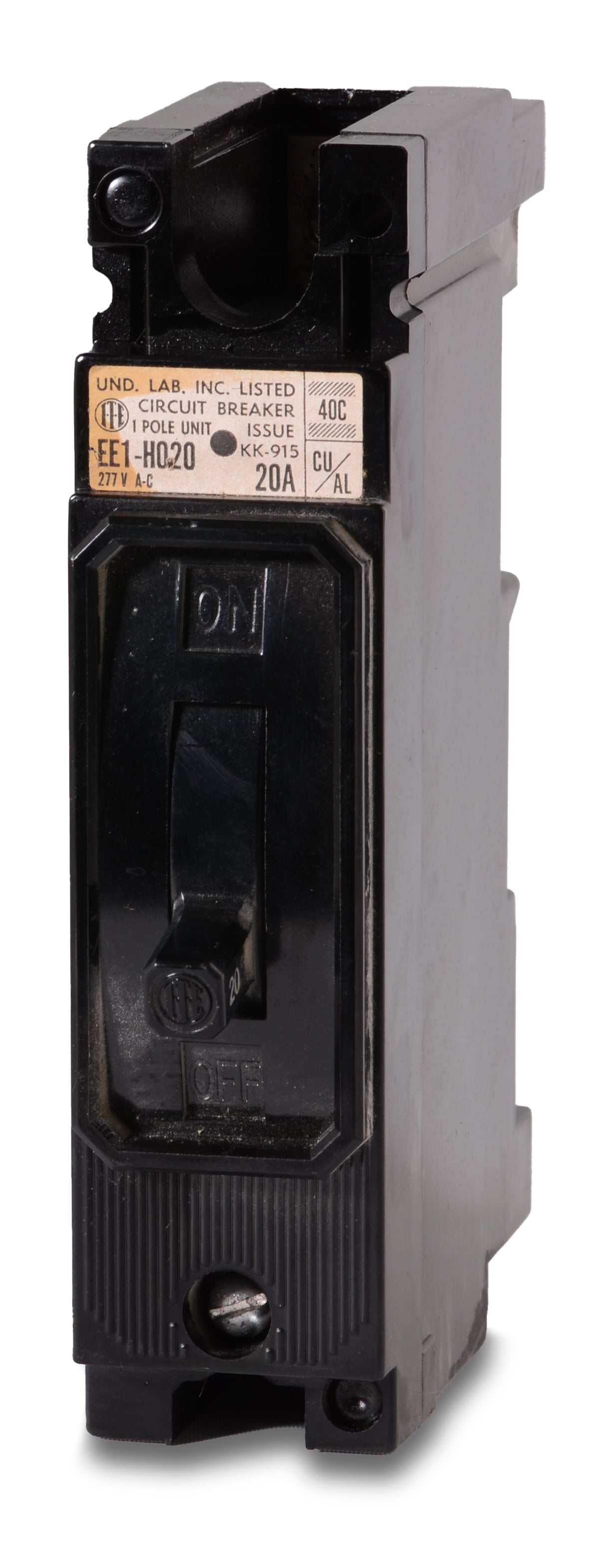

Siemens EE1-H020 EE1H020 - 20A 1 Pole Motor Circuit Protector
- 20A
- 1 Pole
- Bolt-On
Quantity
Siemens EE1H020 - 20A 1 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
Built for industrial motor protection, the Siemens EE1-H020 delivers instantaneous magnetic-only trip functions for 20A circuits. It coordinates with motor starters and overload relays to prevent equipment damage. This bolt-on protector mounts into Siemens P1, P2, P3, and legacy ITE panelboards. For modern upgrades, this E-frame unit is substituted by the ED41B020 breaker. Rated 10kAIC at 120VAC, it ensures reliable performance in commercial motor control applications.Specifications
| Brand | Siemens |
|---|---|
| Series | EE |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Non-Interchangeable Trip |
