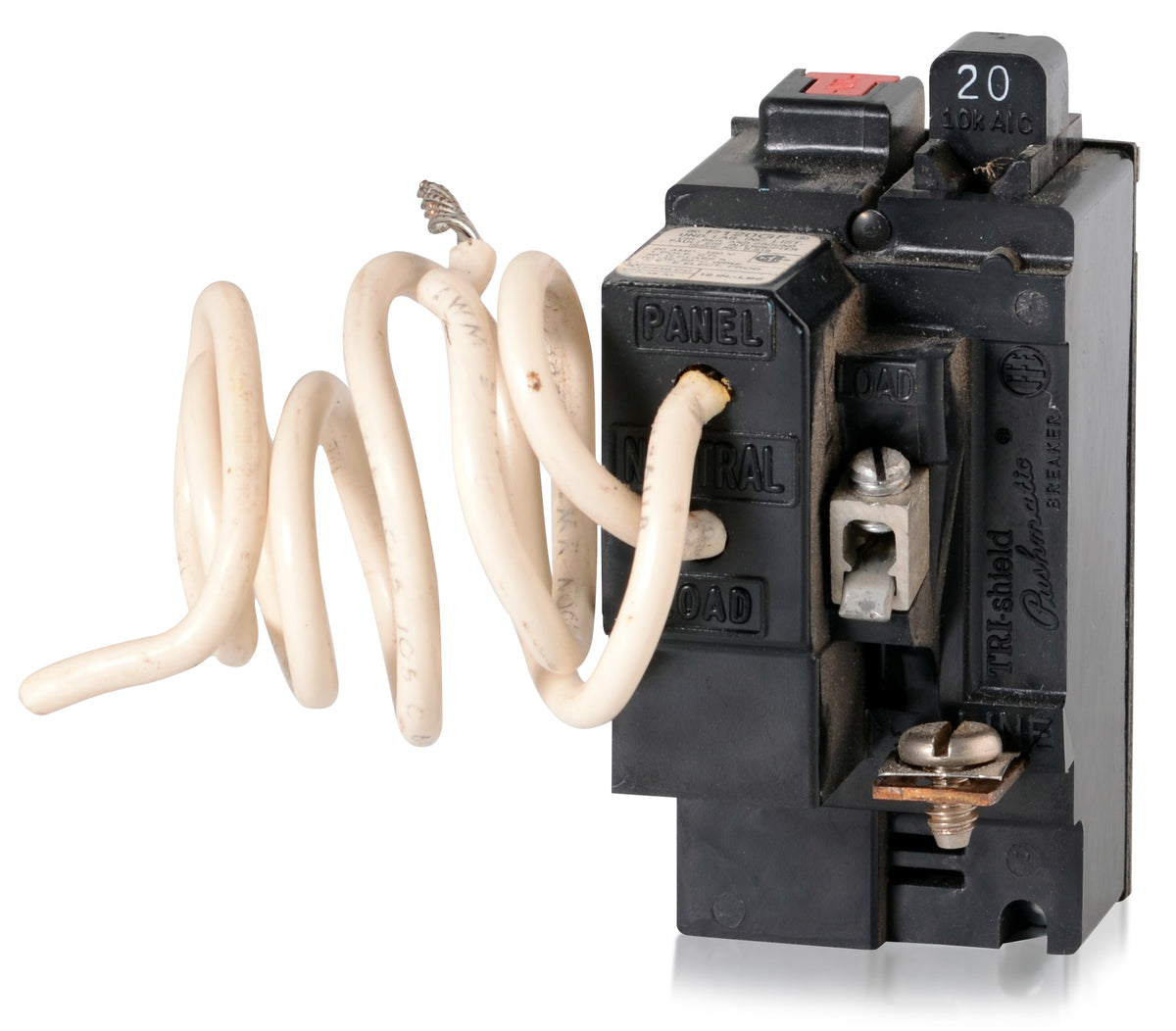

Siemens P120GF GFCI Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Siemens P120GF - 20A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens P120GF - 20A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | P |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Quantity
Siemens P120GF - 20A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | P |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Description
Built for wet locations, the Siemens P120GF provides 20A ground-fault protection on 120V circuits. It combines thermal-magnetic trip functions with sensitive ground-fault detection to meet NEC requirements. Featuring a bolt-on mounting style, it installs into Pushmatic load centers. It replaces legacy Gould, Bulldog, and ITE P120GF models, extending the life of older panelboards.Specifications
| Brand | Siemens |
|---|---|
| Series | P |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the Siemens P120GF circuit breaker?
The Siemens P120GF is designed exclusively for use in Pushmatic load centers. It features a bolt-on mounting style specific to these legacy panels.
Can the Siemens P120GF replace older Pushmatic GFCI breakers?
Yes, the Siemens P120GF is a direct replacement for legacy Gould, Bulldog, and ITE P120GF circuit breakers used in Pushmatic panels.
How does the Siemens P120GF connect to the neutral bar?
This GFCI breaker includes a pigtail neutral wire that must be connected directly to the panel neutral bus bar to ensure proper ground-fault detection.
What level of ground-fault protection does the P120GF provide?
The P120GF provides Class A ground-fault protection with a 5mA trip sensitivity, designed to protect personnel from electrical shock in wet locations.
What wire sizes are accepted by the terminals on the P120GF?
The screw and clamp terminals on this breaker accept 14 AWG to 10 AWG copper or aluminum wiring.
What trip functions are included in the P120GF breaker?
This thermal magnetic breaker includes Long-Time, Instantaneous, and Ground-Fault (LIG) trip functions to protect against overloads, short circuits, and ground faults.
