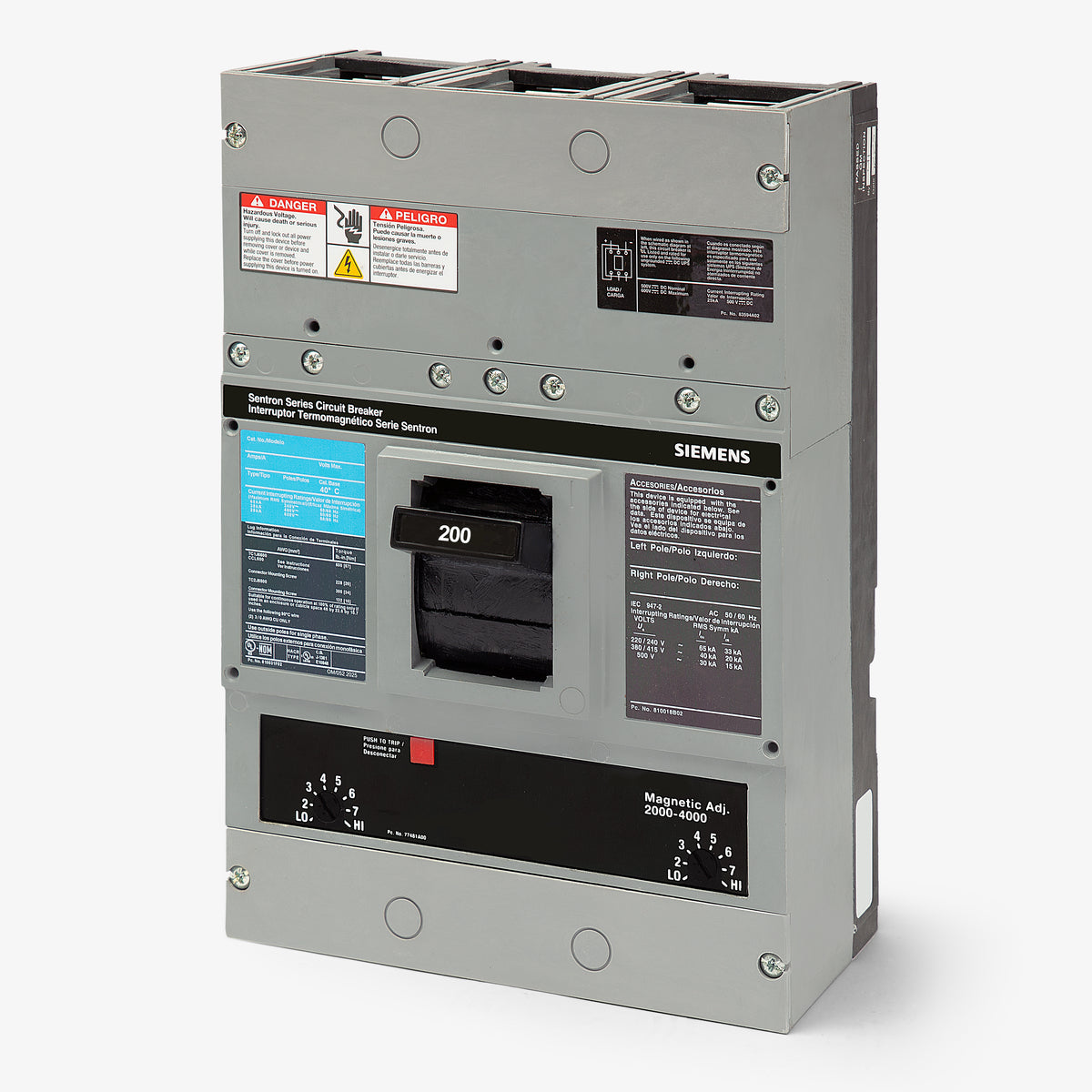

Siemens JXD22B200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Siemens
JXD22B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
JXD22B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens JXD22B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens JXD22B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | JXD22B200 |
| Series | JXD2 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens JXD22B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | JXD22B200-R |
| Series | JXD2 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
250A 2 Pole Molded Case Circuit Breaker
300A 2 Pole Molded Case Circuit Breaker
350A 2 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial use, the 2-pole, 200-amp JXD22B200 molded case circuit breaker belongs to the Siemens Sentron family. It features a non-interchangeable thermal-magnetic trip unit providing long-time and instantaneous (LI) protection. This bolt-on breaker mounts into Siemens Sentron panelboards, SB switchboards, and motor control centers. Lugs are not included and must be purchased separately (requires TA2J6500).Specifications
| Brand | Siemens |
|---|---|
| Part Number | JXD22B200 |
| Series | JXD2 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Sentron Panelboards, SB Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat lug kit is required for the Siemens JXD22B200?

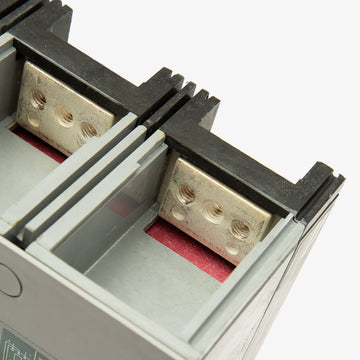

The JXD22B200 requires the TA2J6500 lug kit, which accommodates 3/0 AWG to 500 kcmil copper or aluminum wire. Lugs are typically sold separately for this bolt-on breaker.
What is the adjustable magnetic trip range for this 200A breaker?
The instantaneous magnetic trip on the JXD22B200 is adjustable from a low setting of 1250A to a high setting of 2500A.
Can the Siemens JXD22B200 replace older ITE versions?
Yes, the Siemens JXD22B200 is a direct replacement for legacy ITE JXD22B200 breakers. Siemens acquired ITE and continues to manufacture this JD-frame breaker to the exact same physical and electrical specifications.
Does the JXD22B200 feature an interchangeable trip unit?
No, the JXD22B200 comes with a factory-installed, non-interchangeable thermal-magnetic trip unit. This non-interchangeable design is what designates it as a JXD frame rather than a standard JD6 frame.
Is the Siemens JXD22B200 suitable for reverse feeding?
Yes. Because it is built with a non-interchangeable trip unit, the JXD22B200 is UL 489 listed for reverse feed applications.
Can this breaker be used in DC power systems?
Yes, the JXD22B200 is rated for 250VDC applications and provides a 30kAIC interrupting rating on direct current systems.
Which panelboards and switchboards accept the JXD22B200?
This bolt-on JD-frame breaker is designed for installation in Siemens Sentron panelboards, SB switchboards, and Siemens motor control centers.
Is the JXD22B200 HACR rated?
Yes, this breaker carries an HACR rating, making it fully compliant for protecting heating, air conditioning, and refrigeration equipment circuits.
