Siemens MPD2200R Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Quantity

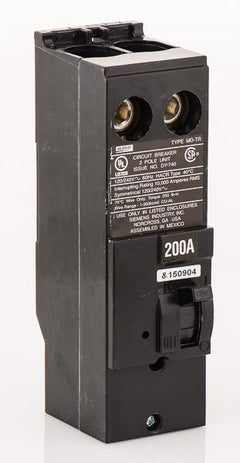

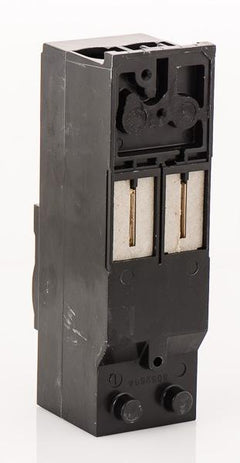

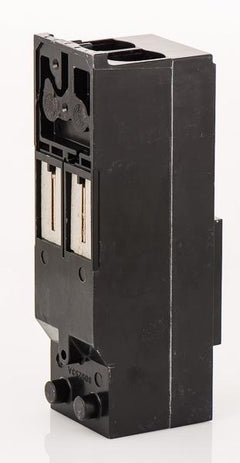

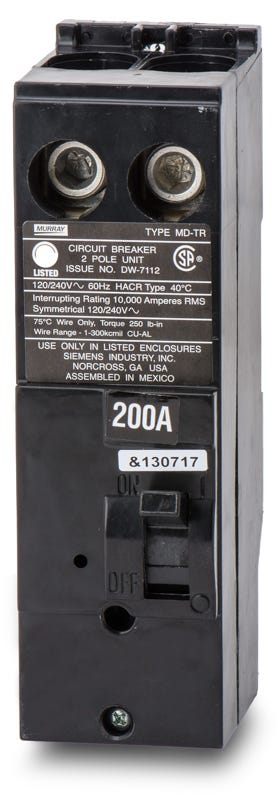

Siemens MPD2200R - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Accommodating bottom-feed panel configurations, this 200A main breaker features a reverse handle where the ON position faces the lugs. It installs into Murray and Siemens load centers requiring specialized orientation for the primary disconnect. The unit delivers standard 10kAIC protection at 120/240VAC using proven thermal-magnetic trip technology. For modern replacements, the QN2200R serves as the current equivalent for these specific panel setups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MPD2200R |
| Series | MPD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Reverse Handle (ON towards lugs) |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Main Breaker |
Product FAQs
5 answersHow many panel spaces does the Siemens MPD2200R require?
This 200A breaker requires four panel spaces. It utilizes two adjacent and two opposite spaces due to its cross-over design.
What are the direct replacements for the MPD2200R?
The Siemens QN2200R is the exact modern equivalent for this unit. It also serves as a direct replacement for legacy QPM2200 breakers.
What does the R suffix in the MPD2200R part number indicate?
The R suffix denotes a factory-installed reverse handle. This configuration is necessary for specific panel orientations, such as horizontal mounting or vertical applications where the lugs are positioned at the top.
Is the MPD2200R compatible with legacy Crouse-Hinds load centers?
It can be used in certain legacy Crouse-Hinds panels. For enclosures manufactured prior to 2002, you must verify that the MPD2200R is explicitly listed as an approved breaker type on the wiring diagram affixed to the inside of the panel door.
Can the MPD2200R be used as a branch breaker?
While commonly installed as a replacement main breaker in older-style load centers, it can also function as a branch breaker if permitted by the specific panel design and labeling.
