Siemens Q2200B Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Siemens
Q2200B
Molded Case Circuit Breaker
Brand
Siemens
SKU
Q2200B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

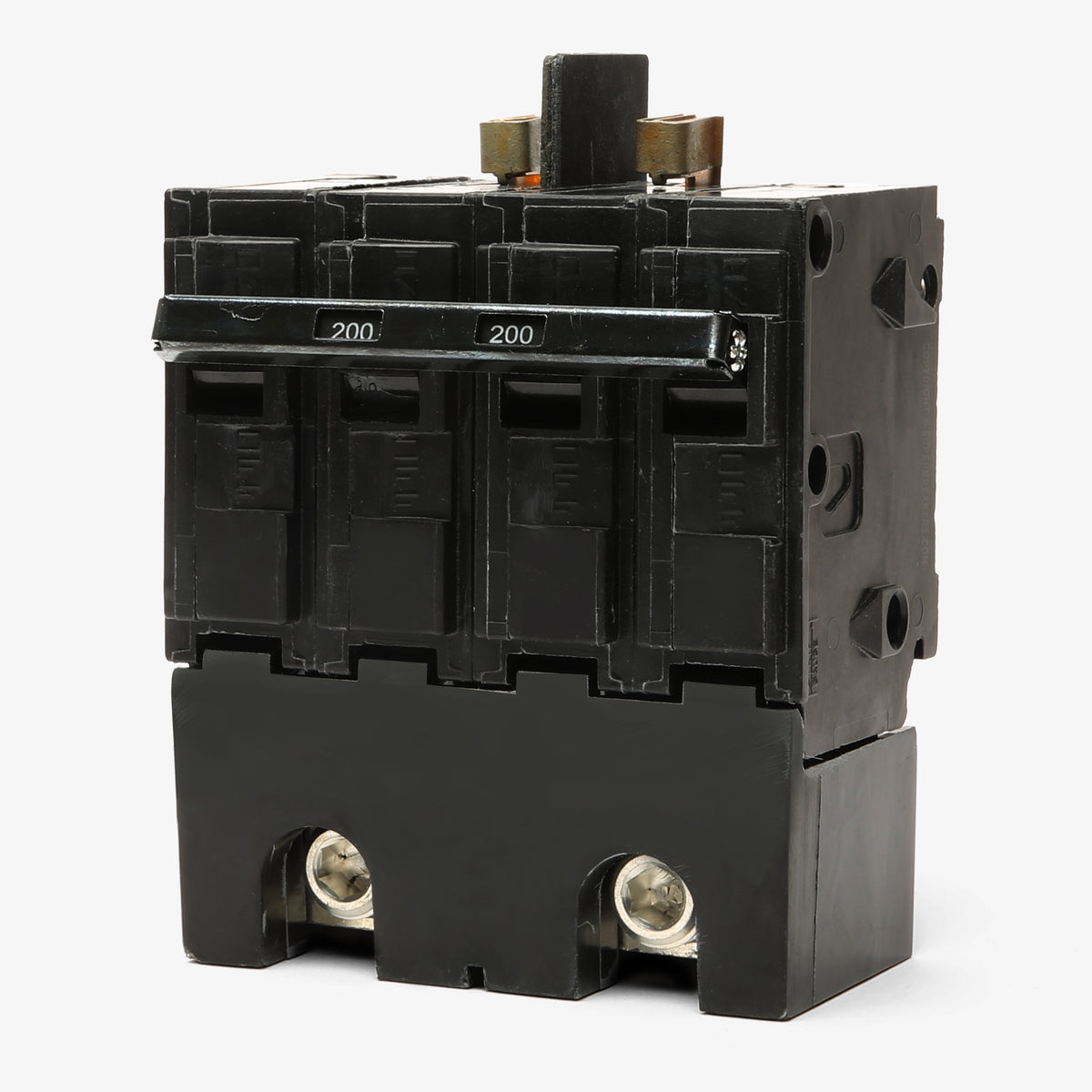

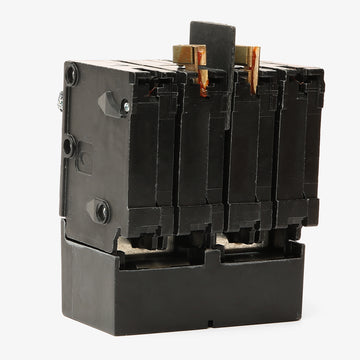

Siemens Q2200B - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens Q2200B - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q2200B |
| Series | Q |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combos |
| Wire Gauge | 3/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed, Main Breaker |
Sold out
Quantity
Siemens Q2200B - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q2200B-R |
| Series | Q |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combos |
| Wire Gauge | 3/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed, Main Breaker |
Similar Items

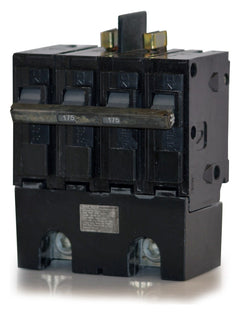

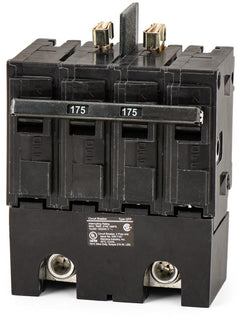

175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description

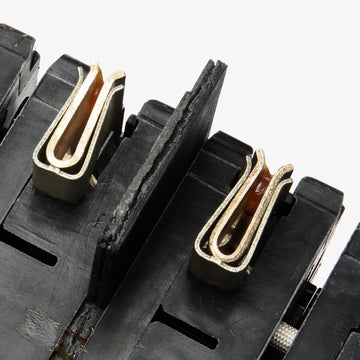

Serving as a robust main breaker for residential and commercial electrical systems, this 200-amp device delivers essential overcurrent protection. The plug-on design mounts into Siemens load centers and meter combinations that accommodate a four-space configuration. It supports reverse feed applications, offering installation flexibility for various panelboard layouts. Equipped with Insta-Wire technology, the terminal screws come backed out to accelerate the wiring process for contractors.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q2200B |
| Series | Q |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combos |
| Wire Gauge | 3/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed, Main Breaker |
Product FAQs
6 answersIs the Q2200B a direct replacement for the Siemens or ITE EQ9685 main breaker?
Yes, the Q2200B is the modern equivalent and direct replacement for the obsolete EQ9685 200-amp main circuit breaker.
How many panel spaces does the Q2200B require in a load center?
This Type QPP breaker requires four panel spaces total. Due to its cross-over design, it occupies two adjacent spaces and two opposite spaces on the bus bar.
Can the Q2200B breaker be reverse fed?
Yes, this breaker supports reverse feed applications, offering installation flexibility for various panelboard layouts.
Is the Q2200B compatible with older Murray panels?
Yes, Siemens circuit breakers are UL Listed for use with Murray Meter Combo Load Centers, EQ Small Circuit Load Centers, and Murray Rock Solid Load Centers manufactured after January 2002.
How does the side-wired design of the Q2200B assist with installation?

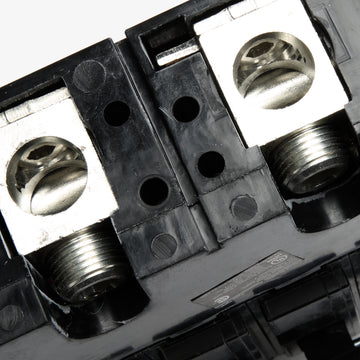

The exclusive side-wired configuration saves wiring space and eliminates the need for difficult S-bends with heavy-gauge conductors. Additionally, the Insta-Wire terminal screws come backed out from the factory to accelerate the wiring process.
Which main breaker conversion kit utilizes this 200-amp breaker?
The Q2200B is the core breaker used in the Siemens MBK200A 200-amp main breaker conversion kit.
