Siemens QN2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Siemens
QN2200
Molded Case Circuit Breaker
Brand
Siemens
SKU
QN2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

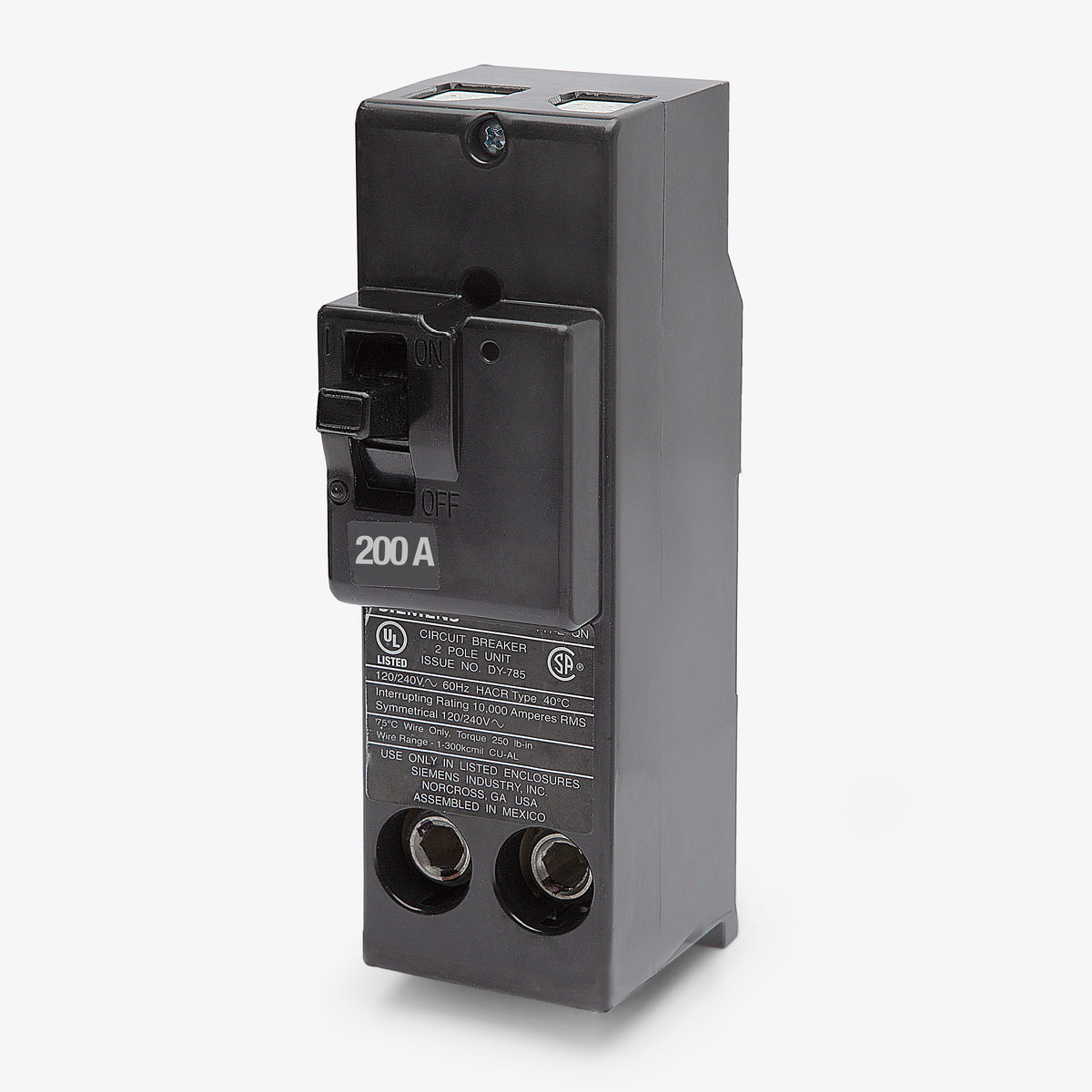

Siemens QN2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the QN2200 provides robust overcurrent protection in Siemens load centers and meter combinations. This 200-amp, 2-pole molded case circuit breaker features a convenient plug-on design and replaces older MPD2200 and Q2200B models. Rated for 10 kAIC at 120/240VAC, it includes common trip functionality and is HACR rated, making it suitable for a wide variety of heating, air conditioning, and refrigeration circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QN2200 |
| Series | QN |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combinations |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Reverse Feed, Requires 4 Panel Spaces |
Product FAQs
5 answersDoes the Siemens QN2200 replace obsolete Murray 200A main breakers?
Yes, the QN2200 is the current direct replacement for legacy Murray Type MD-T and MPD2200 main breakers. Siemens retired the Murray brand, and Type QN is the manufacturer-approved equivalent for these older load centers.
What is the difference between the QN2200 and the QN2200R?
The QN2200R features a reverse-oriented handle. The standard QN2200 is used in standard vertical configurations, whereas the QN2200R is required for horizontal mounting in certain meter-mains to ensure the ON/OFF handle operates in the correct direction for the enclosure.
How does the QN2200 differ from the QN2200H?
These breakers share the same physical footprint and 200-amp capacity, but they have different short-circuit interrupting capacities. The QN2200 is rated for 10 kAIC, while the QN2200H is a high-interrupting variant rated for 22 kAIC.
How much physical space does the QN2200 take up in a load center?
When mounted on the bus as a branch breaker or back-fed main, this Q-frame breaker occupies four standard 1-inch pole spaces across two rows (two spaces on the left and two on the right). It can also mount directly into dedicated main breaker retainers in compatible Siemens meter combinations.
Do I need a hold-down kit if using the QN2200 as a main breaker?
If you are installing the QN2200 as a back-fed main breaker on the panel bus, the National Electrical Code (NEC) requires a manufacturer-approved hold-down retainer to secure it. If it is being installed in a dedicated main breaker position with factory-installed retainers, an additional kit is not required.
