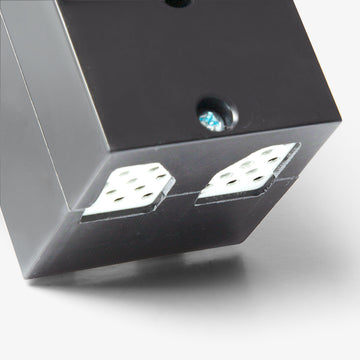

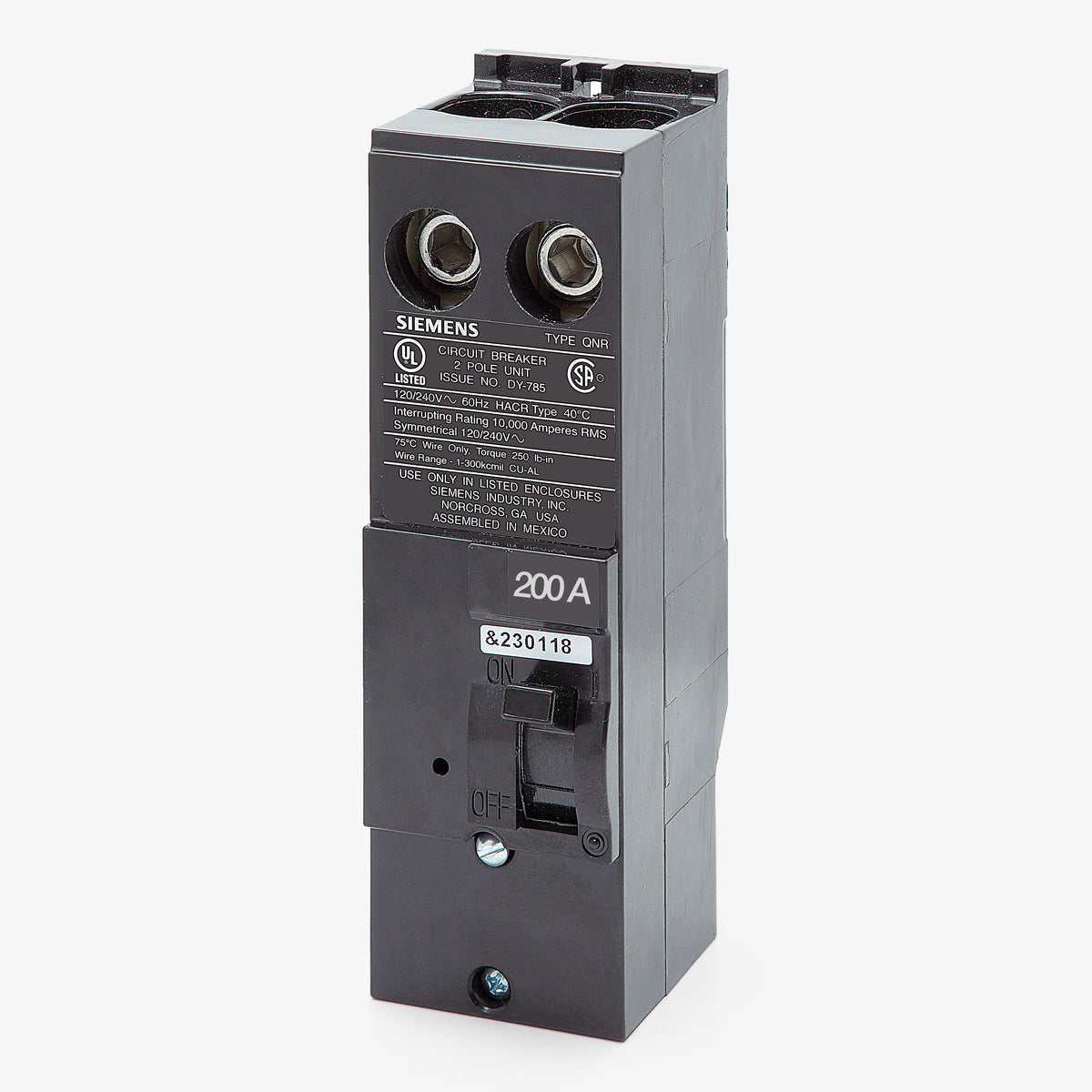

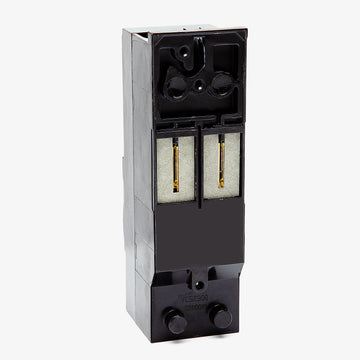

Siemens QN2200R Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Siemens
QN2200R
Molded Case Circuit Breaker
Brand
Siemens
SKU
QN2200R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QN2200R - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Part of the Siemens QN series, this 200A molded case circuit breaker provides thermal-magnetic protection for residential and commercial applications. It handles demanding electrical loads while maintaining a 10kAIC rating at 120/240VAC. This plug-on unit mounts into Siemens load centers and meter combinations, requiring four panel spaces. It serves as an exact replacement for legacy QPM2200 and MPD2200R breakers. The factory-installed reverse handle accommodates specific panel orientations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QN2200R |
| Series | QN |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|

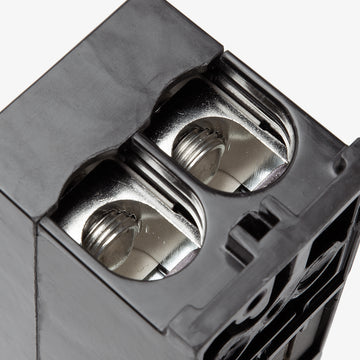

| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combinations |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Reverse Handle (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Requires 4 Panel Spaces, Reverse Handle |
Product FAQs
4 answersWhat is the difference between the Siemens QN2200 and QN2200R?
The QN2200R features a reverse handle, designated by the R in the catalog number. It is required for horizontal installations or vertical applications where the lugs face upward. The standard QN2200 is used for vertical installations where the lugs face downward.
Which legacy circuit breakers can the QN2200R replace?
The QN2200R serves as an exact replacement for legacy Siemens QPM2200 and Murray MPD2200R main breakers in compatible load centers and meter combinations.
How many panel spaces does the QN2200R require?
This plug-on molded case circuit breaker requires four standard panel spaces in a compatible Siemens enclosure.
What is the proper mounting orientation for the QN2200R?
As a Type QNR reverse-handle breaker, it is designed specifically for horizontal mounting or vertical mounting with the lugs facing up. This ensures the handle operates in the correct ON and OFF directions to meet electrical code requirements.
