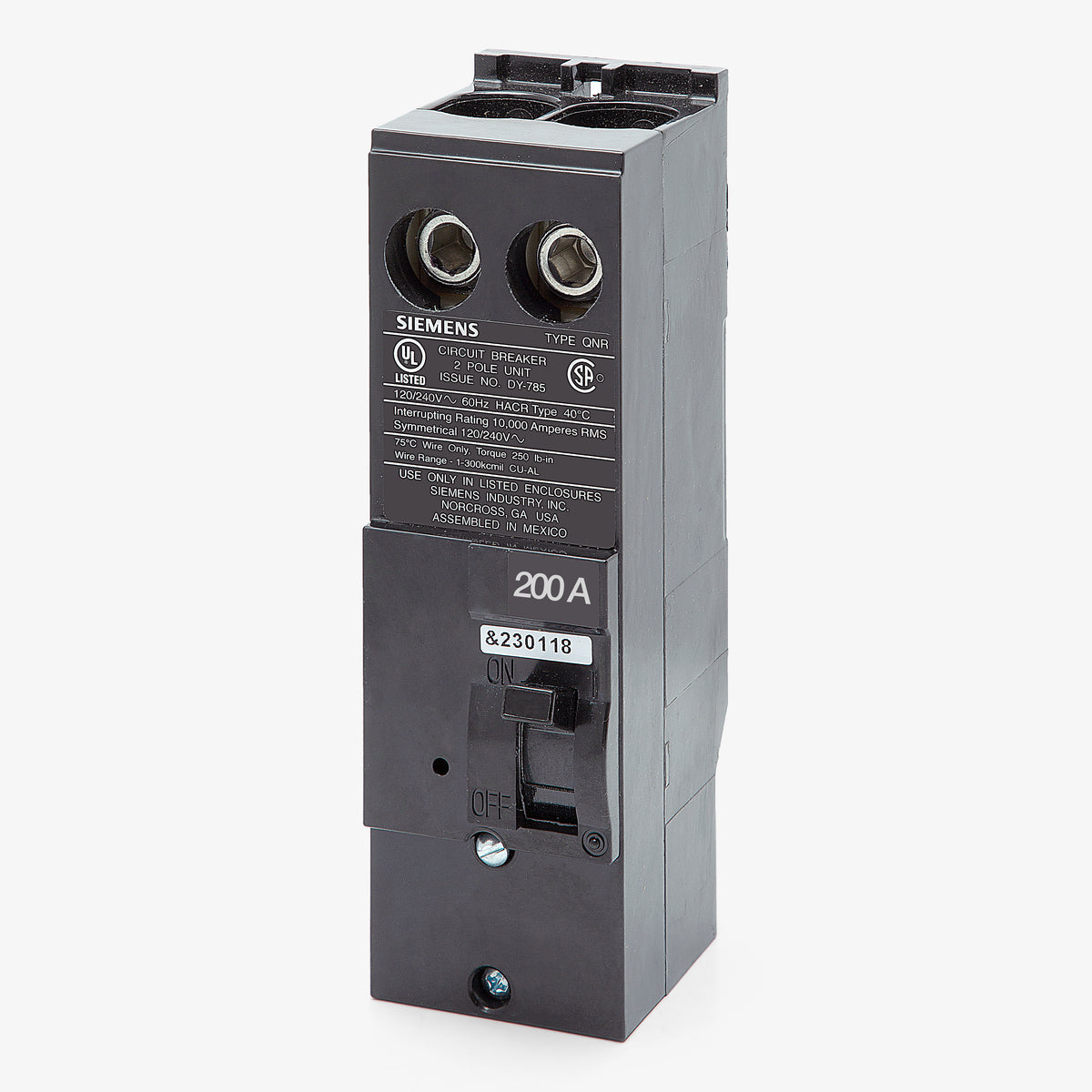

Siemens QN2200RH Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Siemens
QN2200RH
Molded Case Circuit Breaker
Brand
Siemens
SKU
QN2200RH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QN2200RH - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Built for high-fault environments, this 200A molded case circuit breaker delivers an upgraded 22kAIC interrupting capacity at 120/240VAC. It provides reliable thermal-magnetic protection for residential and commercial systems. The plug-on design mounts into Siemens load centers and meter combinations, occupying four panel spaces. It is fully compatible as a replacement for the older MPD2200RH model. A factory-installed reverse handle allows for specialized panel mounting.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QN2200RH |
| Series | QNH |
| Amperage | 200A |
| Poles | 2 |

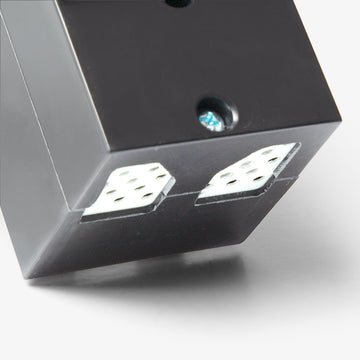

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Meter Combinations |

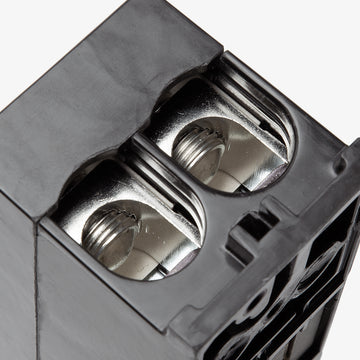

| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Shunt Trip |
|---|---|
| Accessories | Reverse Handle (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Reverse Handle, Common Trip, Requires 4 Panel Spaces |
Product FAQs
6 answersWhat does the "R" suffix in the QN2200RH catalog number indicate?
The "R" designates a reverse handle configuration. This design provides the correct ON/OFF handle orientation when the breaker is mounted horizontally in a load center, or vertically with the lugs pointing upward.
What is the difference between the QN2200RH and the standard QN2200H?
Both are 200A, 22kAIC circuit breakers, but they are designed for different mounting orientations. The QN2200RH features a reverse handle for horizontal mounting, while the QN2200H is used for vertical mounting where the lugs point downward.
Which legacy circuit breakers can the QN2200RH replace?
This breaker serves as a direct replacement for the obsolete Murray and Crouse-Hinds MPD2200RH model. Always check your panel's wiring diagram to confirm QNRH compatibility before installation.
How much physical space does this breaker occupy in a panel?
The QN2200RH has a 4-inch frame and requires four standard 1-inch panel spaces to install.
Can the QN2200RH be used as a branch breaker?
Yes, it can function as a branch breaker, but only if your specific Siemens load center wiring diagram lists the QNRH type as an approved branch device. It is also commonly used as a main breaker in meter-main combinations.
What does the "H" in the QN2200RH part number mean?
The "H" indicates a high interrupting rating. While standard QNR breakers provide a 10kAIC rating, the QNRH series is upgraded to safely interrupt up to 22kAIC at 240V.
