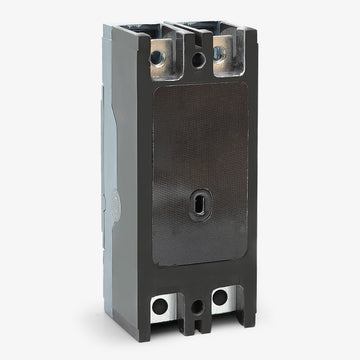

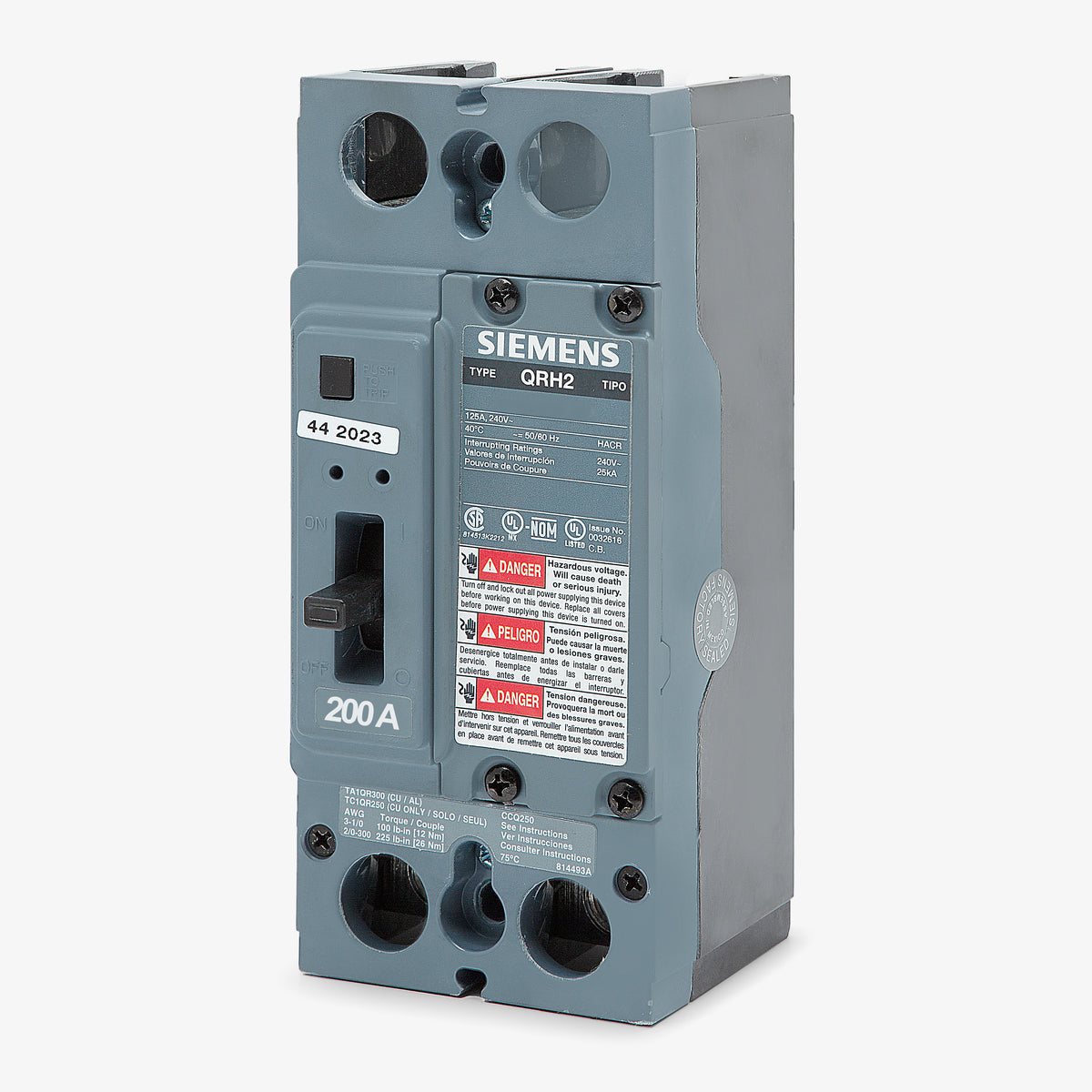

Siemens QRH22B200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Siemens
QRH22B200
Molded Case Circuit Breaker
Brand
Siemens
SKU
QRH22B200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QRH22B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens QRH22B200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QRH22B200 |
| Series | QRH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Siemens QRH22B200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | QRH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens QRH22B200 delivers reliable thermal-magnetic protection as part of the SENTRON family. This 2-pole MCCB features fixed long-time and instantaneous (LI) trip functions to safeguard electrical systems. The bolt-on unit installs seamlessly into Siemens P2 panelboards, switchboards, and motor control centers. It also serves as an exact replacement for the legacy QJ22B200. Rated for 25kAIC at 240VAC, it includes a push-to-trip testing mechanism.Specifications
| Brand | Siemens |
|---|---|
| Series | QRH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | QR |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersCan I install this breaker in a standard residential load center?
No, this is a bolt-on molded case circuit breaker designed specifically for Siemens P2 panelboards, switchboards, and motor control centers. It will not fit in standard plug-on residential load centers.
Can the QRH22B200 replace older QJ frame breakers?
Yes, this QR frame breaker serves as an exact drop-in replacement for the legacy QJ22B200 circuit breaker.
What is the difference between the QR22B200 and the QRH22B200?
The H in the catalog number indicates a higher interrupting capacity. The QRH22B200 is rated for 25kAIC at 240VAC, while the standard QR22B200 is rated for 10kAIC.
What wire sizes are accepted by the terminals on this breaker?

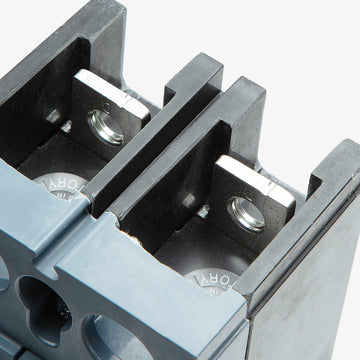

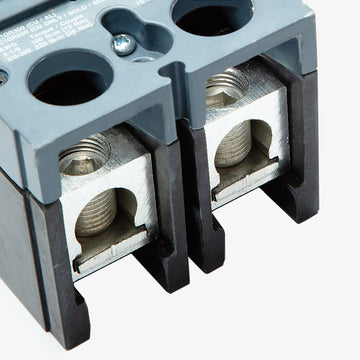

The factory lugs are rated for both aluminum and copper conductors, accepting wire sizes from 3/0 AWG up to 300 kcmil.
Is the QRH22B200 suitable for reverse feed applications?
Yes, this molded case circuit breaker is UL listed for reverse feeding, allowing it to be used as a main breaker or in back-fed configurations.
Is this breaker HACR rated for HVAC equipment?
Yes, it carries an HACR rating, making it suitable for use with commercial heating, air conditioning, and refrigeration equipment.
