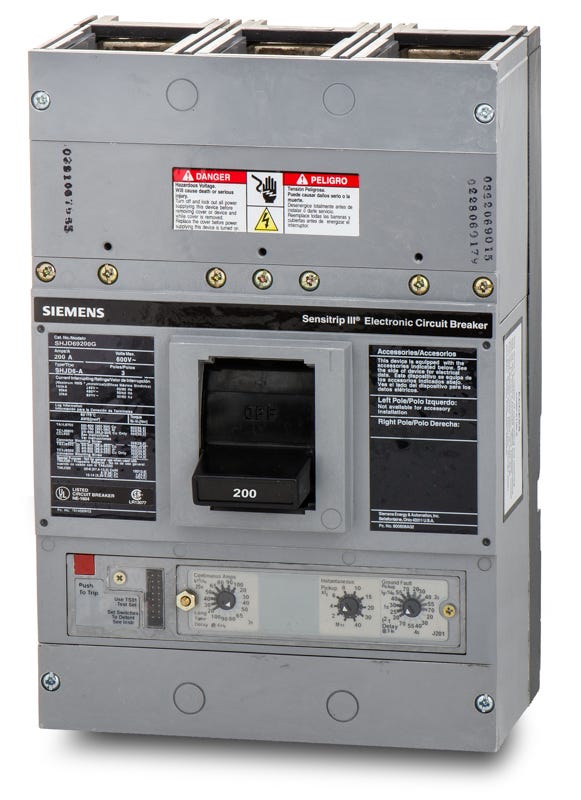

Siemens SHJD69200G Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Siemens
SHJD69200G
Molded Case Circuit Breaker
Brand
Siemens
SKU
SHJD69200G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens SHJD69200G - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron JD-frame family, this 200A electronic trip molded case circuit breaker provides advanced LIG (Long-Time, Instantaneous, Ground-Fault) protection for commercial and industrial applications. It installs into Siemens P4 and P5 panelboards or switchboards, utilizing standard unit mounting.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SHJD69200G |
| Series | SHJD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 40-200A |
|---|
| Frame Type | SJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the SHJD69200G circuit breaker?
This unit-mount breaker is designed for installation in Siemens P4 and P5 panelboards, as well as Siemens switchboards.
What does the "G" in the SHJD69200G catalog number signify?
The "G" indicates that the breaker's electronic trip unit includes Ground-Fault protection. It features an LIG trip function, providing Long-Time, Instantaneous, and Ground-Fault protection.
What wire sizes and materials are accepted by the lugs on the SHJD69200G?
The standard lugs accommodate 3/0 AWG to 500 kcmil copper (Cu) or aluminum (Al) conductors. Ensure you apply the correct torque specified on the breaker's faceplate during installation.
How does the SHJD69200G differ from standard JD-frame breakers?
The "SH" prefix designates this as a high-interrupting capacity breaker (65kAIC at 480V) with a solid-state electronic trip unit, offering more precise adjustability than standard thermal-magnetic JD6 breakers.
Can I use the SHJD69200G to upgrade an existing 200A thermal-magnetic JD breaker?
Yes, because it shares the standard Siemens JD frame footprint, it can physically replace older 200A thermal-magnetic versions when you need to upgrade to an electronic trip unit with ground-fault protection and higher interrupting ratings.
Are the trip settings on the SHJD69200G adjustable?
Yes, the solid-state electronic trip unit allows for adjustable settings across its Long-Time, Instantaneous, and Ground-Fault parameters, enabling precise coordination with your electrical system.
