Siemens SHJD69200NGTH Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Siemens
SHJD69200NGTH
Molded Case Circuit Breaker
Brand
Siemens
SKU
SHJD69200NGTH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

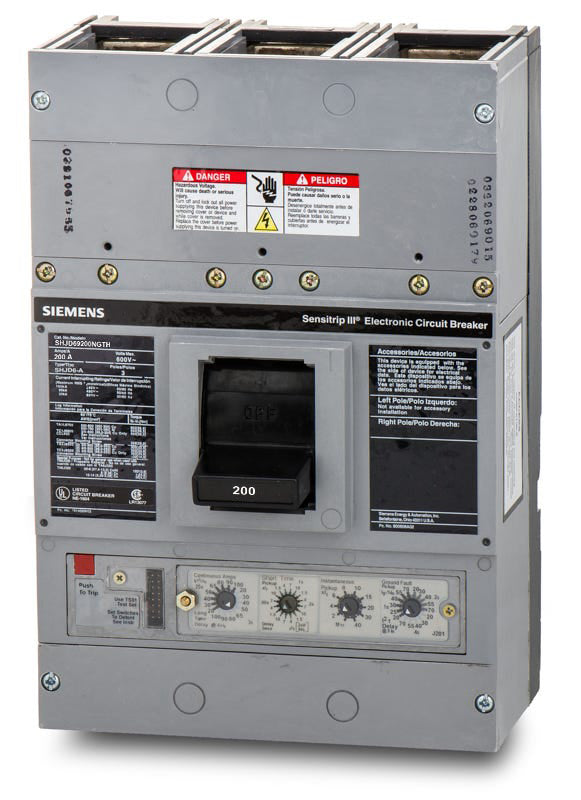

Siemens SHJD69200NGTH - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Designed for demanding industrial environments, this 100% rated 200A Sentron JD-frame breaker delivers comprehensive LSIG (Long-Time, Short-Time, Instantaneous, Ground-Fault) protection. It mounts into Siemens P4 and P5 panelboards, providing robust unit-mount integration for heavy-duty commercial systems. The microprocessor-based solid-state trip unit ensures highly accurate fault sensing and configurable coordination, backed by a high interrupting capacity of 65kAIC at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SHJD69200NGTH |
| Series | SHJD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 40-200A |
|---|
| Frame Type | SJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Trip-Free Mechanism, 100% Rated |
Product FAQs
5 answersCan the SHJD69200NGTH be wired for reverse feed applications?
No. While standard SJD6 frames are approved for reverse connection, the high-interrupting SHJD6 series is not acceptable for reverse feed applications.
Which panelboards are compatible with the SHJD69200NGTH?
This unit is designed for Siemens P4 and P5 panelboards, as well as Siemens switchboards. When using the appropriate branch mounting kit, it requires 8.75 inches of unit space.
Do I need additional components to use this breaker on a 4-wire system?
Yes. Out of the box, this device is configured for 3-phase, 3-wire systems. To properly use the ground fault protection on a 3-phase, 4-wire system, you must install an external neutral sensing transformer.
What do the NGT and H suffixes indicate in the SHJD69200NGTH catalog number?
In the Sensitrip solid-state catalog logic, the NGT suffix designates the adjustable trip functions, meaning it includes Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) settings. The final H suffix indicates that the circuit breaker is 100-percent continuous rated.
Is performance testing required for the ground fault protection on this breaker?
Yes. The National Electrical Code requires that a simulated low-voltage, high-current test be performed on integral ground fault protection systems by qualified personnel during initial installation to ensure proper operation.
