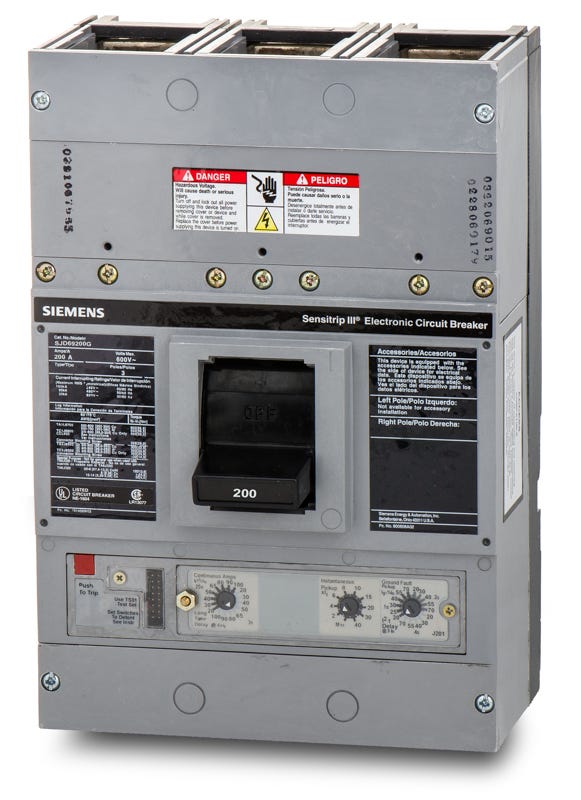

Siemens SJD69200G Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Siemens
SJD69200G
Molded Case Circuit Breaker
Brand
Siemens
SKU
SJD69200G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens SJD69200G - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Delivering integrated ground fault protection, the Siemens SJD69200G is a 3-pole, 200A electronic trip MCCB built for industrial applications requiring true RMS sensing. This JD Frame breaker installs into Siemens Sentron panelboards, switchboards, and motor control centers. It can be replaced by the newer 3VA series using a retrofit kit. The Sensitrip III unit provides adjustable long-time, instantaneous, and ground fault (LIG) settings. It is rated 35kAIC at 480VAC and supports reverse feed.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SJD69200G |
| Series | SJD6 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 40-200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Neutral Sensing Transformer |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip, True RMS Sensing, HACR Rated |
Product FAQs
5 answersAre lug terminals included with the SJD69200G breaker?
No, lugs are not included with this unit and must be purchased separately. Common compatible lug kits for Siemens JD frames include the TA2J6500 for aluminum wire or the TC2J6500 for copper wire.
What does the LIG designation mean on this trip unit?
LIG indicates that the electronic Sensitrip unit features adjustable Long-Time, Instantaneous, and Ground Fault protection settings. This allows you to coordinate protection with your specific electrical system needs.
Can the SJD69200G be used in reverse feed applications?
Yes, this specific Sentron series breaker is acceptable for reverse connection applications, meaning power can be fed from either the line or the load side.
What wire size range does this breaker support?
When fitted with standard JD frame lugs like the TA2J6500, the breaker accommodates wire gauges from 3/0 AWG up to 500 kcmil for both copper and aluminum conductors.
Is the SJD69200G interchangeable with older ITE breakers?
Yes, it shares the standard Siemens and ITE JD frame footprint, making it a direct physical replacement for older JD frame breakers in existing panelboards and motor control centers.
