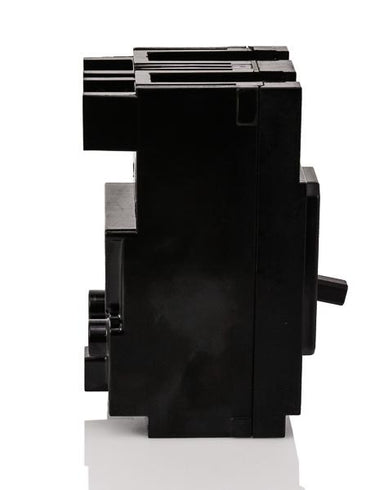

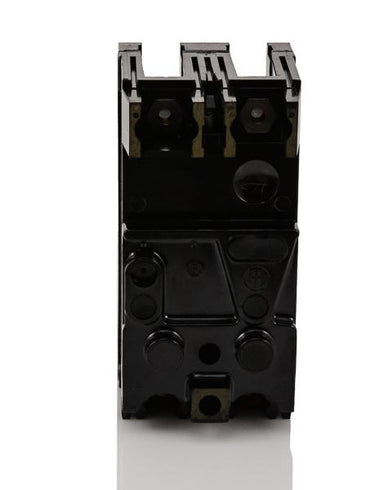

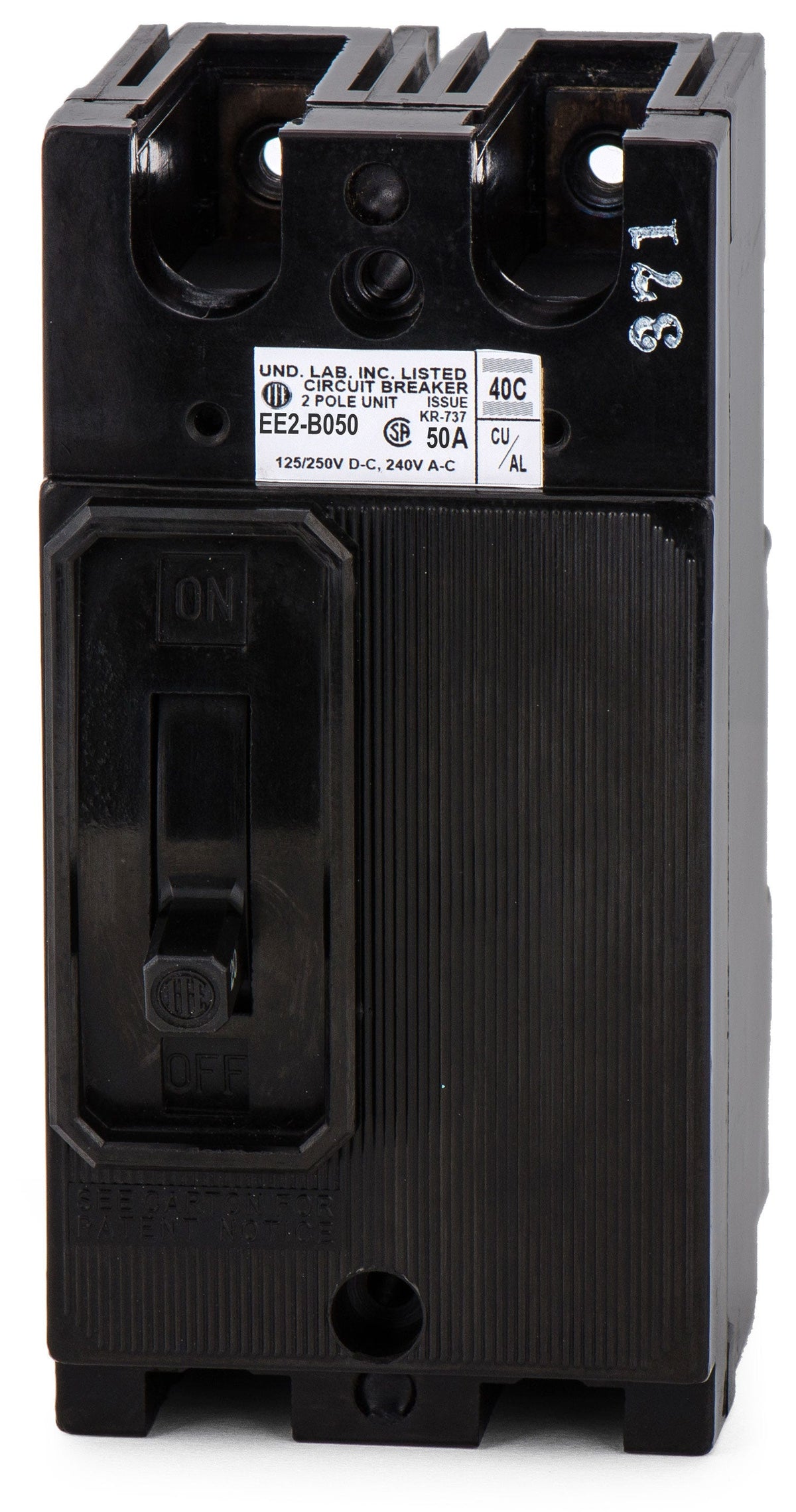

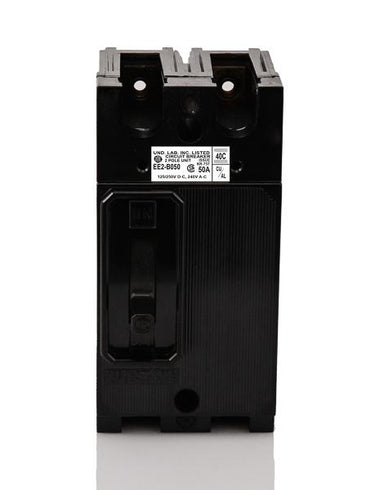

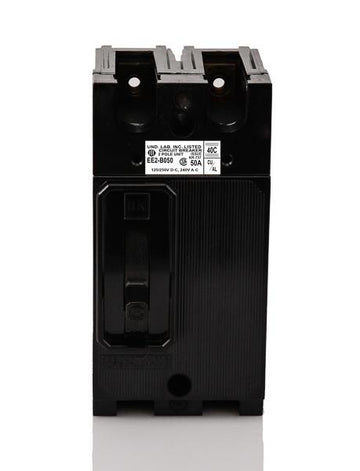

Siemens EE2B050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
EE2B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
EE2B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EE2B050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens EE2B050 is a 50A, 2-pole molded case circuit breaker from the legacy E-Frame family. It provides standard thermal-magnetic protection for branch circuits. This bolt-on unit installs into classic ITE and Siemens Sentron panelboards, making it an essential component for maintaining existing infrastructure. Note that this specific model has been superseded by the ED22B050.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EE2B050-R |
| Series | EE |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | EE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens EE2B050?
The EE2B050 is designed for installation in classic ITE panelboards and Siemens Sentron panelboards. It requires a bolt-on connection to the panel bus.
Has the Siemens EE2B050 been replaced by a newer model?
Yes, the legacy EE2B050 E-Frame breaker has been superseded by the Siemens ED22B050. The ED22B050 is the recommended direct replacement for maintaining existing Sentron and ITE panelboard infrastructure.
What wire sizes and materials are accepted by the EE2B050 terminals?
The included load side lugs are rated for both copper and aluminum conductors, accepting wire gauges from 14 AWG up to 1/0 AWG.
What type of protection does the thermal-magnetic trip unit provide on the EE2B050?
The fixed thermal-magnetic trip unit provides standard LI (Long-Time and Instantaneous) protection. The thermal component protects against sustained overloads, while the magnetic component trips instantaneously during short circuits.
How is the Siemens EE2B050 installed into a panelboard?
This breaker utilizes a bolt-on connection. It must be mechanically fastened directly to the panelboard bus bars, which provides a highly secure connection suitable for commercial and industrial environments.
Is it safe to install the EE2B050 in a system with an available fault current above 10kA?
No. The EE2B050 has a maximum interrupting rating of 10kAIC at 240VAC. Installing it in a system with a higher available fault current violates safety standards and can result in catastrophic breaker failure during a short circuit.
