Siemens BA115AF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
BA115AF
AFCI Miniature Circuit Breaker
Brand
Siemens
SKU
BA115AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

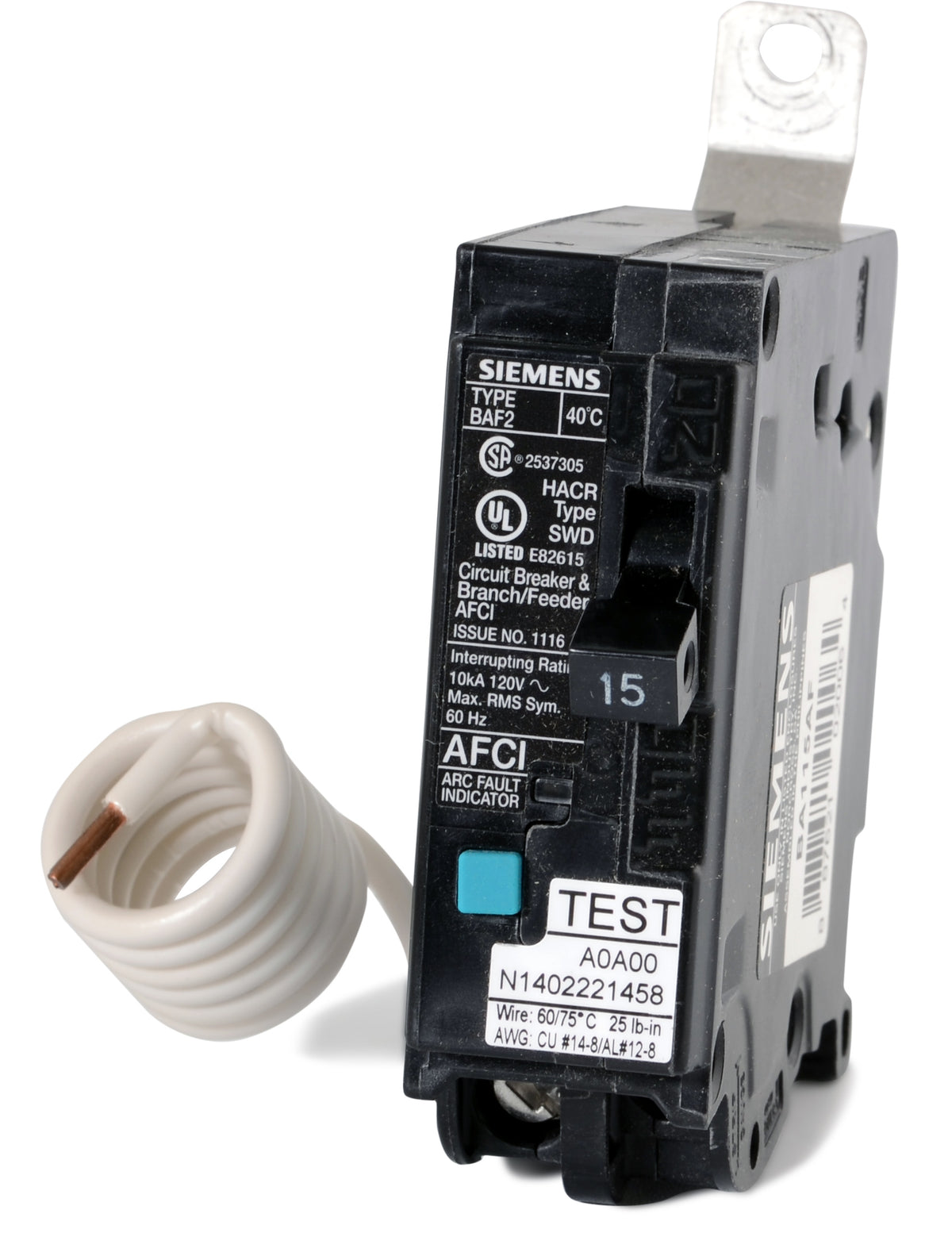

Siemens BA115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Built for residential, commercial, and industrial use, the Siemens BA115AF delivers 15A of branch/feeder arc fault protection. This 1-pole, 120VAC breaker features a 10kAIC rating and a reliable thermal-magnetic trip mechanism. It includes a pigtail neutral for straightforward wiring and bolts into Siemens P1, P2, and P3 panelboards. As an SWD and HACR rated device, it is well-suited for switching fluorescent lighting loads while meeting strict UL 1699 safety standards.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BA115AF |
| Series | BA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Branch/Feeder Arc Fault Protection, HACR Rated, SWD Rated |
Product FAQs
5 answersWhich panelboards are compatible with the BA115AF?
This bolt-on breaker is designed specifically for use in Siemens P1, P2, and P3 commercial panelboards. It will not fit standard residential load centers, which require plug-on style breakers.
Is the BA115AF a combination type or branch/feeder AFCI?
The BA115AF is a branch/feeder type Arc Fault Circuit Interrupter (AFCI) that detects line-to-ground and line-to-neutral arcs. If your local code requires a combination type AFCI, you will need the updated B115AFC model instead.
How is the neutral connected on the BA115AF?
This breaker features a standard pigtail neutral wire that must be connected directly to the panel neutral bus bar for the arc fault protection circuitry to function properly.
Is the BA115AF rated for switching fluorescent lighting or HVAC equipment?
Yes, the BA115AF is both SWD (Switching Duty) rated for 120VAC fluorescent lighting applications and HACR rated for use with heating, air conditioning, and refrigeration equipment.
What is the plug-on equivalent to the BA115AF?
The BA115AF is a bolt-on breaker for commercial panelboards. The plug-on equivalent for standard residential load centers is the QA115AF.
