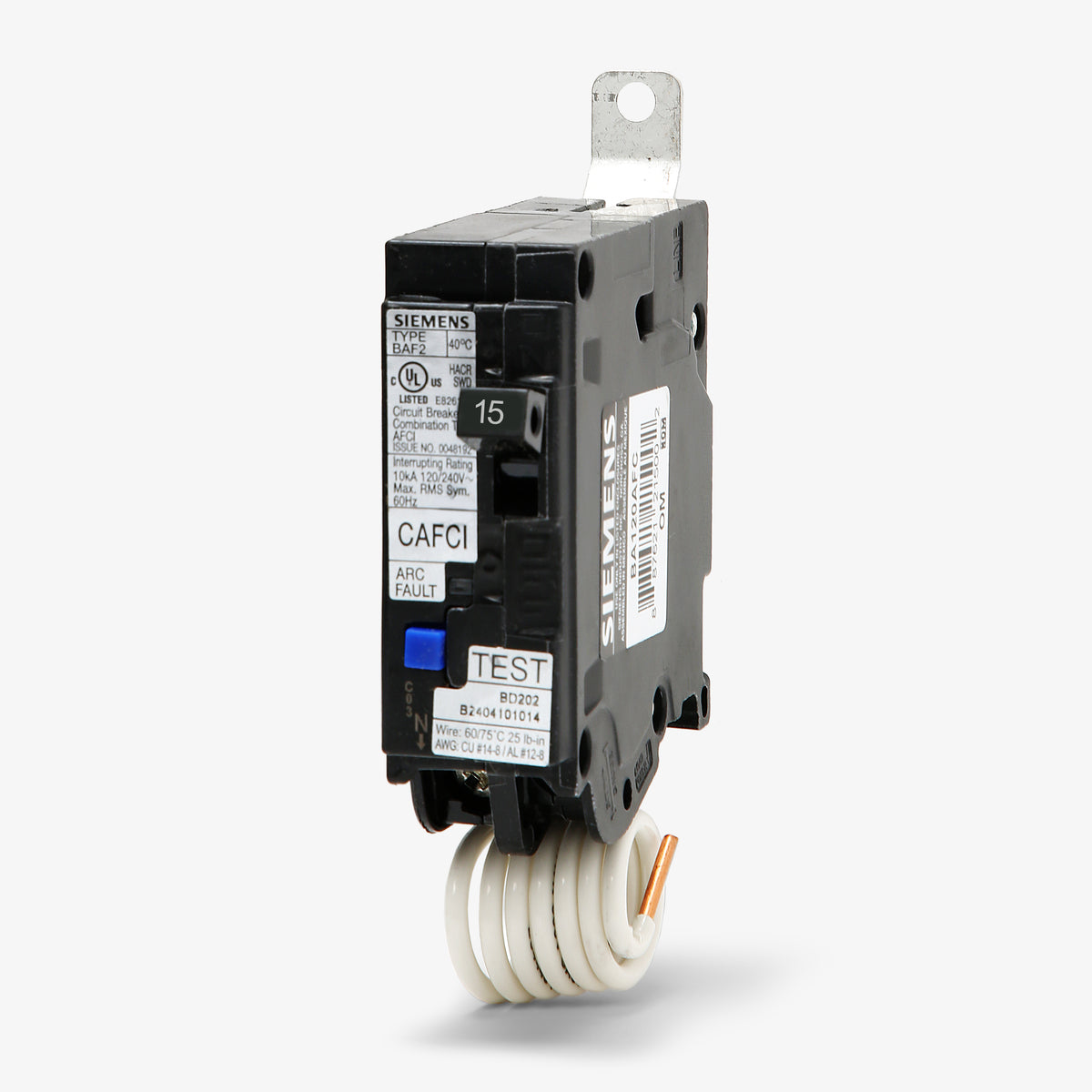

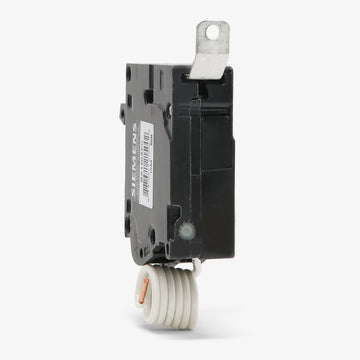

Siemens BA115AFC AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
BA115AFC
AFCI Miniature Circuit Breaker
Brand
Siemens
SKU
BA115AFC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BA115AFC - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Engineered to detect both high-energy parallel and low-energy series arcing faults, the Siemens BA115AFC delivers reliable combination AFCI protection. Rated for 15A at 120VAC with a 10kAIC interrupting capacity, this 1-pole breaker features a convenient LED trip indicator for fast troubleshooting. It installs securely into Siemens P1, P2, and P3 panelboards and includes a pigtail neutral. The unit serves as a direct upgrade for the legacy BA115AF model to meet modern NEC requirements.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BA115AFC |
| Series | BA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Combination Type AFCI, LED Trip Indicator, HACR Rated, SWD Rated |
Product FAQs
6 answersWhat panelboards are compatible with the BA115AFC circuit breaker?
The BA115AFC is a bolt-on branch breaker designed for use in Siemens P1, P2, and P3 panelboards.
Does the BA115AFC replace older Siemens AFCI breakers?
Yes, the BA115AFC is a direct replacement and upgrade for the legacy BA115AF model, providing modern combination-type arc fault protection.
What type of arc fault protection does the BA115AFC provide?
This breaker is a Combination Type Arc Fault Circuit Interrupter (CAFCI). It is engineered to detect both high-energy parallel arcing faults and low-energy series arcing faults to help prevent electrical fires.

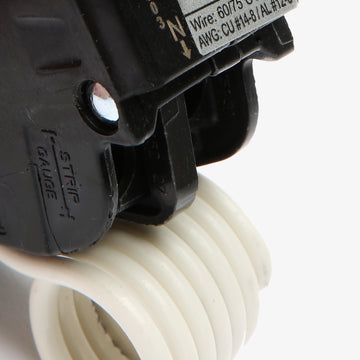

How is the neutral connection made on the BA115AFC?
This breaker features a pigtail neutral. The pigtail wire must be connected directly to the panelboard neutral bus bar for the arc fault protection circuitry to function properly.
What is the recommended torque specification for the load terminals on the BA115AFC?
The load-side lug terminals on this breaker should be torqued to 25 lb-in during installation.
Does the BA115AFC include diagnostic features for troubleshooting?
Yes, this breaker features an LED trip indicator to help electricians quickly identify the cause of a fault during troubleshooting.
