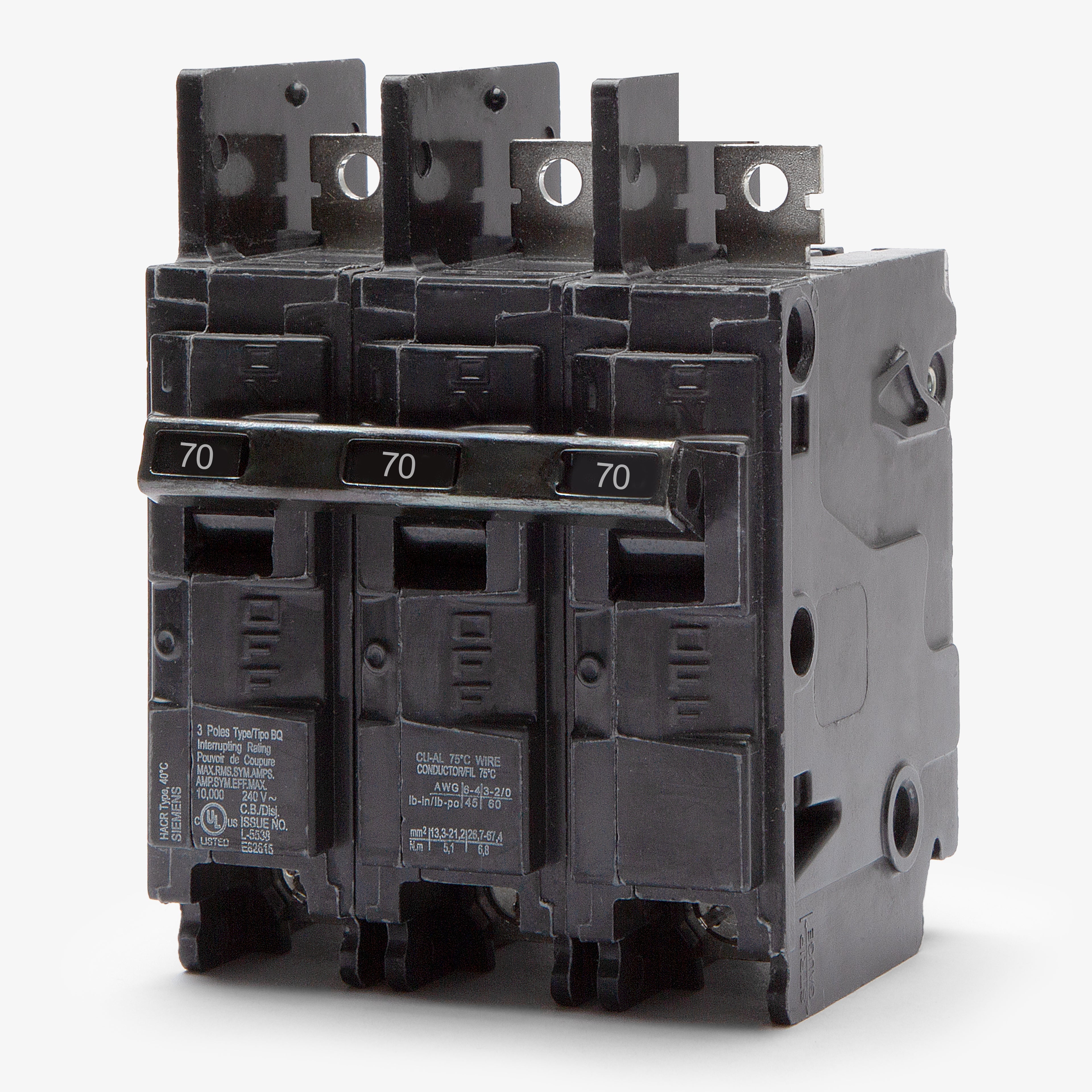

Siemens BQ3B070H - 70A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ3B070H
5.0
Rated 5.0 out of 5 stars
1 Review
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens BQ3B070H - 70A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ3B070H
5.0
Rated 5.0 out of 5 stars
1 Review
Select Item Condition
Earn 199 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens BQ3B070H - 70A 3 Pole Molded Case Circuit Breaker

New

$199.97 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for demanding commercial environments, the Siemens BQ3B070H is a 70A, 3-pole molded case circuit breaker providing thermal-magnetic protection. It operates on 240VAC systems and features a common trip mechanism to ensure all poles open simultaneously during a fault. The breaker installs into Siemens modular meter centers and is fully compatible with legacy ITE panelboards. With a 22kAIC high interrupting rating, this bolt-on MCCB safely handles severe short-circuit conditions.

Specifications

Brand Siemens
Series BQH
Part Number BQ3B070H
Amperage 70A
Voltage 240VAC
Poles 3
Phase 3
AIC Rating 22kA @ 240VAC

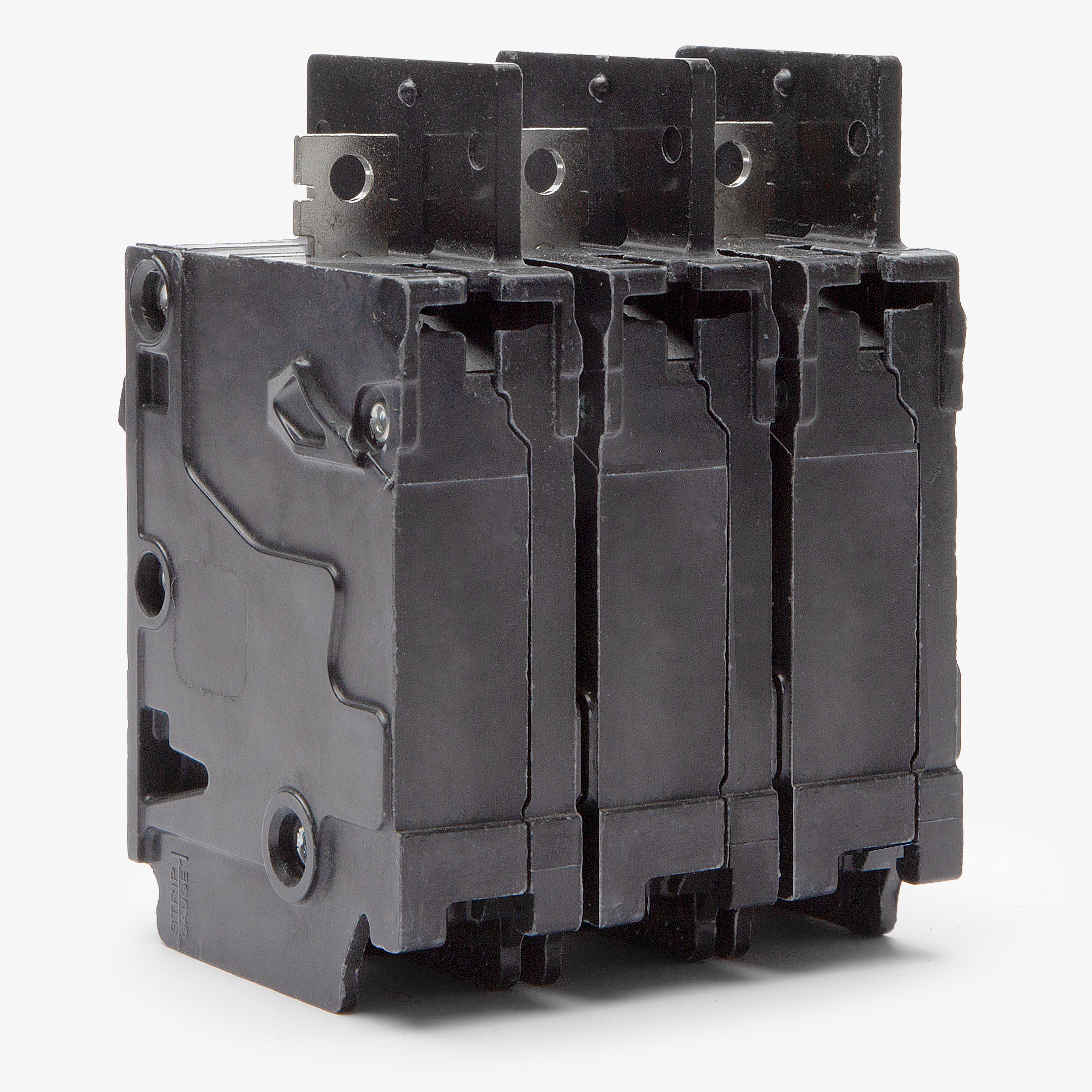

Mounting Style Bolt-On

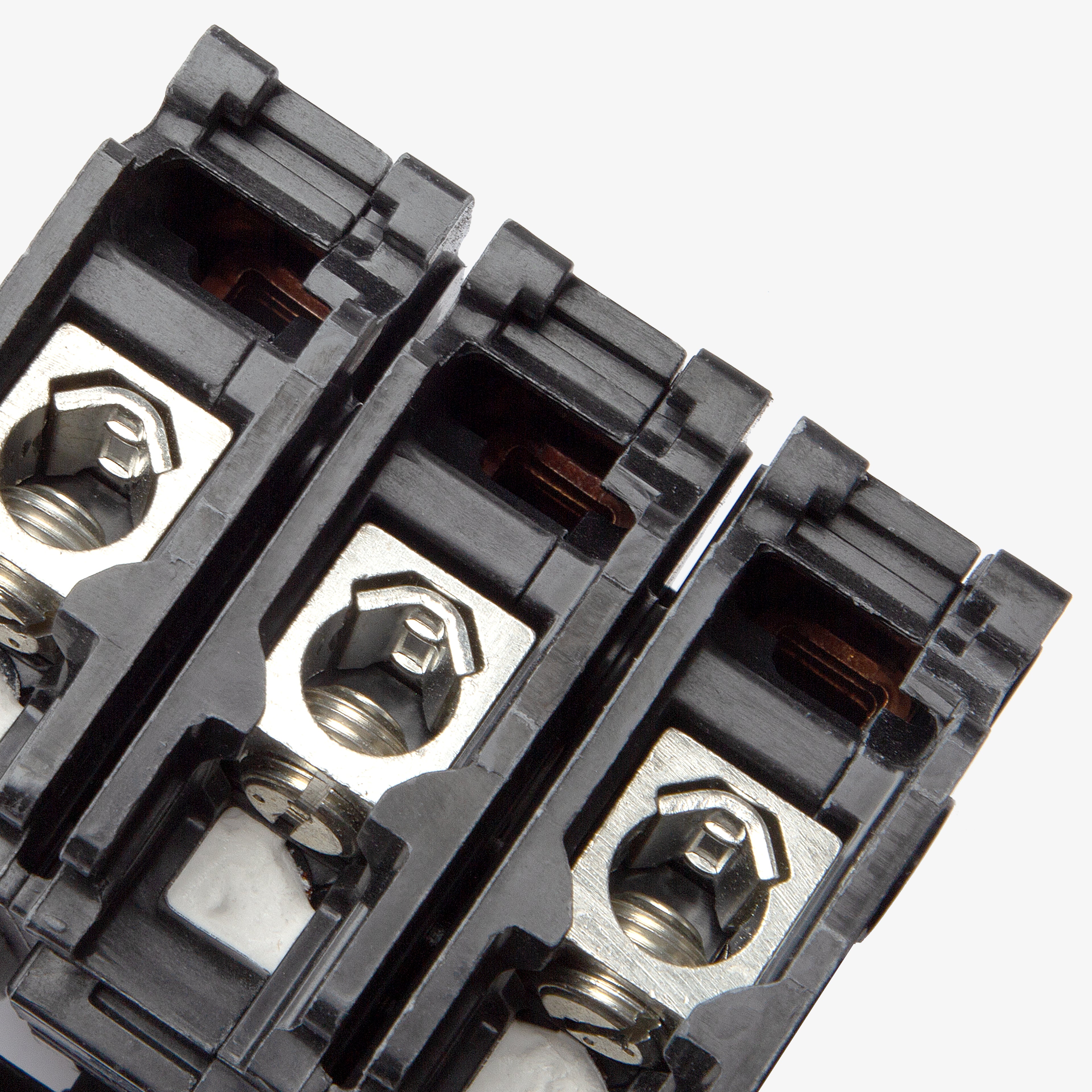

Terminal Type Lugs
For Use With Siemens Modular Meter Centers, Legacy ITE Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 8-1 AWG (Cu), 6-1/0 AWG (Al)
Max Wire 1 AWG (Cu), 1/0 AWG (Al)
Min Wire 8 AWG (Cu), 6 AWG (Al)
Available Options Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity
