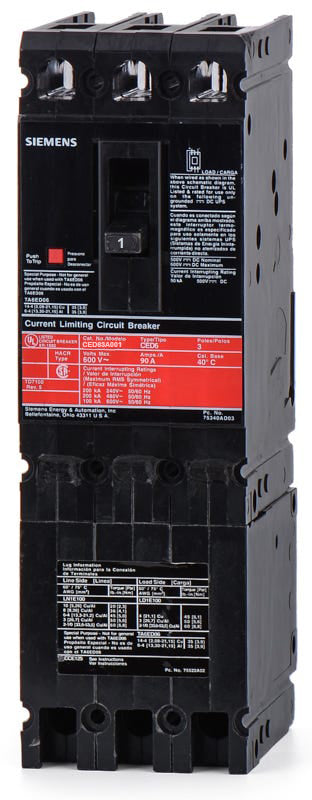

Siemens CED63A001 - 1A 3 Pole Motor Circuit Protector

Brand Siemens
SKU CED63A001
Free Shipping Over $99

Siemens CED63A001 - 1A 3 Pole Motor Circuit Protector

Brand Siemens
SKU CED63A001
Select Item Condition
Earn 1508 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens CED63A001 - 1A 3 Pole Motor Circuit Protector

New

$1508.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Rated for 200 kAIC at 480VAC, this 1A current-limiting motor circuit protector provides exceptional short-circuit defense for industrial applications. It bolts into Siemens Sentron panelboards and motor control centers, offering dedicated magnetic-only protection for motor branch circuits. The ETI device features an adjustable instantaneous trip range of 2.6 to 9A and reverse feed capabilities, ensuring precise coordination with external overload relays and motor starters.

Specifications

Brand Siemens
Series CED6
Part Number CED63A001
Amperage 1A
Amperage Range 2.6-9A
Voltage 240VAC, 480VAC, 600VAC, 500VDC
Poles 3
Phase 3
AIC Rating 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 30kA @ 500VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens Sentron Panelboards, Motor Control Centers
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 14 - 10 AWG (CU) / 12 - 10 AWG (AL)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Lugs Not Included
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features Current Limiting, Non-Interchangeable Trip, Reverse Feed, Motor Circuit Protector
Special Features Current Limiting
