Siemens Q28000S01 - 80A 2 Pole Miniature Circuit Breaker

Brand Siemens
SKU Q28000S01
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens Q28000S01 - 80A 2 Pole Miniature Circuit Breaker

Brand Siemens
SKU Q28000S01
Select Item Condition
Earn 176 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens Q28000S01 - 80A 2 Pole Miniature Circuit Breaker

New

$176.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

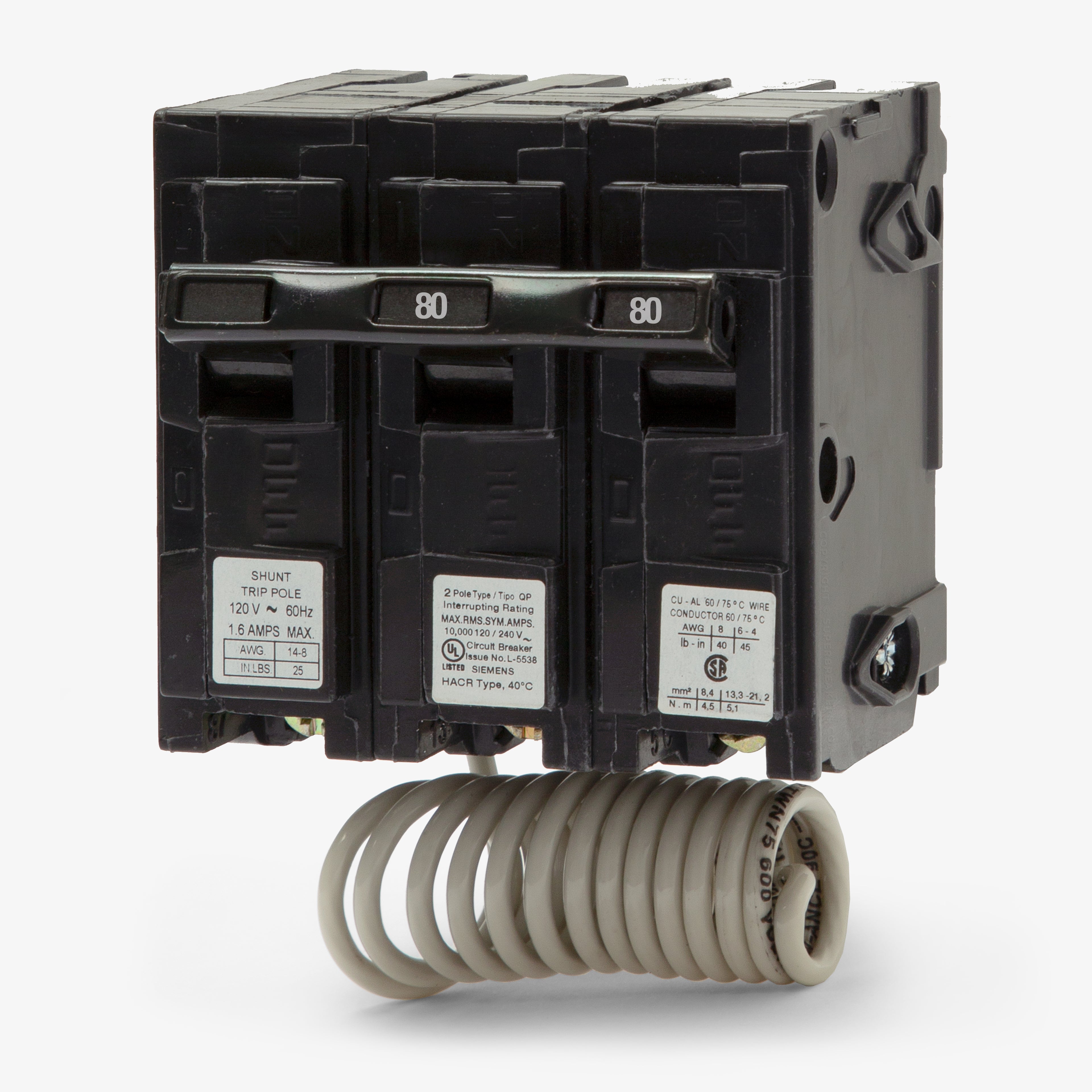

Built for specialized control, the Siemens Q28000S01 is a 2-pole, 80-amp miniature circuit breaker. It includes a factory-installed 120VAC shunt trip mechanism, allowing facility managers and electricians to remotely disconnect power during emergencies or automated shutdowns. This Type QP breaker installs into standard Siemens load centers and panelboards. Because of the attached shunt trip coil, it requires three panel spaces despite being a 2-pole device. Rated for 10 kAIC at 120/240V.

Specifications

Brand Siemens
Series QP
Amperage 80A
Voltage 120/240VAC
Poles 2
Phase 1
AIC Rating 10kA @ 120/240VAC
Mounting Style Plug-On
Terminal Type Lugs
For Use With Siemens Load Centers, Siemens Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 4-1/0 AWG (Cu), 2-1/0 AWG (Al)
Max Wire 1/0 AWG
Min Wire 4 AWG
Available Options Padlock Attachment
Accessories Factory Installed Shunt Trip (120VAC)
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Common Trip
