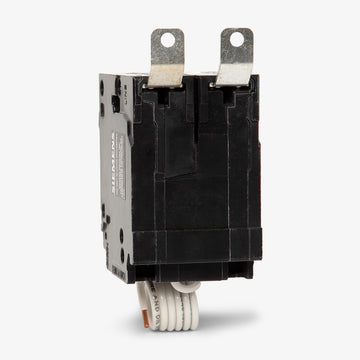

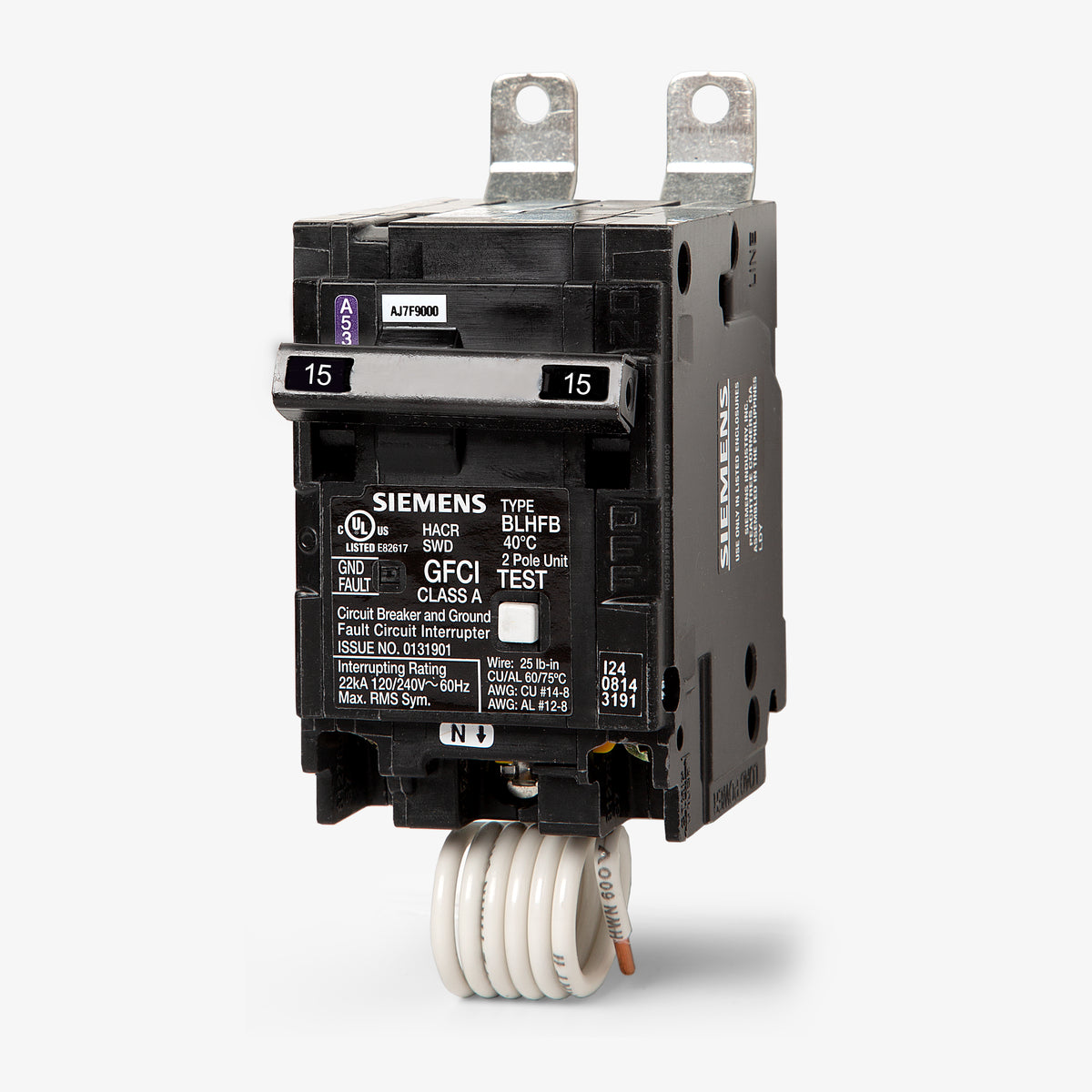

Siemens B215GF GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Quantity
Siemens B215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Description
Engineered to meet strict NEC requirements for wet and damp locations, the Siemens B215GF provides reliable 5mA Class A ground-fault protection. This 15A, 2-pole breaker features a bolt-on mounting style, allowing it to install securely into Siemens P1, P2, P3, P4, and P5 panelboards. Built with thermal-magnetic trip technology and a self-test function, it continuously monitors for leakage current to prevent electrical hazards. It serves as a functional equivalent to QOB215GFI and BAB2015GF.Specifications
| Brand | Siemens |
|---|---|
| Series | BL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens B215GF?
The B215GF is a bolt-on circuit breaker designed specifically for Siemens P1, P2, P3, P4, and P5 commercial panelboards. It cannot be installed in standard plug-on load centers.
Is there a plug-on equivalent to the B215GF?
Yes, the Siemens Q215GF is the plug-on equivalent. The B215GF uses a bolt-on connection for commercial panels, whereas the Q215GF is designed for residential and light commercial plug-on load centers.
What level of ground fault protection does the B215GF provide?
The B215GF provides 5mA Class A ground fault protection. This is designed to protect personnel from electrical shock hazards in wet or damp locations.
How is the neutral connection wired on the B215GF?
The B215GF features a pigtail neutral. The coiled white pigtail wire must be connected directly to the neutral bar of the panelboard for the ground fault circuitry to operate correctly.
What wire sizes are accepted by the B215GF terminals?
The load terminals on the B215GF accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Can the B215GF be used for equipment protection (GFEP)?
No, the B215GF is a 5mA Class A GFCI breaker designed for personnel protection. For 30mA equipment ground fault protection (GFEP), a breaker with an EG suffix is required.
