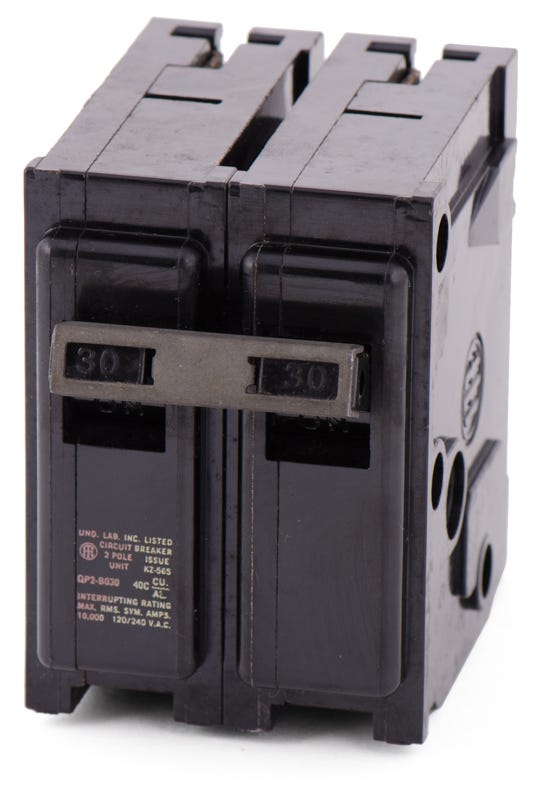

Siemens / ITE QP2B030 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Siemens / ITE
QP2B030
Miniature Circuit Breaker
Brand
Siemens / ITE
SKU
QP2B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE QP2B030 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Description
Built to maintain existing electrical infrastructure, the Siemens QP2B030 is a 2-pole, 30A plug-on circuit breaker. It provides a straightforward, no-adapter solution for legacy ITE, Gould, Murray, and Siemens load centers, making it ideal for 240V applications like water heaters or dryers. Delivering 10kAIC interrupting capacity at 120/240VAC, it utilizes proven thermal-magnetic trip technology. This HACR-rated unit seamlessly replaces the Q230 and MP230, ensuring code-compliant performance.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | QP2B030 |
| Series | QP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, ITE Load Centers, Gould Load Centers, Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Product FAQs
8 answersCan I install the QP2B030 in a Murray load center?
Yes, this breaker is compatible with Murray load centers, as well as Siemens, ITE, and Gould panels that accept plug-on QP series breakers.
Does the QP2B030 replace the Siemens Q230 or Murray MP230?
Yes, the QP2B030 is a direct equivalent to the Siemens Q230 and the discontinued Murray MP230. It provides the same 30A, 2-pole protection and fits the exact same load centers.
What wire sizes are accepted by the lugs on this 30A breaker?
The terminal lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire. Always verify the required torque specification printed directly on the breaker label during installation.
Is the QP2B030 HACR rated for HVAC equipment?
Yes, this thermal magnetic circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 30A, 2-pole breaker.
What applications is this 120/240V breaker suitable for?
The QP2B030 is designed to supply 240V to heavy-draw appliances like water heaters and condensers, or 120/240V to equipment requiring two hot legs and a neutral connection.
Will this breaker fit in older ITE or Gould panels?
Yes, the QP2B030 features a standard plug-on mounting style that is fully backward compatible with legacy ITE and Gould load centers designed for QP series breakers.
How many panel spaces does the QP2B030 require?
As a 2-pole miniature circuit breaker in the QP series, it requires two standard 1-inch spaces in the load center.
What type of protection does the LI trip function provide?
The thermal magnetic trip unit includes Long-Time (L) protection to prevent damage from sustained overloads, and Instantaneous (I) protection to quickly clear severe short circuits.
