Siemens / ITE QP3B070 Miniature Circuit Breaker
- 70A
- 3 Pole
- Plug-On
Quantity

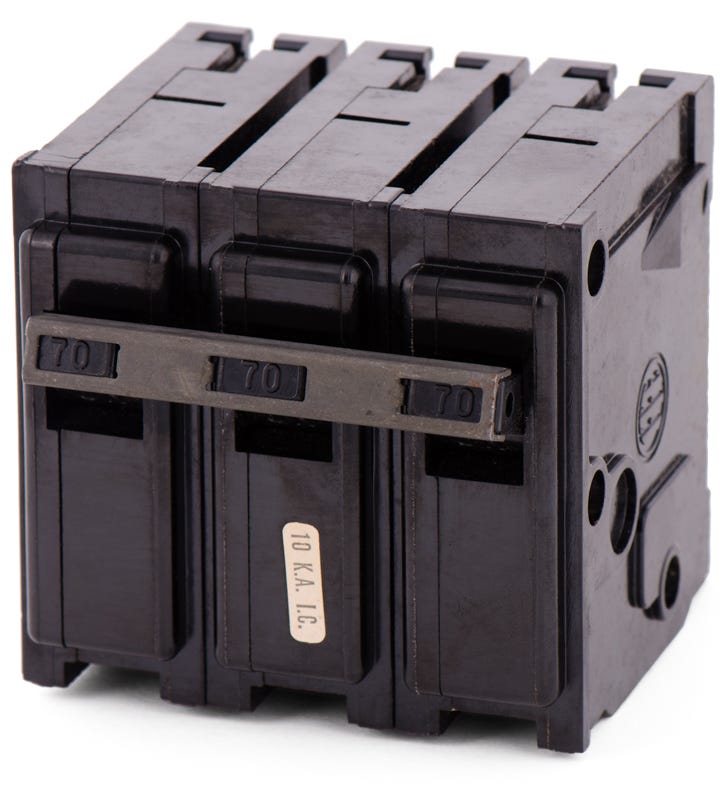

Siemens / ITE QP3B070 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Description
Designed to support three-phase systems, the Siemens QP3B070 is a 3-pole, 70A miniature circuit breaker. It installs effortlessly into legacy ITE, Gould, Murray, and Siemens load centers, offering a reliable replacement option without requiring panel modifications. Rated for 10kAIC at 240VAC, this plug-on unit features fixed thermal-magnetic trip functions for dependable overload and short-circuit defense. It is HACR rated and serves as an exact substitute for Q370 and MP370 breakers.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | QP3B070 |
| Series | QP |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, ITE Load Centers, Gould Load Centers, Murray Load Centers |
| Wire Gauge | 8-2 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat load centers are compatible with the QP3B070?
This breaker installs into Siemens, ITE, Gould, and Murray load centers that accept 3-pole Type QP plug-on circuit breakers.
Can the QP3B070 replace a Q370 or MP370 breaker?
Yes, the QP3B070 serves as an exact substitute for legacy Siemens Q370 and Murray MP370 3-pole 70A circuit breakers.
What are the wire size and material requirements for the QP3B070 terminals?
The standard lug terminals accept 8 AWG through 2 AWG conductors and are rated for both copper and aluminum wiring.
Is the QP3B070 HACR rated?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
What does the LI trip function code indicate on this breaker?
The LI designation means this thermal magnetic breaker provides fixed Long-Time overload protection and Instantaneous short-circuit protection.
