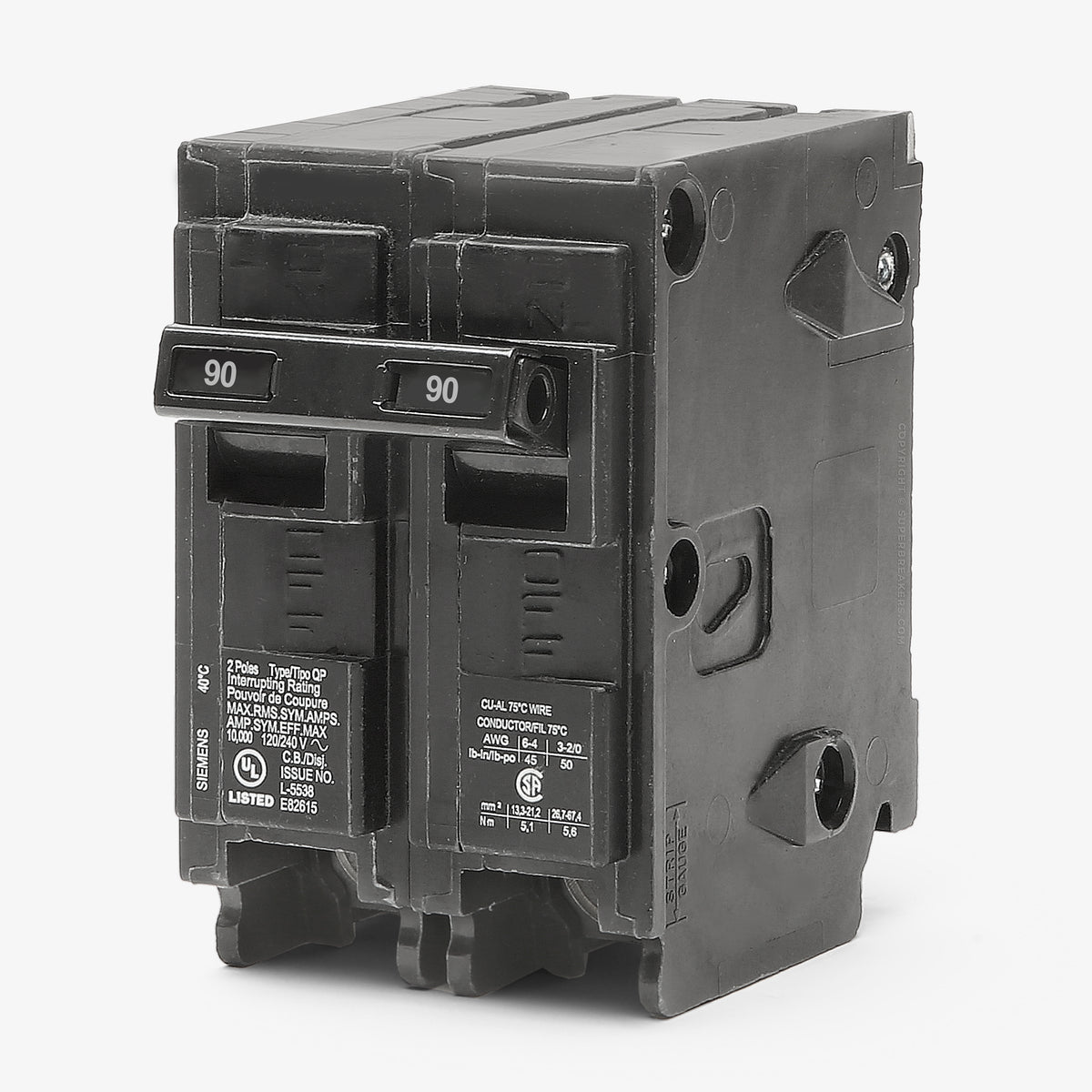

Siemens Q290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Siemens
Q290
Miniature Circuit Breaker
Brand
Siemens
SKU
Q290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Siemens Q290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q290 |
| Series | QP |
| Amperage | 90A |
| Poles | 2 |

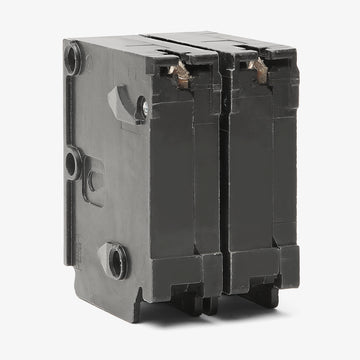

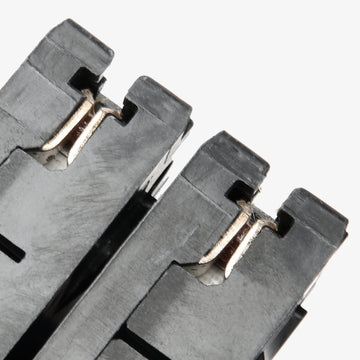

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|

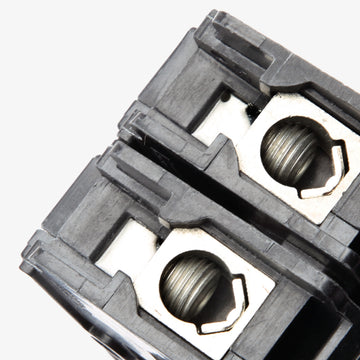

| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens Q290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q290-R |
| Series | QP |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
100A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
Description
The Siemens Q290 is a standard miniature circuit breaker designed for residential and light commercial power distribution. It provides robust thermal-magnetic protection to prevent equipment damage from overloads and short circuits. Featuring a convenient plug-on mounting style, this two-pole 90A breaker installs easily into Siemens load centers. It is also fully cross-compatible, serving as an exact substitute for discontinued Murray MP290 breakers. Rated for 10 kAIC at 120/240V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q290 |
| Series | QP |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat load centers are compatible with the Siemens Q290?
This breaker is designed for use in Siemens PL, ES, and EQ series load centers [1.1.3], as well as Siemens meter combinations and panelboards that accept Type QP plug-on breakers. It is also structurally compatible with older ITE load centers.
Can I install the Q290 in a legacy Murray electrical panel?
Yes. Because Siemens phased out the Murray brand, Type QP breakers are UL listed for use in legacy Murray Rock Solid and meter combo load centers manufactured after January 2002.
What discontinued circuit breakers does the Q290 replace?
The Siemens Q290 is the official direct replacement for the discontinued Murray MP290 (Type MP-T) circuit breaker. It also replaces older ITE Q290 models.
How much panel space does the Q290 require?
As a standard 2-pole Type QP breaker, it occupies two 1-inch spaces, requiring a total of 2 inches of space on the load center bus bar.
Is this breaker approved for HVAC equipment?
Yes, the Q290 is HACR rated, making it suitable and UL approved for use with heating, air conditioning, and refrigeration motor loads.
What is the wire temperature rating requirement for the Q290?
Because this is a 90-amp breaker, it is listed for use strictly with 75 degrees Celsius rated copper or aluminum conductors. Only Siemens breakers 40 amps and below permit 60 degree Celsius wire.
