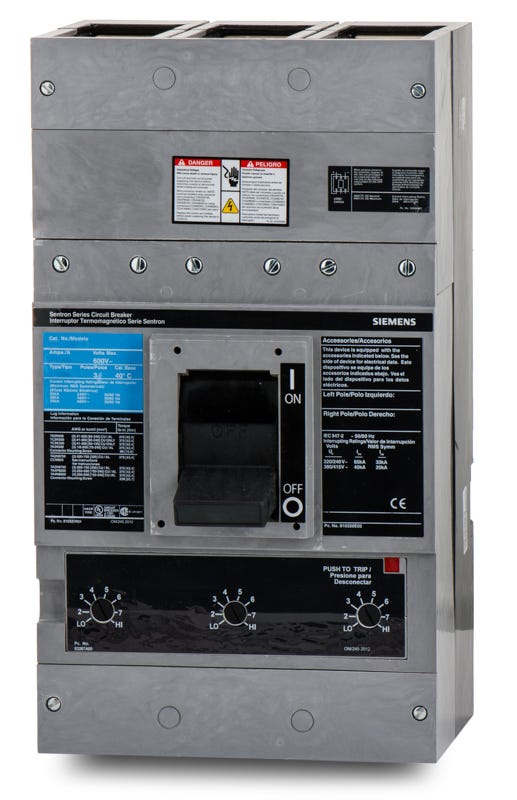

Siemens HPD63F160 Molded Case Circuit Breaker Frame Only
Quantity
Core Specs
See full specs
Siemens HPD63F160 - 1600A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
Description
Built as a 3-pole circuit breaker frame, the Siemens HPD63F160 has a 1600A frame amperage and a 600VAC voltage rating. This Sentron series frame uses the HPD physical frame and Feed-Thru mounting. Interrupting ratings are 50kAIC at 600V and 65kAIC at 480V. It has line and load side lugs, UL and IEC approvals, and measures 9 in wide by 16 in high. This listing is the frame only. A compatible trip unit is required and is not included.Specifications
| Amperage | 1600A |
|---|---|
| Voltage | 480VAC, 600VAC |
| Series | Sentron |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 65kAIC at 480VAC, 50kAIC at 600VAC |
| Mounting Type | Feed-Thru |
|---|---|
| Frame Type | HPD |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 6.19 |
| Width (in) | 9 |
| Height (in) | 16 |
| Wire Gauge | 300-500KCM (Cu/Al) |
| Approval | IEC, UL |
|---|---|
| Temperature Rating | 40C |
| Brand | Siemens |
|---|---|
| MPN | HPD63F160 |
| UPC | 783643226197 |
Product FAQs
6 answersWhat circuit voltage should I use when selecting the Siemens HPD63F160?
The Siemens HPD63F160 circuit breaker frame is rated 600VAC. Use that rating as the upper voltage limit when selecting it for an AC circuit, and check the interrupting rating separately.
How do I evaluate the interrupting rating at 480V versus 600V?
The interrupting rating is 65kAIC at 480V and 50kAIC at 600V. Compare the available fault current at the installation point with the rating for your circuit voltage. The available fault current must not exceed that interrupting rating.
When should I select a three-pole frame?
Choose this three-pole frame when your circuit design requires switching and interruption of three conductors. Pole count guides the number of circuit conductors routed through the breaker.
How much space and handling capacity should I plan for installation?
The frame measures 16 in high, 9 in wide and 6.19 in long, and weighs 54.000000 lb. Use these dimensions for layout planning and the weight when planning safe handling and mechanical support.
How do the UL and IEC approvals guide selection?
The frame has UL and IEC approvals. Use those approvals when selecting equipment for a project with UL or IEC approval requirements.
What conductor material and size should I select for the lug connections?
Select copper or aluminum conductors within the 300 to 500KCM wire range. Use this range when planning conductor connections to the line and load side lugs.
