Siemens HQR22B250L Molded Case Circuit Breaker
- 250A
- 2 Pole
- Unit Mount
Quantity

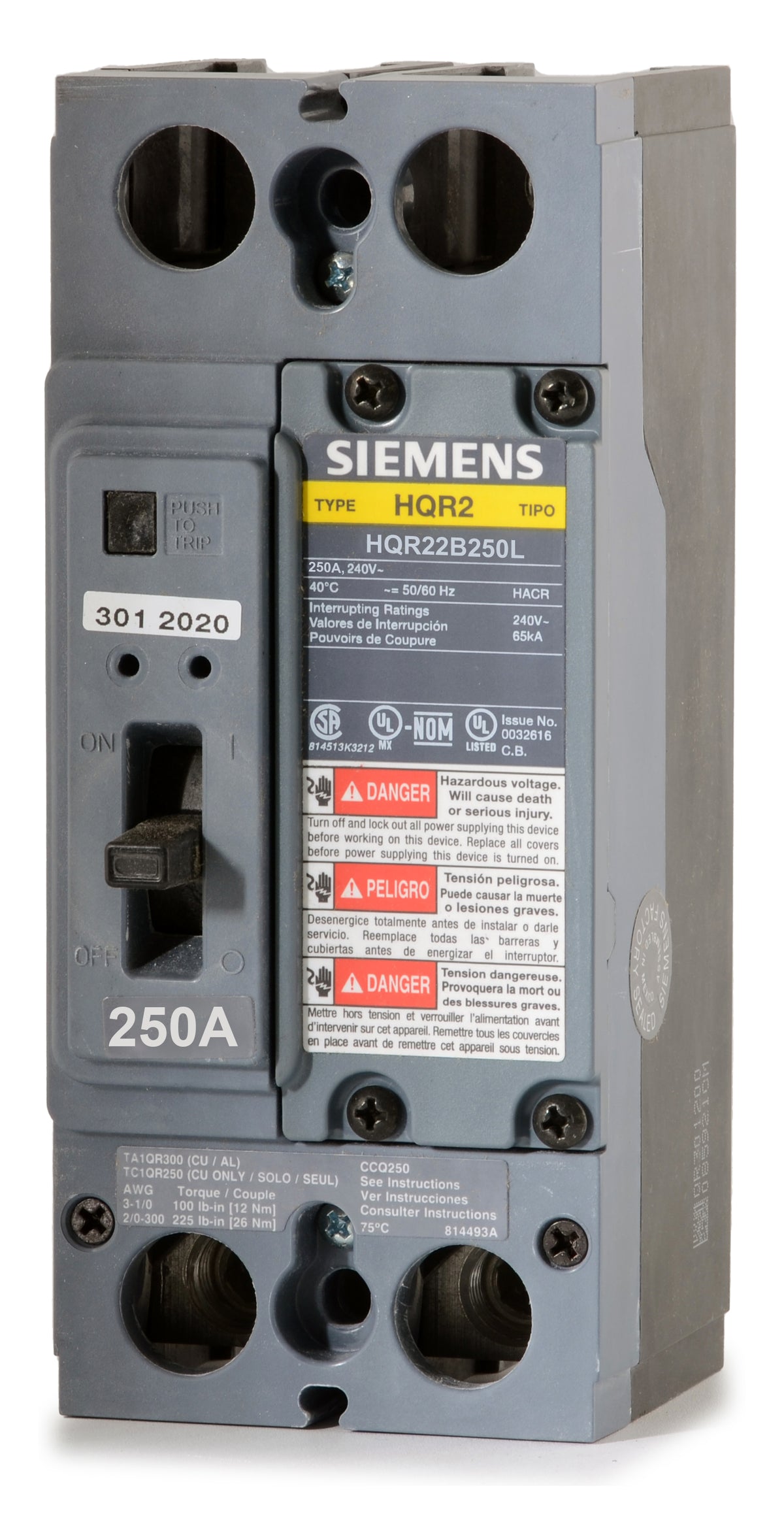

Siemens HQR22B250L - 250A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed to handle heavy electrical loads, this 250-amp SENTRON series molded case circuit breaker delivers dependable long-time and instantaneous trip functions. The unit-mount configuration integrates smoothly into Siemens enclosures, switchboards, and meter centers, replacing discontinued QJ22B250L and QJH22B250L models. With a 65kAIC interrupt rating at 240VAC, it features a trip-free mechanism, non-interchangeable trip units, and included line and load lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HQR22B250L |
| Series | HQR |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | HQR2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Enclosures, Switchboards, Meter Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
8 answersWhat is the lug torque specification for the HQR22B250L?
For 3 AWG to 1/0 AWG wire, torque the lugs to 100 in-lbs. For 2/0 AWG to 300 kcmil wire, torque the lugs to 225 in-lbs.
What does the L suffix in the HQR22B250L catalog number indicate?
The L suffix indicates that the breaker is supplied with both line and load side lugs factory installed. Standard models without this suffix are only supplied with load side lugs.
What is the difference between the Siemens QR22B250L and the HQR22B250L?
The primary difference is the interrupting rating. The QR22B250L is rated for 10kA at 240VAC, while the HQR22B250L is a high-interrupting version rated for 65kA at 240VAC.
Can the HQR22B250L be reverse fed?
Yes, this breaker features a cable-in, cable-out design and is suitable for reverse feed applications.
Does this 2-pole breaker accept internal accessories?
Yes, the 2-pole HQR2 frame includes one accessory pocket for field-installable internal accessories like a shunt trip or auxiliary switch.
What is the standard calibration temperature for the HQR22B250L?
This breaker is calibrated for use in a 40 degrees Celsius ambient temperature. Operating the breaker in higher ambient temperatures will require derating.
Does the HQR22B250L include a push-to-trip feature?
Yes, it includes a push-to-trip button on the face of the breaker to manually test the mechanical tripping mechanism.
Can the HQR22B250L be used to replace older QJ frame breakers?
Yes, the QR frame series shares the same form factor and mounting footprint as legacy QJ breakers, making it suitable for direct retrofits in existing Siemens panelboards and switchboards.
