Siemens KM3S800 Molded Case Switch
Quantity
Core Specs
See full specs

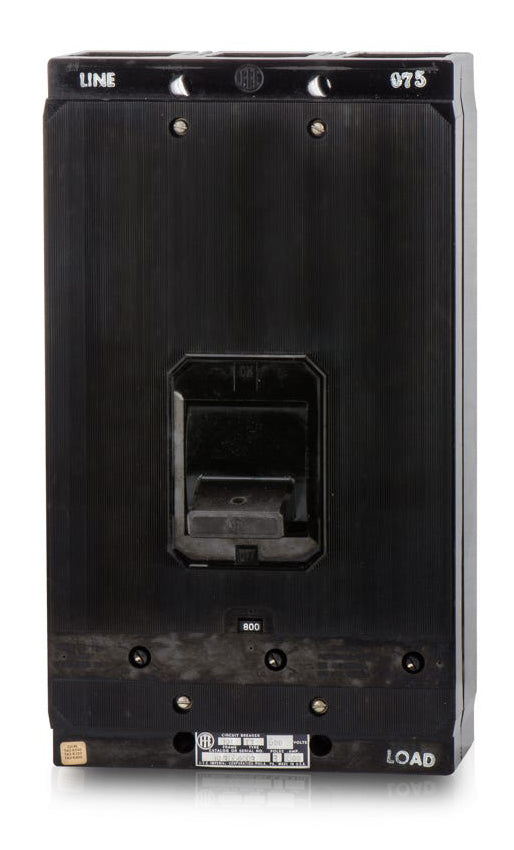

Siemens KM3S800 - 800A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Operating as a dedicated disconnect, the Siemens KM3S800 is a 3-pole, 800A molded case switch. Rated for 600VAC, this non-automatic unit provides manual circuit isolation without thermal overcurrent protection. The bolt-on design is compatible with Siemens P4, P5, S4, and S5 panelboards, plus motor control centers. It can be replaced by the HMD63S800 using a mounting kit. It features a rugged trip-free mechanism and magnetic-only architecture to ensure safe maintenance switching.Specifications
| Brand | Siemens |
|---|---|
| Part Number | KM3S800 |
| Series | KM |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | KM |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5, S4, S5 Panelboards, SB1, SB2, SB3 Switchboards, Motor Control Centers |
| Wire Gauge | 3 Cables: 250-500 kcmil (Cu/Al) OR 2 Cables: 500-750 kcmil (Cu/Al) |
| Max Wire | 750 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Trip-Free Mechanism |
