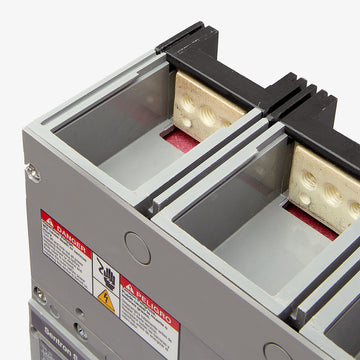

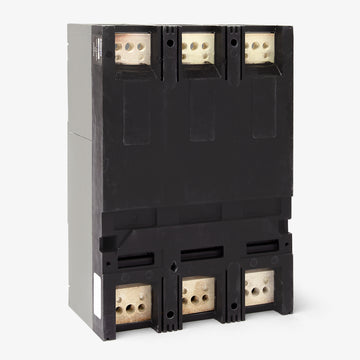

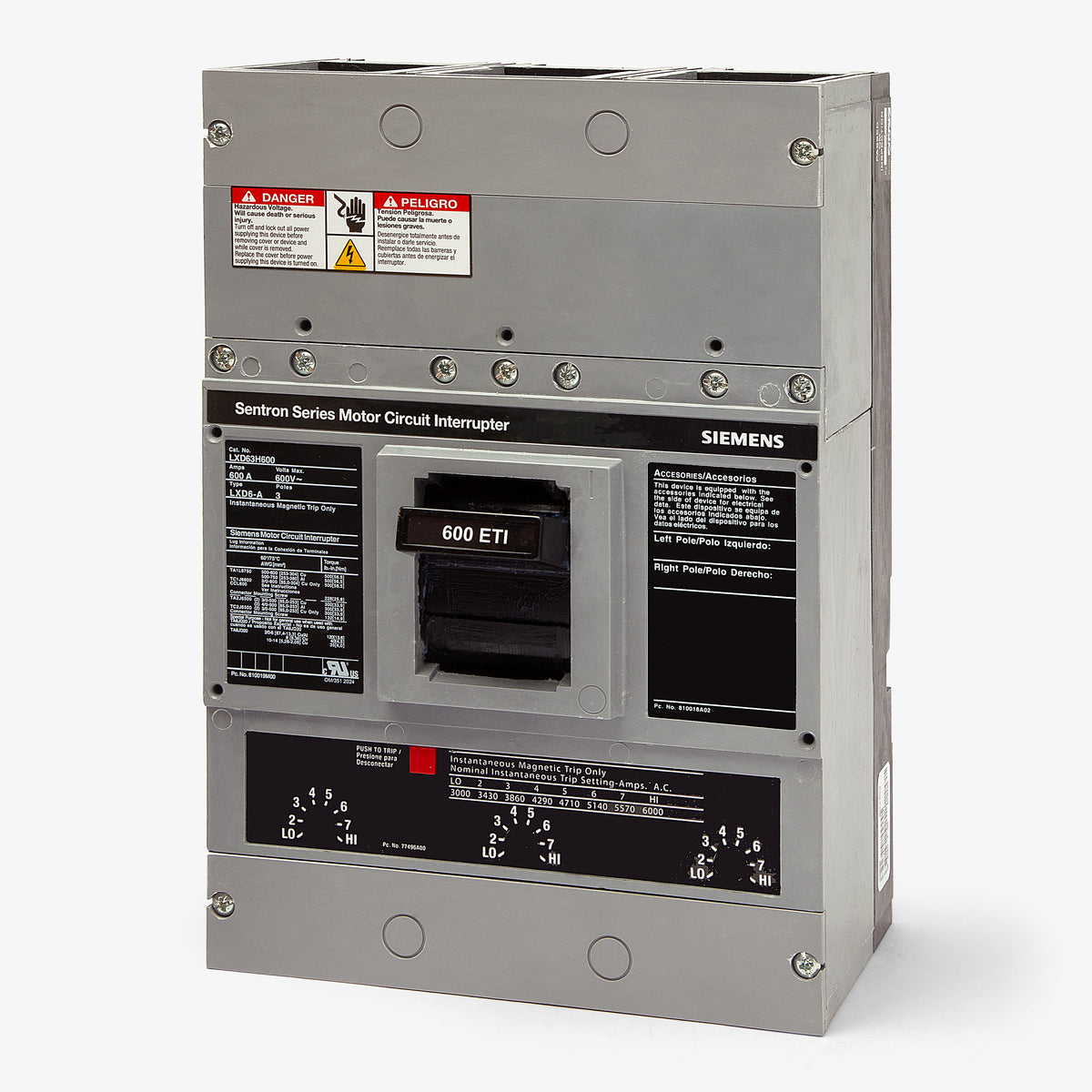

Siemens LXD63H600L Motor Circuit Protector
- 600A
- 3 Pole
- Unit Mount
Quantity
Siemens LXD63H600L - 600A 3 Pole Motor Circuit Protector
New
Quantity
Description
Part of the Sentron LD frame family, this 600-amp magnetic-only motor circuit protector delivers reliable short-circuit defense for industrial motor applications. It installs into motor control centers and starters, providing a high adjustable instantaneous trip range of 3000 to 6000A. The unit comes factory-equipped with TA2J6500 line and load lugs for immediate wiring. Rated for 65kA at 240V, it coordinates seamlessly with external overload relays to ensure complete motor branch protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LXD63H600L |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 3000-6000A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Motor Control Centers, Motor Starters |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|

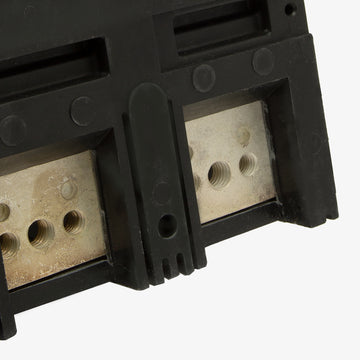

| Accessories | Line and Load Lugs (TA2J6500) |
| Standards | UL 489, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, Non-Interchangeable Trip, Reverse Feed |
