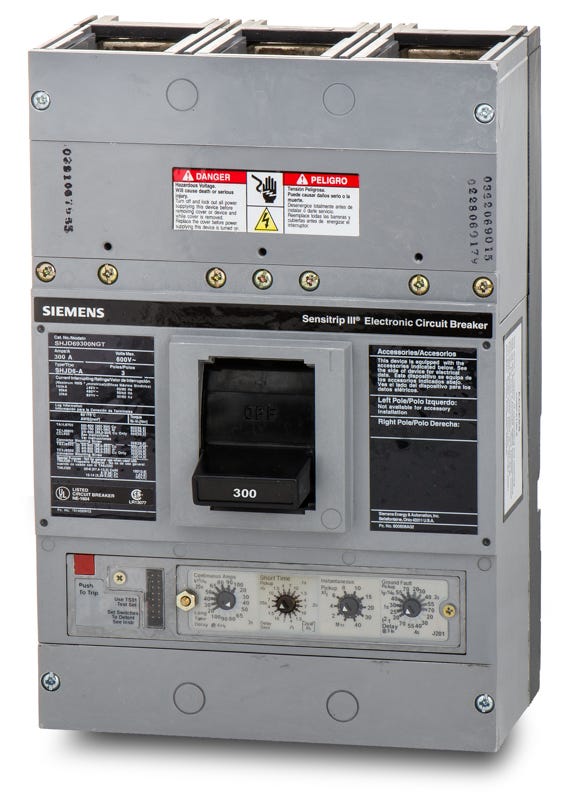

Siemens SHJD69300NGT Molded Case Circuit Breaker
- 300A
- 3 Pole
- Unit Mount
Siemens
SHJD69300NGT
Molded Case Circuit Breaker
Brand
Siemens
SKU
SHJD69300NGT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens SHJD69300NGT - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Designed for complex electrical systems, the Siemens SHJD69300NGT is a 3-pole, 300A Sentron MCCB. It features a Sensitrip solid-state trip unit with comprehensive LSIG protection, allowing adjustments for long-time, short-time, instantaneous, and ground-fault settings. This JD-frame breaker mounts into Siemens Sentron panelboards and SB switchboards. It is an exact substitute for the discontinued SHJD6B300LSIG. Rated 65 kAIC at 480VAC, it provides true RMS sensing for superior accuracy.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SHJD69300NGT |
| Series | SHJD6 |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 60-300A |
|---|
| Frame Type | SJD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (S4, S5, SPP), Switchboards (SB1, SB2, SB3), Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu), 4/0 AWG - 500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
6 answersWhat does the NGT suffix in the SHJD69300NGT catalog number indicate?
The NGT suffix indicates that the Sensitrip solid state electronic trip unit includes Long Time, Short Time, Instantaneous, and Ground Fault (LSIG) protection functions. The G specifically denotes ground fault protection configured for 3-phase, 3-wire systems.
Can I use the SHJD69300NGT on a 3-phase, 4-wire system?
Yes, but because the G suffix denotes a breaker configured for 3-phase, 3-wire systems, you must order the correct 4th wire neutral sensor transformer separately to provide accurate ground fault protection on a 4-wire system.
Is the SHJD69300NGT suitable for reverse feed applications?
No. According to Siemens specifications, SHJD6 high interrupting breakers are not acceptable for reverse connection applications. Only standard SJD6 and current limiting SCJD6 frames are rated for reverse feed.
What equipment is compatible with the SHJD69300NGT breaker?
This JD frame breaker is designed for unit mounting in Siemens Sentron panelboards including S4, S5, and SPP types, as well as SB1, SB2, and SB3 switchboards and Siemens Motor Control Centers.
What wire sizes are accepted by the standard lugs on this breaker?
The standard mechanical lugs accept 3/0 AWG to 500 kcmil copper wire, or 4/0 AWG to 500 kcmil aluminum wire. The lugs are rated for 75 degrees Celsius conductors.
How does the SHJD6 differ from the standard SJD6 frame?
The SHJD6 is the high interrupting capacity version of the SJD frame. While a standard SJD6 breaker has lower short circuit ratings, the SHJD69300NGT provides an elevated interrupting rating of 65kAIC at 480V and 100kAIC at 240V.
