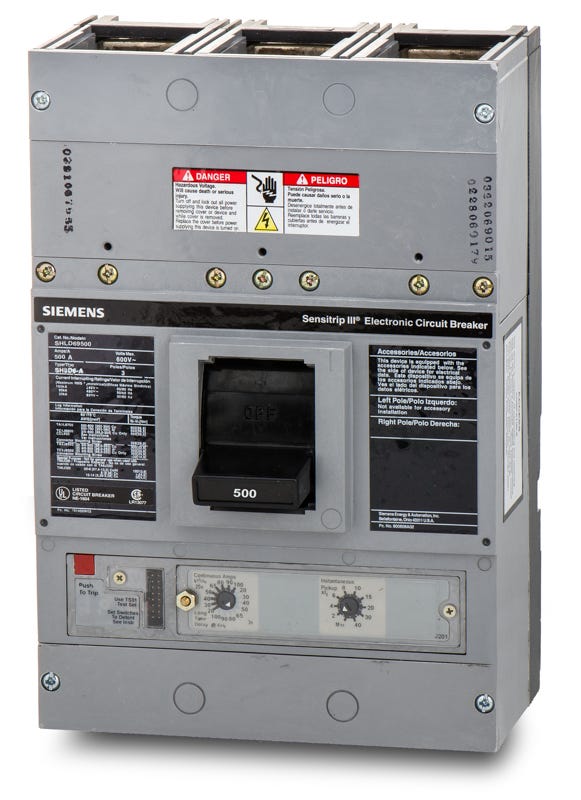

Siemens SHLD69500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Bolt-On
Quantity
Siemens SHLD69500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
The Siemens SHLD69500 is a high-capacity 500A, 3-pole molded case circuit breaker designed for heavy-duty electrical systems. Equipped with a Sensitrip III electronic trip unit, it provides precise Long-Time and Instantaneous (LI) protection. This bolt-on LD frame breaker offers an interrupting rating of 65kAIC at 480VAC. It is engineered for seamless integration into Sentron panelboards, and is replaced by the 3VA6460-6HL31-0AA0 with a retrofit kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SHLD69500 |
| Series | SHLD6 |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 100-500A |
|---|
| Frame Type | SLD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhich Siemens enclosures and panels are compatible with the SHLD69500?
This LD Frame breaker is engineered for installation in Siemens Sentron Panelboards, Switchboards, and Motor Control Centers.
What protection settings are available on the SHLD69500 trip unit?
This breaker is equipped with a Sensitrip III electronic trip unit featuring LI functions. This allows you to adjust both the Long-Time and Instantaneous trip settings for precise circuit protection.
What are the standard lug wire capacity and material ratings for this breaker?
The factory line and load lugs (part number TA2J6500) accommodate two conductors per phase, accepting 3/0 AWG to 500 kcmil copper or aluminum (Cu/Al) wire.
How does the SHLD69500 differ from the HLD69500?
The SHLD69500 utilizes a Sensitrip III solid-state electronic trip unit for adjustable protection, while the HLD69500 relies on a standard thermal-magnetic trip mechanism.
Is there a direct modern replacement for the SHLD69500?
Yes, Siemens replaces this legacy Sentron breaker with the newer 3VA series, specifically catalog number 3VA6460-6HL31-0AA0. Note that installing the 3VA replacement in an existing panel requires a retrofit kit.
