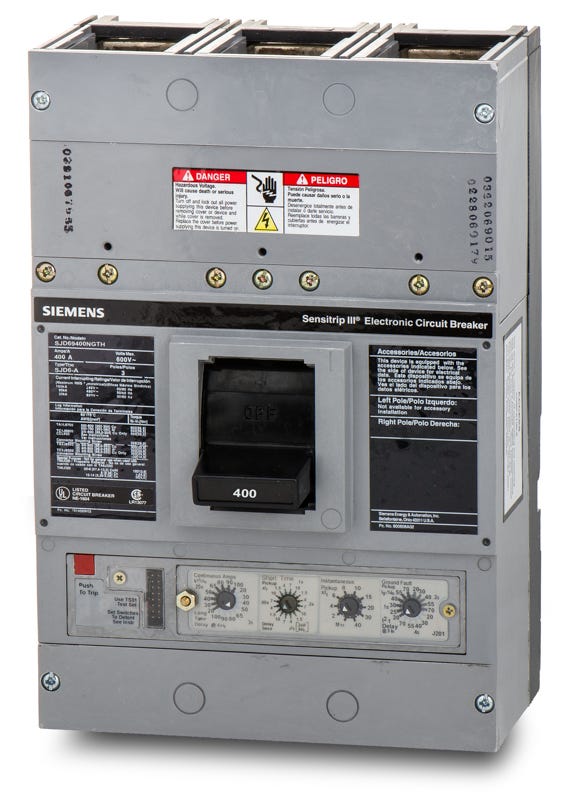

Siemens SJD69400NGTH Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Siemens
SJD69400NGTH
Molded Case Circuit Breaker
Brand
Siemens
SKU
SJD69400NGTH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens SJD69400NGTH - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Built to handle continuous loads, this 400A, 3-pole MCCB carries a 100% rating for maximum efficiency in commercial, industrial, and marine environments. The SJD69400NGTH operates at up to 600VAC. The breaker mounts into Siemens Type P4, P5, and SPP panelboards, as well as standard switchboards. For future upgrades, it crosses over to the 3VA Series with an adapter kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SJD69400NGTH |
| Series | SJD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 80-400A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (Type P4, P5, SPP), Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, Ground Fault Protection, HACR Rated, Reverse Feed, Visual Trip Indicator |
Product FAQs
7 answersWhat equipment is compatible with the SJD69400NGTH circuit breaker?
The SJD69400NGTH is designed for installation in Siemens Sentron Type P4, P5, and SPP panelboards, as well as Siemens switchboards and motor control centers.
Can the SJD69400NGTH be reverse fed?
Yes. Because it is built with a non-interchangeable trip unit, the SJD69400NGTH is UL listed for reverse connection applications.
What protection functions are included in the SJD69400NGTH trip unit?
This breaker features a solid-state electronic trip unit with adjustable LSIG functions. This provides comprehensive protection against long-time overloads, short-time delays, instantaneous short circuits, and ground faults.
What wire size range is supported by the SJD69400NGTH lugs?
When equipped with standard mechanical lugs, this JD-frame breaker accepts copper or aluminum conductors ranging from 3/0 AWG to 500 kcmil.
Can I swap the trip unit on the SJD69400NGTH to change its amperage?
No. The SJD69400NGTH is manufactured with a factory-sealed, non-interchangeable solid-state trip unit. To change the maximum frame rating, the entire breaker must be replaced.
Is the SJD69400NGTH rated for 100 percent continuous operation?
Yes, this breaker carries a 100 percent continuous current rating. When applying this rating, National Electrical Code requires the use of 90 degree Celsius copper wire sized to the 75 degree Celsius ampacity column, along with appropriately rated lugs.
How do I adjust the trip settings on the SJD69400NGTH?
The setting dials on the face of the Sensitrip electronic trip unit are rotary switches. When configuring the long-time, short-time, instantaneous, and ground fault parameters, ensure each dial is properly set to its mechanical detent (click stop) position.
