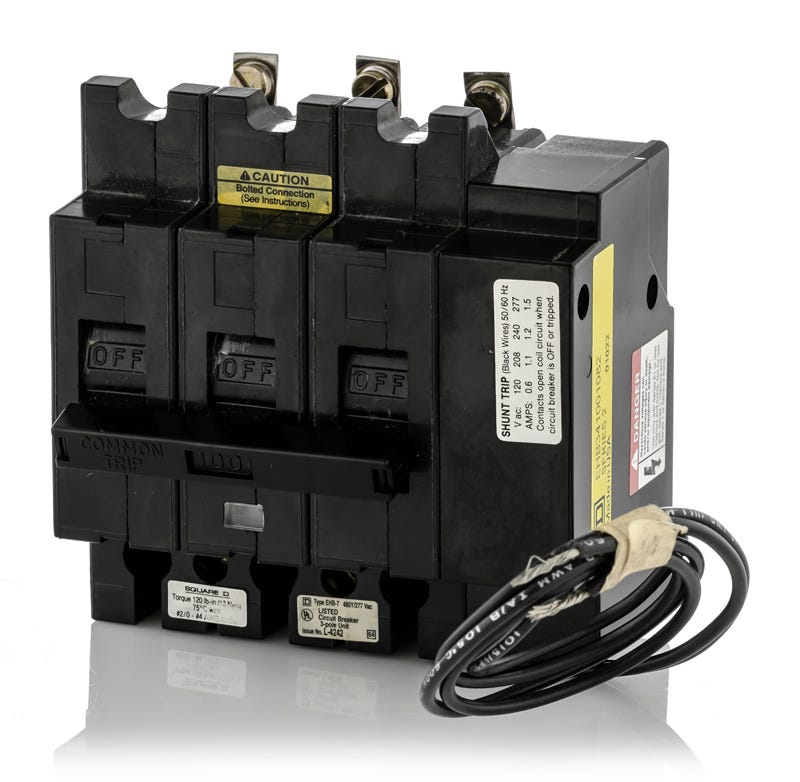

Square D EHB34100-1082 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity
Square D EHB34100-1082 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for advanced control, the Square D EHB34100-1082 is a 3-pole, 100A molded case circuit breaker. It features a factory-installed shunt trip accessory, allowing users to remotely open the circuit for safety or automation. This E-Frame breaker utilizes a bolt-on mounting style specifically designed for legacy Square D NEHB panelboards. Delivering 14kAIC at 480Y/277VAC, this HACR-rated unit provides robust thermal-magnetic protection and includes a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34100-1082 |
| Series | EHB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
7 answersWhich panelboards are compatible with the EHB34100-1082 circuit breaker?
This E-Frame breaker is designed specifically for use in legacy Square D NEHB panelboards. It will not fit in modern NF or NQ series panels.
What does the "-1082" suffix mean on this Square D EHB breaker?
The "-1082" catalog number suffix indicates the inclusion of a factory-installed shunt trip accessory. This allows the breaker to be tripped remotely using a 120V to 277V AC control signal, which is commonly used for emergency shutdown or automation systems.
What type of protection does the LI trip function provide on this breaker?
The LI designation stands for Long-Time and Instantaneous trip functions. The thermal element (Long-Time) protects against sustained overloads, while the magnetic element (Instantaneous) provides immediate tripping during short-circuit faults.
What are the acceptable wire gauges for the terminals on the EHB34100-1082?
The factory lugs are rated to accept 14 AWG to 2/0 AWG copper (Cu) conductors, or 12 AWG to 2/0 AWG aluminum (Al) conductors.
How is this breaker secured inside the panelboard?
The EHB34100-1082 features a bolt-on mounting style. It must be mechanically bolted directly to the busbar of a compatible NEHB panelboard, ensuring a secure connection that resists vibration and thermal expansion.
How do I wire the factory-installed shunt trip on the EHB34100-1082?
The shunt trip accessory comes with factory-routed lead wires that exit the breaker housing. These leads must be connected to an external control circuit providing the appropriate 120V to 277V AC voltage to actuate the remote trip mechanism.
Can I adjust the trip settings on the EHB34100-1082?
No, this breaker features fixed thermal and fixed magnetic trip settings. The trip curve cannot be adjusted in the field.
