Square D FAL32100-1021 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Quantity

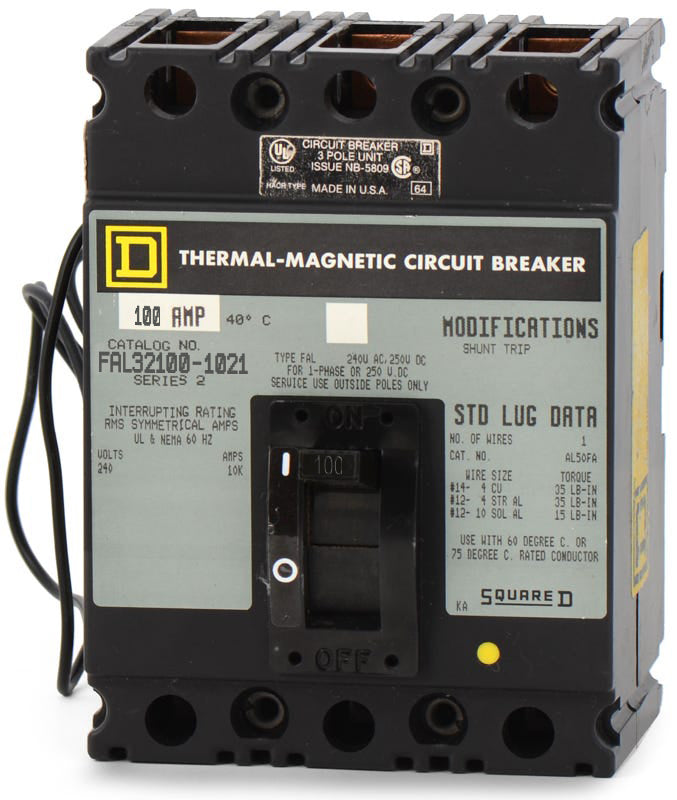

Square D FAL32100-1021 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for advanced control applications, this 100A F-frame molded case circuit breaker integrates a 120-240VAC shunt trip. This allows facility managers to remotely open the circuit for emergency shutdowns. It mounts securely into standard Square D commercial enclosures and switchboards. When transitioning to newer systems, this unit is replaced by the BDL36100 with a shunt trip accessory. Rated for 10kA at 240VAC, it provides reliable thermal-magnetic protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32100-1021 |
| Series | FAL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
8 answersWhat does the -1021 suffix mean on the FAL32100-1021?
The -1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip. This accessory allows for remote tripping of the circuit breaker via an external control signal or emergency stop button.
What enclosures or panels is the FAL32100-1021 compatible with?
This F-frame breaker is designed for unit mounting in compatible Square D commercial enclosures and switchboards. It is bolted directly to the backpan and is not designed to plug onto an I-Line busbar.
What wire sizes are accepted by the lugs on the FAL32100-1021?
The factory-installed lugs on this 100A breaker are dual-rated for copper and aluminum conductors. They accept 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire.
What is the modern replacement for the FAL32100-1021?
The legacy F-frame FAL32100-1021 is obsolete and has been replaced by the PowerPact B-frame series. The direct equivalent is the BDL36100, which requires a field-installable shunt trip accessory to match the -1021 functionality.
Are the trip settings adjustable on the FAL32100-1021?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip points are factory-set and cannot be adjusted in the field.
Does the FAL32100-1021 feature a Visi-Trip indicator?
Yes, this breaker includes Square D's Visi-Trip visual indicator. It displays a highly visible red flag when the breaker has tripped, making it easier to identify faults in a crowded panel.
How is the shunt trip wired on the FAL32100-1021?
The factory-installed 120/240VAC shunt trip includes pigtail leads that exit the side of the breaker. These leads must be connected to your external control circuit to enable remote tripping.
Is the FAL32100-1021 suitable for HVAC applications?
Yes, this F-frame breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
