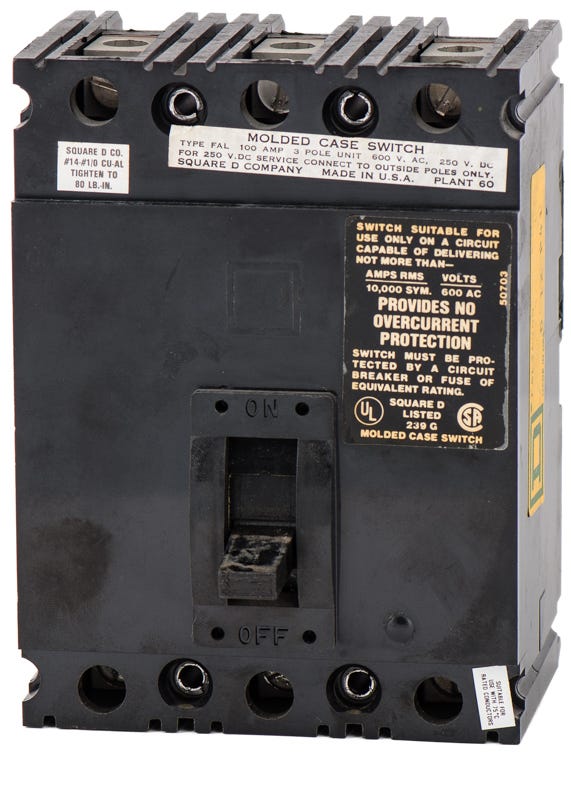

Square D FAL36000 3 Pole Circuit Breaker
Free Shipping Over $99

Square D FAL36000 Automatic Molded Case Switch

Square D FAL36000
Automatic Molded Case Switch
Brand Square D
SKU FAL36000
Select Item Condition
Earn 376 SuperPoints

Quantity

Core Specs

See full specs
Amperage100A
SeriesFAL
Poles3
Mounting StyleUnit Mount
Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D FAL36000 3 Pole Circuit Breaker

Square D FAL36000 - 100A 3 Pole Automatic Molded Case Switch

Re-Certified

$376.19 In Stock

Quantity

Description Specifications SuperClub Warranties Shipping Reviews 5.0 (39)

Description

Engineered to provide safe equipment isolation, this 100A F-frame molded case switch handles demanding commercial environments. It focuses on manual disconnect capabilities rather than standard thermal protection. The unit-mount design integrates smoothly into Square D motor control centers and standalone enclosures. Facility managers utilize this model to maintain existing infrastructure before transitioning to the HGL36000S15.

Specifications

Key specifications
Brand Square D
Part Number FAL36000-R
Series FAL
Amperage 100A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Fit and installation
Frame Type FAL
Terminal Type Lugs
For Use With Square D Enclosures, Switchboards, Motor Control Centers
Wire Gauge 14-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Protection and operation
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Fixed
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Line and Load Lugs Included
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, UL, IEC
Temp Rating 40C
Construction Features Molded Case Switch
