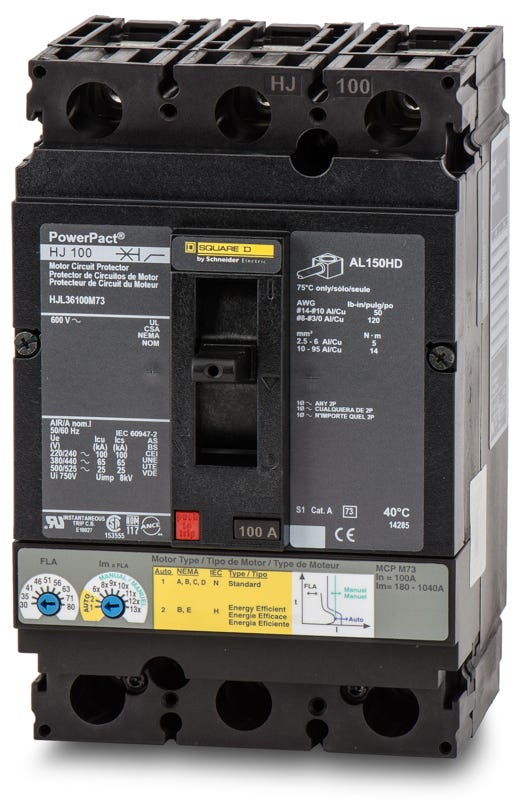

Square D HJL36100M73 Motor Circuit Protector
- 100A
- 3 Pole
- Unit Mount
Quantity
Square D HJL36100M73 - 100A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Square D HJL36100M73 - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36100M73 |
| Series | HJL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 180-1040A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free, Motor Circuit Protector |
Quantity
Square D HJL36100M73 - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36100M73 |
| Series | HJL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 180-1040A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free, Motor Circuit Protector |
Description
Part of the Square D PowerPacT H-Frame lineup, the HJL36100M73 is a 3-pole motor circuit protector designed for demanding industrial applications. It delivers instantaneous short-circuit protection for motor branch circuits, ensuring reliable operation in motor control centers and switchboards. This unit-mount breaker installs into standard industrial control panels and PowerPacT H-Frame enclosures. It features an adjustable 180-1040A magnetic trip and a 65kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36100M73 |
| Series | HJL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 180-1040A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free, Motor Circuit Protector |
