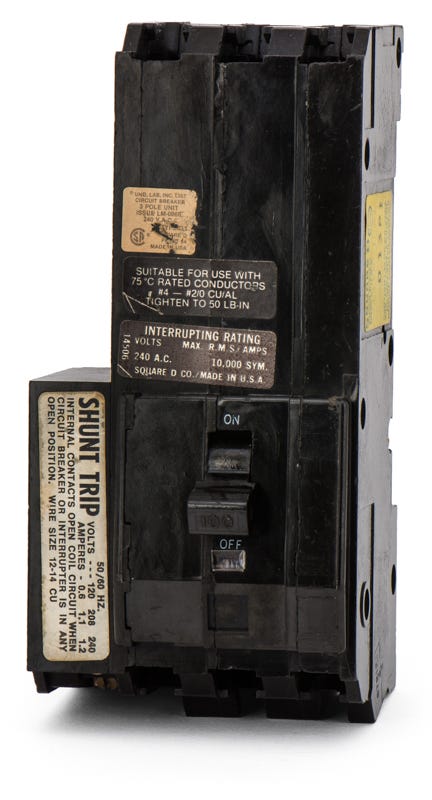

Square D Q13100-1021 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Plug-On
Quantity
Square D Q13100-1021 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for commercial power distribution, this 100-amp molded case breaker incorporates a 120/240V shunt trip for remote actuation. The three-pole design delivers reliable 10kAIC defense while utilizing the Visi-Trip flag for status checks. It mounts securely into aging Square D NQO and Q1 series panelboards. When transitioning to modern hardware, the QO31001021 acts as the designated factory cross-reference. Lug terminals accept 6 to 1/0 AWG wiring for flexible installation.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q13100-1021-R |
| Series | Q1 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Q1 Panelboards, NQO Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu), 4 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120/240VAC) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersWhat panelboards accept the Q13100-1021 circuit breaker?
This legacy Q-Frame breaker mounts directly into older Square D Q1 load centers and NQO panelboards, serving as an exact physical fit for aging infrastructure.
What does the -1021 suffix mean on this Square D part number?
The -1021 suffix indicates the breaker is equipped with a factory-installed 120/240V AC shunt trip, which allows the breaker to be tripped remotely by an external voltage signal.
Is there a modern replacement for the legacy Q13100-1021?
Yes, Square D QO series breakers are the current manufacturer-designated substitutes for Q1 breakers. However, installing this original wide-frame Q1 model maintains the exact physical footprint in older NQO enclosures without requiring mounting adapters.
What are the wire gauge requirements for the Q13100-1021 terminals?
The included lugs accommodate 6 AWG to 1/0 AWG copper conductors, or 4 AWG to 1/0 AWG aluminum conductors.
Does the Q13100-1021 feature adjustable trip settings?
No, this breaker utilizes a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection that cannot be field-adjusted.
Does this breaker include a tripped status indicator?
Yes, it features the classic Square D Visi-Trip indicator, which provides a clear visual confirmation when the breaker has tripped due to an overload or short circuit.
