Square D Q2M2100VH Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Quantity
Square D Q2M2100VH - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description

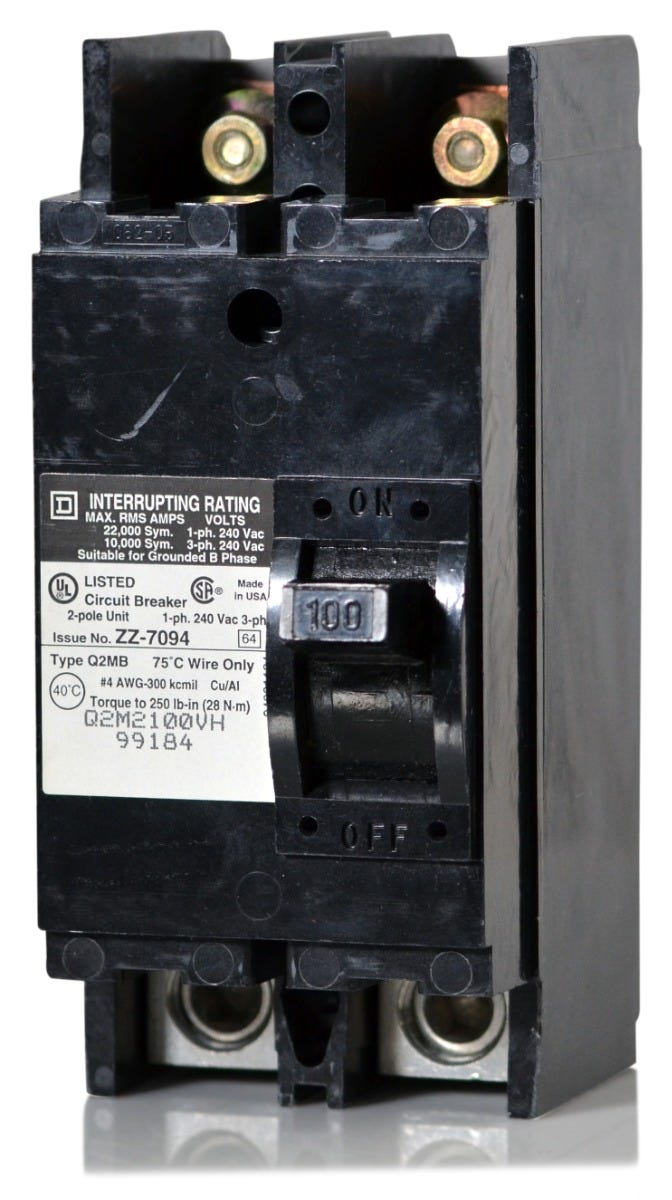

Engineered for enhanced safety, the Square D Q2M2100VH is a 2-pole, 100A molded case circuit breaker. It provides robust thermal-magnetic protection for commercial applications. The bolt-on unit comes equipped with line side lugs for straightforward installation. It mounts into Square D Meter-Pak, EZM Metering, and NQOD panelboards. For system updates, it is replaced by the QDM22100TN.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M2100VH |
| Series | Q2M |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q2M |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak, EZM Metering, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, High Interrupting Capacity, Main Breaker |
Product FAQs
5 answersWhich panels and metering centers accept the Q2M2100VH breaker?
This bolt-on breaker is specifically designed to mount into Square D Meter-Pak, EZM Metering centers, and NQOD panelboards.
What is the modern replacement for the legacy Q2M2100VH?
For new installations or system upgrades, the Q2M2100VH has been superseded by the PowerPact Q-Frame QDM22100TN. The QDM22100TN provides the same 100A rating and physical footprint but offers an upgraded 25kAIC interrupting capacity.
What wire sizes are compatible with the Q2M2100VH terminals?
The included lugs accept either aluminum or copper wiring ranging from 4 AWG up to 300 kcmil.
How does the trip mechanism function on the Q2M2100VH?
It features a fixed thermal-magnetic trip unit. The thermal component provides long-time protection against sustained overloads, while the magnetic component offers instantaneous protection against short circuits.
Can I use QO breakers in place of a Q2M breaker in an EZ Meter-Pak?
Yes, but it requires a specific adapter kit, catalog number EZM125QOA. This adapter allows standard QO breakers to be installed in the bolt-on spaces normally reserved for 2-pole Q2M tenant breakers up to 125A.
