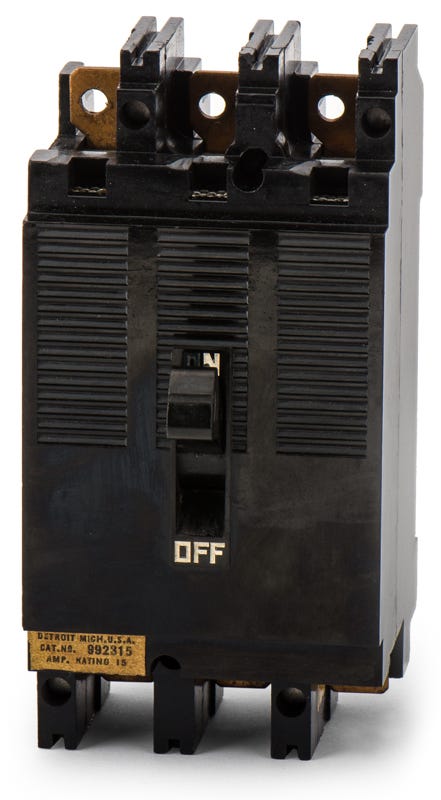

Square D 992315 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
992315
Molded Case Circuit Breaker
Brand
Square D
SKU
992315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D 992315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial use, the 992315 is a three-pole, 15-amp molded case circuit breaker from Square D's legacy 99 Series. It delivers dependable overcurrent and short-circuit protection for three-phase systems. Featuring a sturdy bolt-on configuration, this breaker mounts into Square D ML panelboards. It provides a straightforward replacement solution for maintaining older electrical distribution setups. The unit offers a 10 kAIC rating at 240VAC with fixed trip elements.Specifications
| Brand | Square D |
|---|---|
| Part Number | 992315-R |
| Series | 99 Series |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D ML Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, NEMA AB-1 |
| Approval | UL, CSA |
| Temp Rating | 40°C |
Product FAQs
5 answersWhich panelboards are compatible with the 992315 circuit breaker?
This legacy 99 Frame breaker is designed exclusively for bolt-on installation in Square D ML panelboards. It is used to maintain and service older electrical distribution systems that require this specific form factor.
What are the wire gauge requirements for the terminal lugs?
The load-side lugs are rated for dual-rated conductors, accepting 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
Does this breaker offer adjustable trip settings?
No. The 992315 utilizes fixed thermal and fixed magnetic trip elements. It provides standard long-time overload and instantaneous short-circuit (LI) protection without field adjustability.
Is the 992315 part of a current production series?
No, it is part of the legacy 99 Series from Square D. It serves as a direct replacement component for existing commercial and industrial ML panelboard setups rather than for new construction.
What must be verified regarding the 10kAIC rating before installation?
You must confirm that the available fault current at the ML panelboard does not exceed 10,000 amps at 240V AC. Installing this breaker in a system with a higher fault current violates safety standards and equipment ratings.
