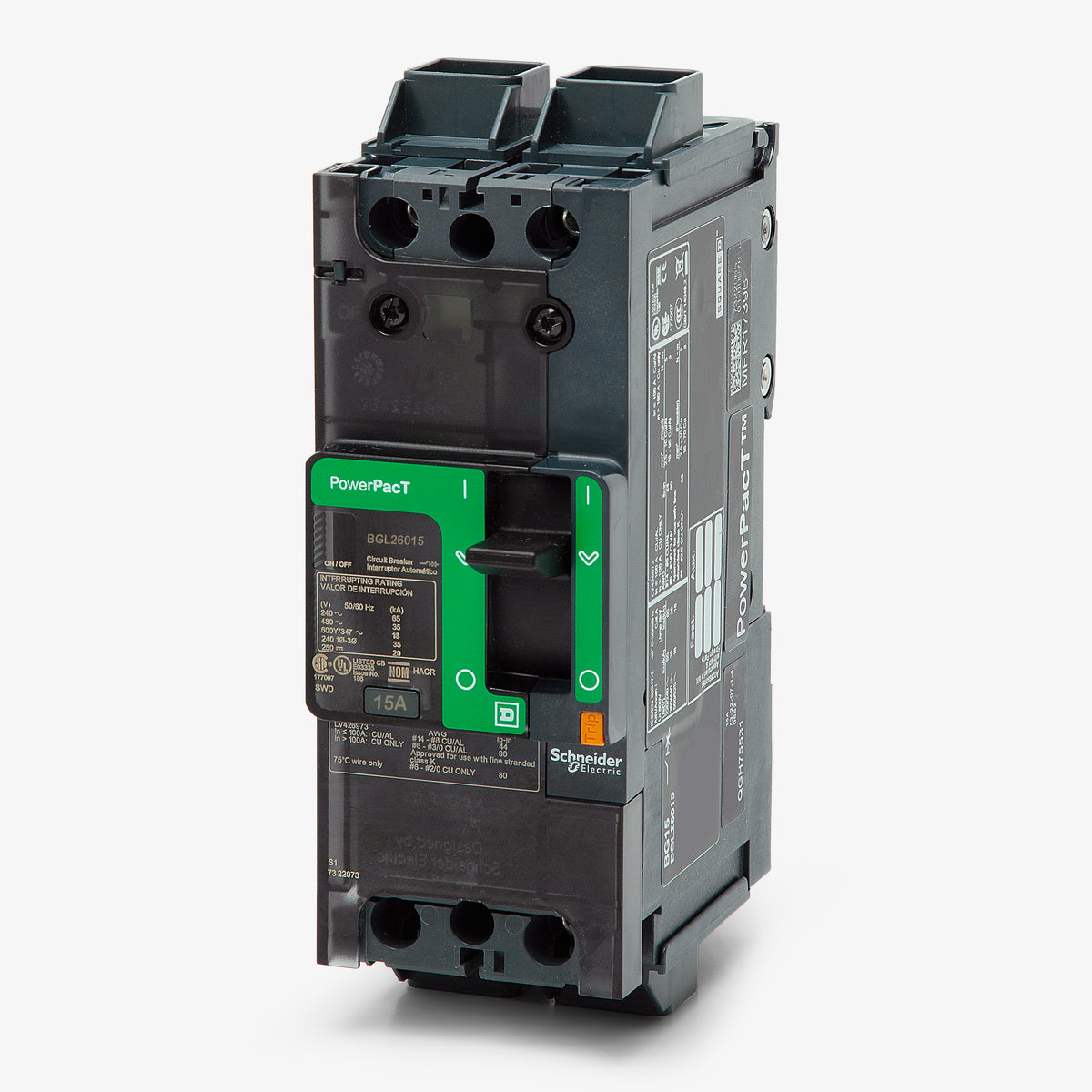

Square D BGL26015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
BGL26015
Molded Case Circuit Breaker
Brand
Square D
SKU
BGL26015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BGL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built to handle commercial and industrial power distribution, this 15A PowerPacT B-Frame molded case circuit breaker offers precise thermal-magnetic LI protection. It features a versatile unit mount design for installation into control panels and enclosures, serving as a modern substitute for legacy FAL26015 and FHL26015 models.Specifications
| Brand | Square D |
|---|---|
| Series | BGL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 20kA @ 250VDC |
| Frame Type | BGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs

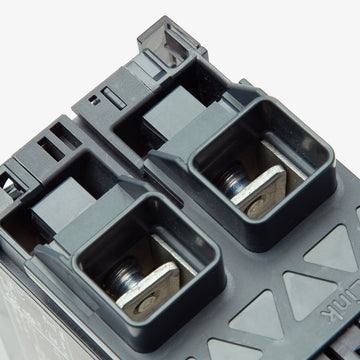

6 answersWhat type of lugs are included on the BGL26015?
This breaker is equipped with EverLink creep-compensating lugs on both the line and load sides. These lugs accept 14 AWG to 3/0 AWG aluminum or copper wire and are designed to prevent cable loosening over time.

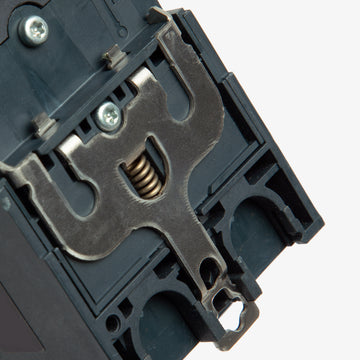

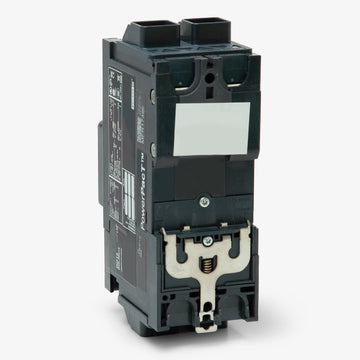

How is the BGL26015 circuit breaker mounted?
It features a unit-mount design, allowing for traditional back-pan mounting with screws or integrated DIN rail clip-on mounting for installation flexibility in control panels.
What does the "LI" trip function code indicate on this breaker?
The "LI" designation means the breaker provides Long-Time (thermal) and Instantaneous (magnetic) trip functions for overload and short-circuit protection. Both the thermal and magnetic trip settings are fixed.
What do the letters in the BGL26015 catalog number represent?
In the Square D PowerPacT nomenclature, the "B" stands for the B-Frame size, the "G" indicates the specific interrupting rating tier, and the "L" indicates the breaker is equipped with EverLink lugs.
Can the BGL26015 be used to replace older Square D legacy breakers?
Yes, PowerPacT B-Frame unit-mount breakers like the BGL26015 serve as modern substitutes for legacy Square D FAL26015 and FHL26015 models.
Does the BGL26015 include a manual trip feature?
Yes, all PowerPacT B-Frame circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker for testing or maintenance.
