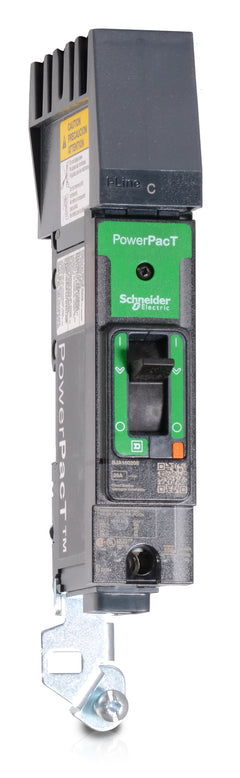

Square D BJA160153 Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
BJA160153
Molded Case Circuit Breaker
Brand
Square D
SKU
BJA160153
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BJA160153 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
A specialized Phase B component, the Square D BJA160153 is a 1-pole, 15A molded case circuit breaker. It provides reliable thermal-magnetic protection for commercial branch circuits. This B-Frame breaker installs into Square D I-Line panelboards. It serves as a modern drop-in replacement for legacy FH16015B breakers. Rated at 100kAIC at 240VAC, it utilizes a patented plug-on bus connection for fast, secure installation without external hardware.Specifications
| Brand | Square D |
|---|---|
| Series | BJA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 25kA @ 600Y/347VAC, 50kA @ 125VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Phase B Connection, Reverse Feed |
Product FAQs
8 answersWhat panelboards accept the BJA160153 circuit breaker?
This breaker is designed exclusively for Square D I-Line distribution panelboards and switchboards. It features a plug-on stab connection that mounts directly to the I-Line bus assembly.
Can the PowerPacT B-frame BJA160153 replace older Square D breakers?
Yes, the PowerPacT B-frame series is the direct replacement for legacy F-frame (FA and FH) molded case circuit breakers used in I-Line panelboards. It fits the same mounting space dimensions to simplify retrofits.
What wire sizes are compatible with the lugs on this breaker?
The factory-installed mechanical lugs accept 14 AWG to 2/0 AWG aluminum or copper conductors. Always torque the terminals to the specifications printed on the breaker faceplate.
What does the J in the BJA160153 catalog number indicate?
The J designates the interrupting rating tier within the PowerPacT B-frame family. It provides a high interrupting capacity of 100kA at 240VAC, 65kA at 480Y/277VAC, and 25kA at 600Y/347VAC.
Is this 1-pole breaker suitable for DC applications?
Yes, the BJA160153 is rated for use in DC circuits up to 125VDC, with a DC interrupting rating of 50kA.
What type of trip mechanism does the BJA160153 use?
It utilizes a thermal-magnetic trip unit with fixed long-time and instantaneous protection. The thermal element protects against sustained overloads, while the magnetic element trips immediately during short circuits.
Does this breaker require a separate mounting bracket for installation?
No, the I-Line mounting design integrates the mounting bracket and plug-on jaw directly into the breaker. It snaps onto the panelboard bus, eliminating the need for separate mounting hardware.
Can I install the BJA160153 in a standard QO or Homeline residential load center?
No, this is an I-Line molded case circuit breaker intended for commercial and industrial distribution panels. It will not fit in residential plug-on load centers like QO or Homeline.
