Square D EJB14015 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
EJB14015
Miniature Circuit Breaker
Brand
Square D
SKU
EJB14015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

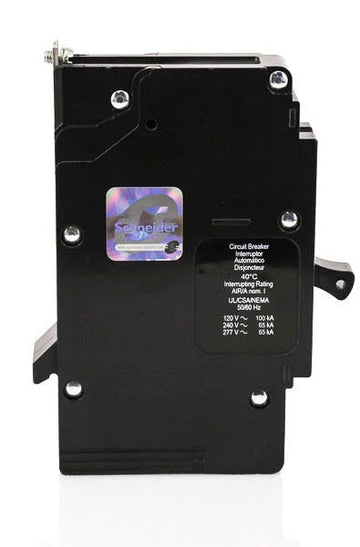

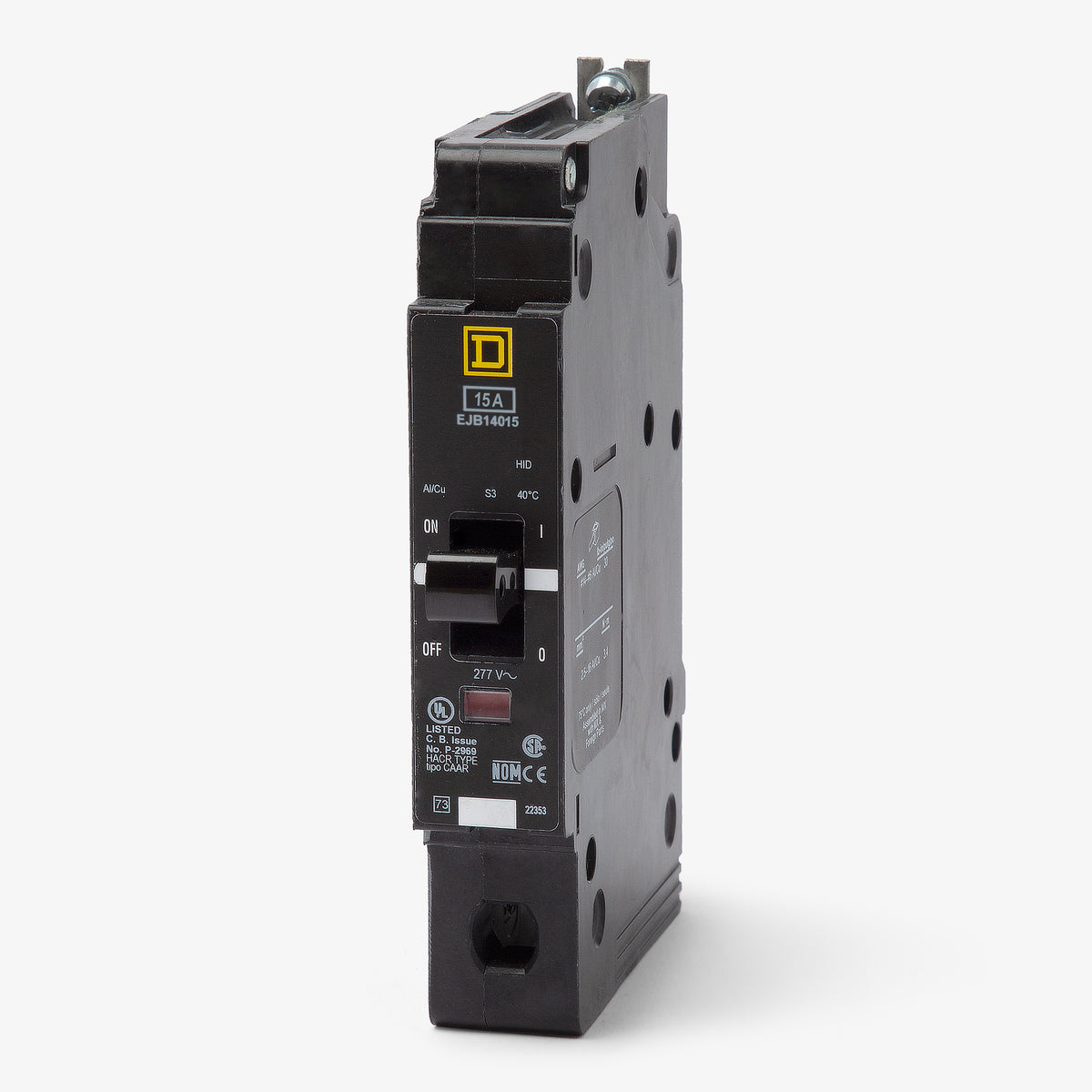

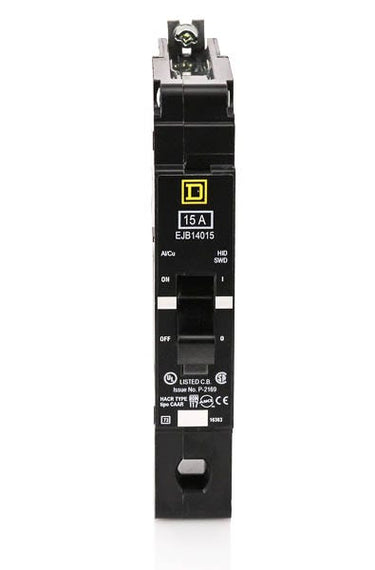

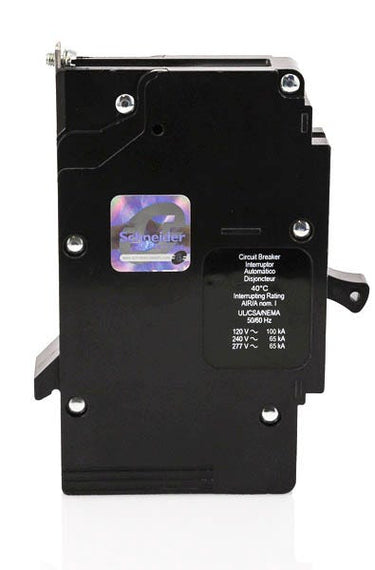

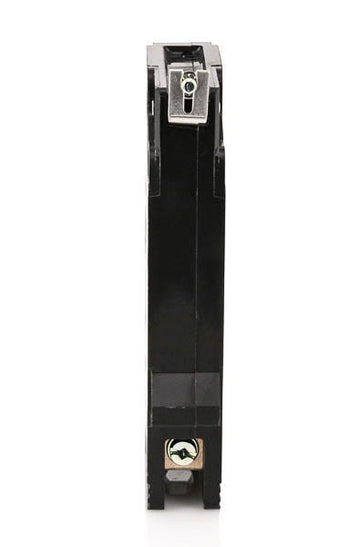

Square D EJB14015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB14015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB14015 |
| Series | EJB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Quantity
Square D EJB14015 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EJB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Similar Items
25A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the Square D EJB14015 is a 1-pole, 15A E-Frame miniature circuit breaker. It delivers robust thermal-magnetic protection. This unit installs into Square D NF panelboards using a secure bolt-on connection. It accepts 14-6 AWG copper or 12-6 AWG aluminum wire. Rated at 100 kAIC at 120V and 65 kAIC at 277V, it handles high fault currents safely. It includes a Visi-Trip indicator and carries HACR, HID, and SWD ratings.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB14015 |
| Series | EJB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the EJB14015?
This breaker is designed exclusively for use in Square D NF series panelboards. It requires a bolt-on connection to the panel bus and occupies one pole space.
Can I use the EJB14015 to replace an EDB14015 or EGB14015?
Yes. The EJB14015 shares the exact same physical E-frame footprint but offers a higher interrupting rating of 65kAIC at 277VAC. It serves as a direct, code-compliant upgrade for the 18kAIC EDB14015 and 35kAIC EGB14015.
Is the EJB14015 suitable for switching fluorescent lighting loads?
Yes, this breaker is SWD (Switching Duty) rated. This allows it to be used as a switch to control 120V or 277V fluorescent lighting circuits on a regular basis without damaging the breaker mechanism.
Does this breaker carry an HID rating?
Yes, the EJB14015 is HID (High-Intensity Discharge) rated. It is tested and approved to handle the high inrush currents typical of HID lighting fixtures without nuisance tripping.
Is the EJB14015 approved for HVAC equipment?
Yes, it is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires this specific type of circuit protection.
Can the EJB14015 be backfed for solar applications?
Yes, Square D E-frame breakers, including the EJB14015, are approved for backfeeding in AC solar applications. Note that they are not DC rated and must only be used in alternating current circuits.
Will this breaker fit in a Square D QO or Homeline panel?
No. The EJB14015 is an E-frame bolt-on breaker built specifically for commercial NF panelboards. It is physically incompatible with residential QO, NQ, or Homeline load centers.
Does the EJB14015 feature a tripped status indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears in the window to help quickly identify the faulted circuit in a crowded panel.
