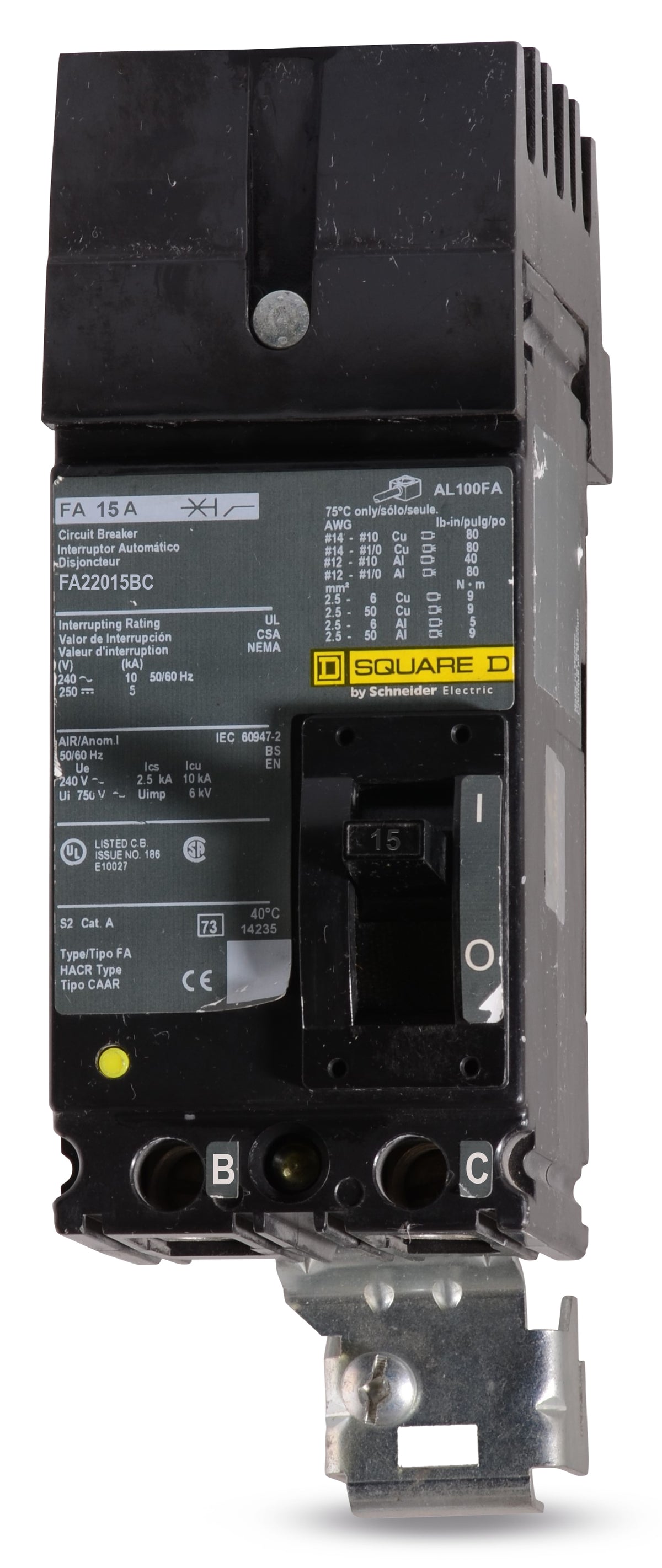

Square D FA22015BC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA22015BC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA22015BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA22015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA22015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA22015BC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22015BC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D FA22015BC provides reliable thermal-magnetic protection. This 15A molded case circuit breaker is part of the F-Frame series, delivering long-time and instantaneous trip functions. It installs into Square D I-Line panelboards. For facilities maintaining existing infrastructure, this unit serves as an exact replacement before transitioning to the BDA240154 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA22015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the FA22015BC?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on I-Line connection on the line side and is not compatible with standard residential load centers.
What does the BC suffix indicate on this breaker?
The BC suffix indicates the factory-configured phase connection. This specific breaker is built to connect to the B and C phases on the I-Line bus.
What is the modern replacement for the FA22015BC?
The Square D FA series has been superseded by the PowerPact B-Frame series. The direct modern equivalent for this 15A, BC-phase breaker is catalog number BDA240154.
What are the magnetic trip settings for this 15A breaker?
The FA22015BC features fixed thermal and fixed magnetic trip settings. The magnetic trip is factory-set to hold at 275A and trip at 600A.
What is the standard lug kit provided with this breaker?
The FA22015BC comes standard with AL50FA mechanical lugs on the load side, which accept 14-4 AWG copper or 12-4 AWG aluminum wire.
Is this breaker approved for HVAC applications?
Yes, the FA22015BC is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) protection against overloads and Instantaneous (I) protection against short circuits. Both settings are fixed on this model.
