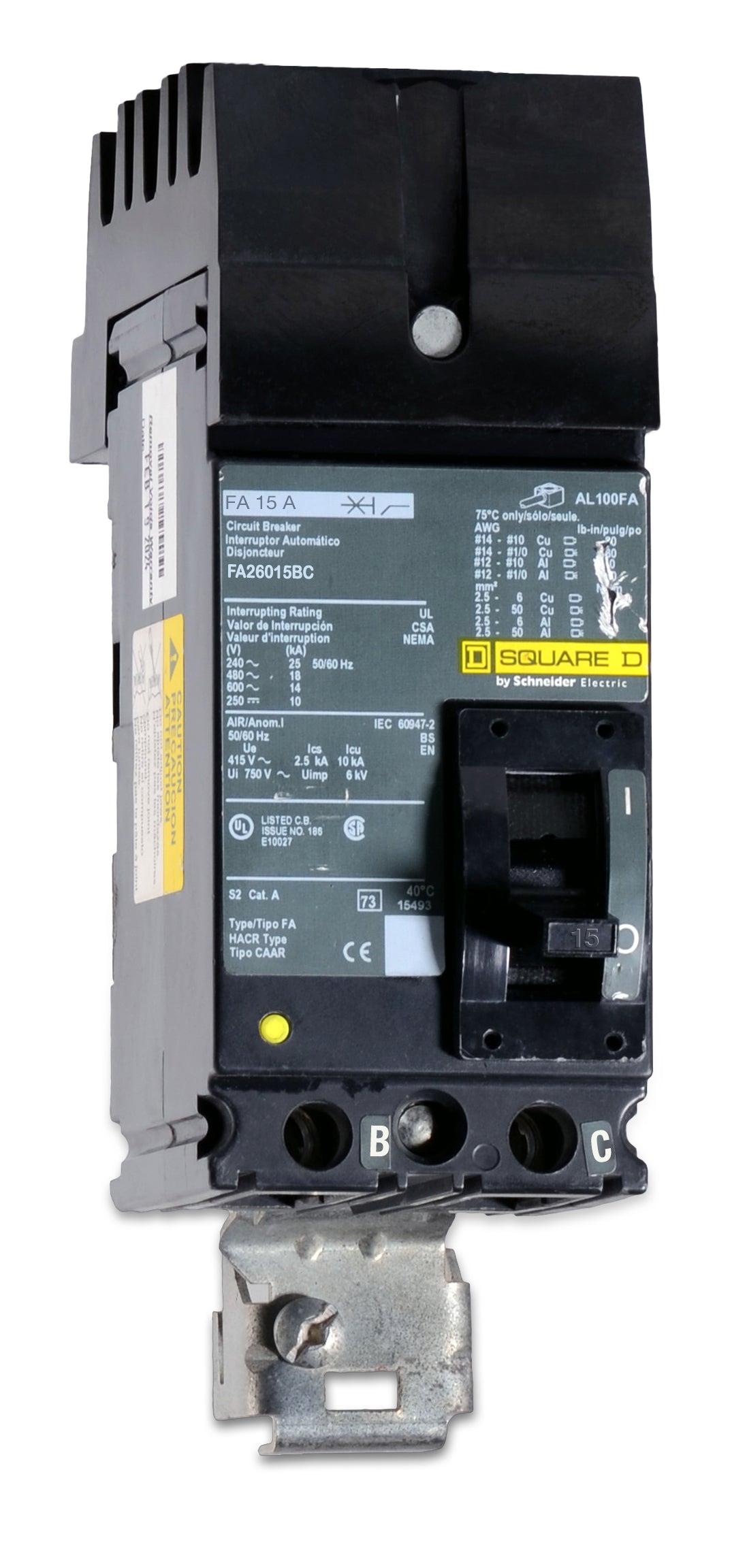

Square D FA26015BC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA26015BC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26015BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA26015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection BC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA26015BC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26015BC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection BC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-frame series, this 15-amp molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial facilities. It features a factory-configured B-C phase connection for specific load balancing requirements. Designed for seamless integration, the unit installs into Square D I-Line panelboards and switchboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection BC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat type of panelboards is the FA26015BC compatible with?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection that mounts directly to the busbar.
What does the BC suffix indicate on the FA26015BC?
The BC suffix indicates that this 2-pole breaker is factory-configured to connect to the B and C phases of the I-Line busbar. This is critical for proper load balancing in your panel.
What wire sizes and materials are accepted by the lugs on this breaker?
The load-side lugs on the FA26015BC accept 14 AWG to 4 AWG wire and are rated for both copper and aluminum conductors.
What type of trip unit does the FA26015BC use?
It uses a fixed thermal-magnetic trip unit with long-time and instantaneous trip functions to protect against overloads and short circuits.
What safety precautions should be taken before installing this I-Line breaker?
Always ensure the panelboard is fully de-energized before installation. Verify that the B-C phase configuration matches your load balancing requirements and that the breaker is properly seated on the I-Line bus to prevent arcing.
