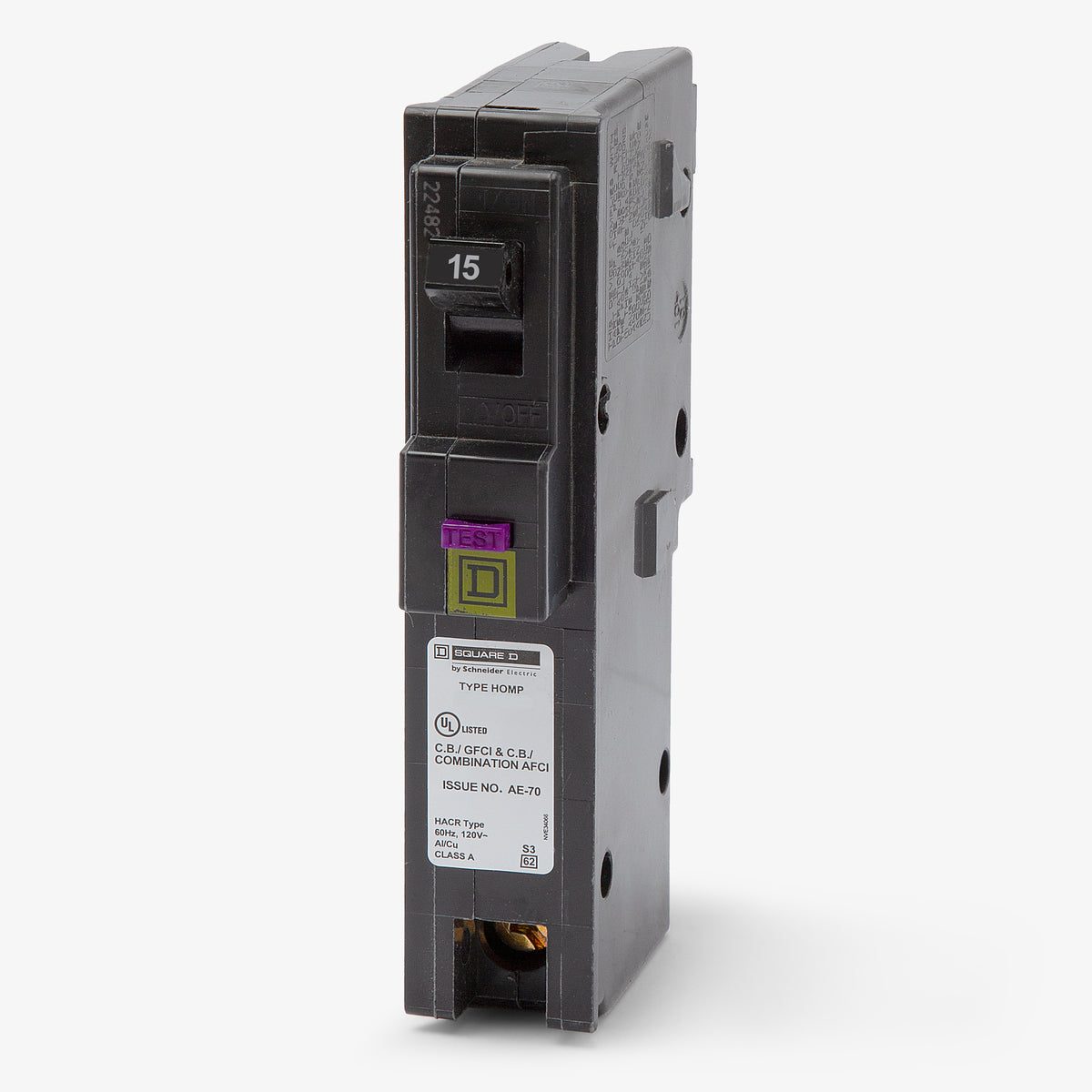

Square D HOM115PDF Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Square D HOM115PDF - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Description
Built to streamline residential wiring, this 15A plug-on neutral breaker delivers both combination arc-fault and Class A ground-fault safety. It serves as a critical component for modern home electrical systems. The device installs into Square D Homeline Plug-On Neutral load centers. By eliminating the traditional pigtail wire, it reduces gutter clutter and speeds up installation. Rated for 10kAIC at 120VAC, it features built-in Time-Saver Diagnostics to help pinpoint trip causes quickly.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM115PDF |
| Series | HOM |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, RoHS, UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
7 answersCan I install the HOM115PDF in an older Homeline panel without a Plug-On Neutral bar?
No, the HOM115PDF connects directly to the panel's neutral bar and is only compatible with Homeline Plug-On Neutral load centers. For older Homeline panels without this feature, you must use the pigtail version, catalog number HOM115DF.
Are Square D Homeline circuit breakers interchangeable with QO circuit breakers?
No. Homeline breakers feature a 1-inch per pole format and are not compatible with QO load centers. You must use a QO115PDF for Square D QO panels.
What types of faults does this Dual Function breaker protect against?
The HOM115PDF provides both Combination Arc Fault Circuit Interrupter (CAFI) and Class A Ground Fault Circuit Interrupter (GFCI) protection, safeguarding the circuit against arcing faults, ground faults, overloads, and short circuits.
How does the TIME-SAVER Diagnostics feature work on this Homeline breaker?
To use TIME-SAVER Diagnostics, turn the breaker off, hold down the Push-To-Test button, and turn the breaker back on. If it trips immediately, it indicates a ground fault. A 2-second delay indicates an arc fault, and a 5-second delay indicates a thermal overload or short circuit.
What are the wiring benefits of using the Plug-On Neutral design?
The Plug-On Neutral design eliminates the need to route and terminate a separate pigtail wire. This reduces installation time, requires fewer connections, and frees up gutter space within the load center.
Can I use the HOM115PDF on a multi-wire branch circuit with a shared neutral?
No. Single-pole dual function circuit breakers require a dedicated neutral for the circuit to function correctly. Sharing a neutral on a multi-wire branch circuit will cause the GFCI protection to trip immediately.
Is the HOM115PDFC the same as the HOM115PDF?
Yes, the HOM115PDFC is the exact same 15A dual function circuit breaker. The C suffix simply indicates that the breaker is packaged in consumer retail clamshell packaging.
