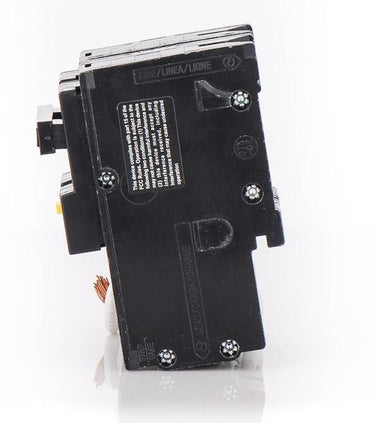

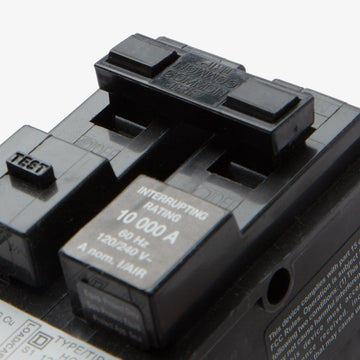

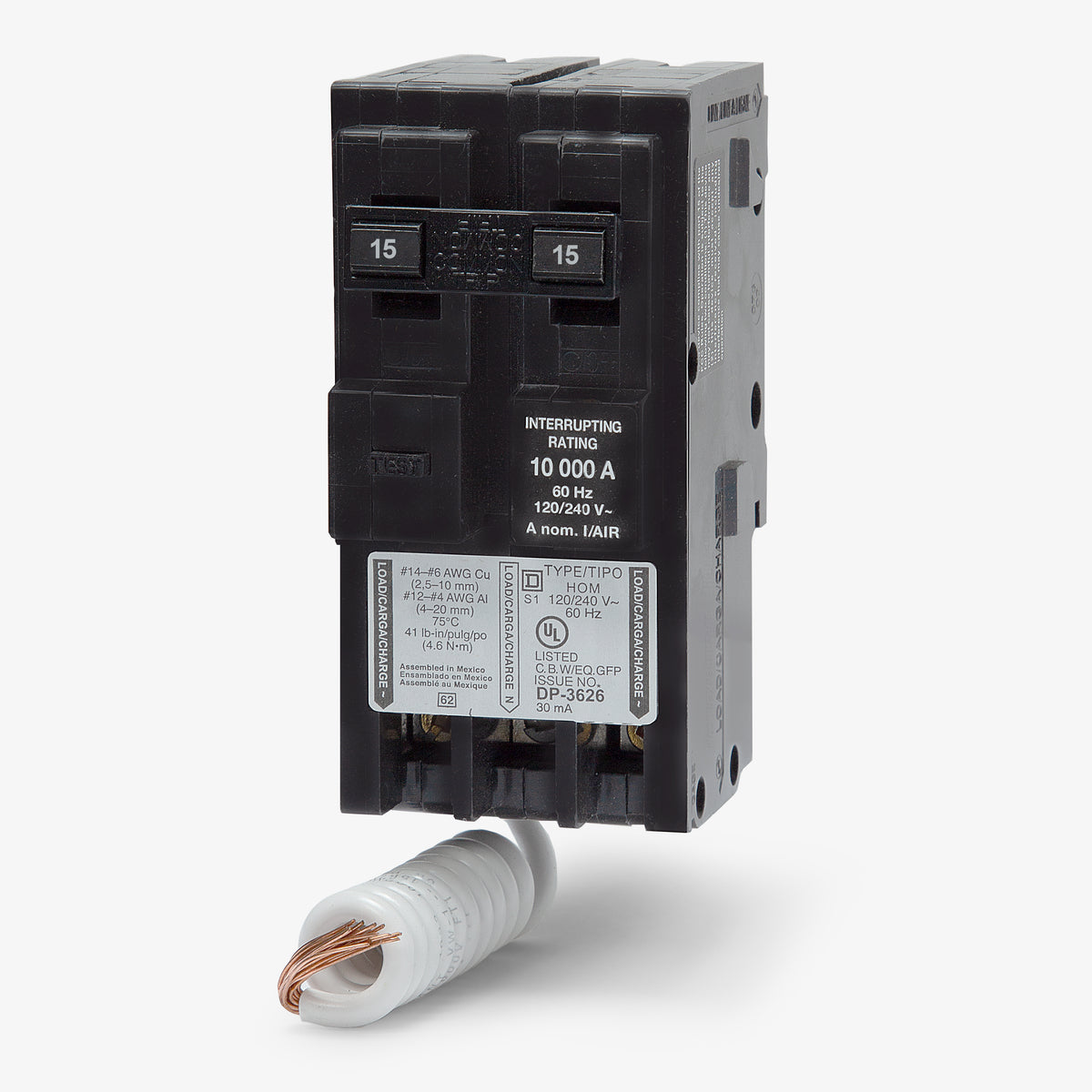

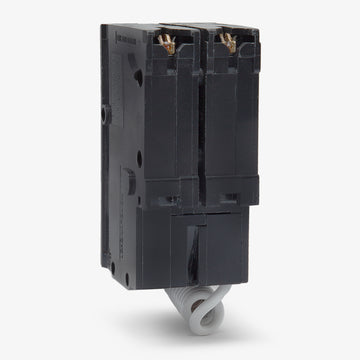

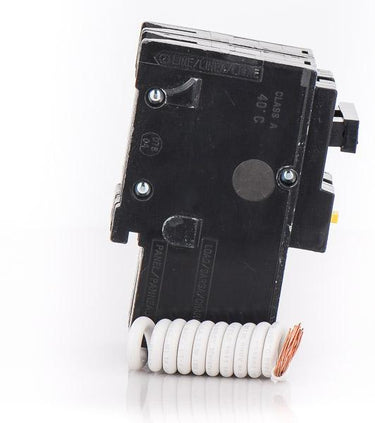

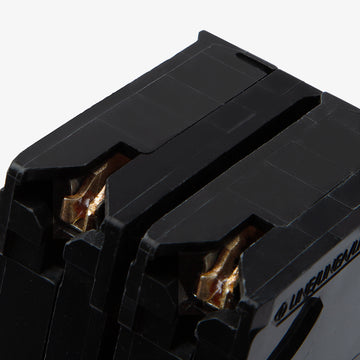

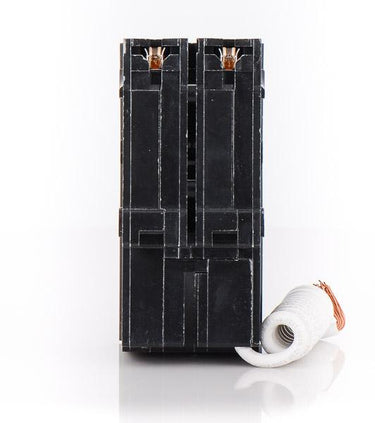

Square D HOM215GFI GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Square D
HOM215GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
HOM215GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM215GFI |
| Series | HOM |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR Rated, UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM215GFI - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM215GFI-R |
| Series | HOM |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR Rated, UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
25A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
Description
Providing dedicated 240-volt personnel protection, this 15-amp two-pole breaker is essential for specialized residential loads like pool pumps or outdoor receptacles. The unit installs into traditional Square D Homeline panelboards and utilizes a standard pigtail wire to establish the neutral connection. Featuring a 10kAIC rating and thermal-magnetic trip mechanisms, it guarantees reliable defense against both dangerous ground faults and damaging overcurrent events.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM215GFI |
| Series | HOM |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR Rated, UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersCan the HOM215GFI be installed in a Square D QO load center?
No. Homeline breakers are strictly designed for Square D Homeline load centers. They use a 1-inch format that is not physically interchangeable with the 3/4-inch QO series panels.
Does this breaker require a plug-on neutral panel design?
No. This specific unit features a pigtail neutral connection. It works in both legacy standard panels and modern plug-on neutral Homeline load centers, but you must manually route and terminate the attached white pigtail wire to the neutral bus bar.
How much physical panel space does this unit occupy?
As a two-pole Homeline breaker, it requires two adjacent standard 1-inch spaces on the load center bus.
Is this breaker suitable for multi-wire branch circuits?
Yes. A two-pole GFCI is required when providing ground fault protection for multi-wire branch circuits where two 120V circuits share a common neutral conductor, or for dedicated 240V equipment requiring personnel protection.
What type of ground fault protection does this model provide?
It provides Class A ground fault protection. The breaker is calibrated to trip and open the circuit when it detects a ground fault leakage current between 4 and 6 milliamperes, which is the standard required to protect personnel from electrical shock.
