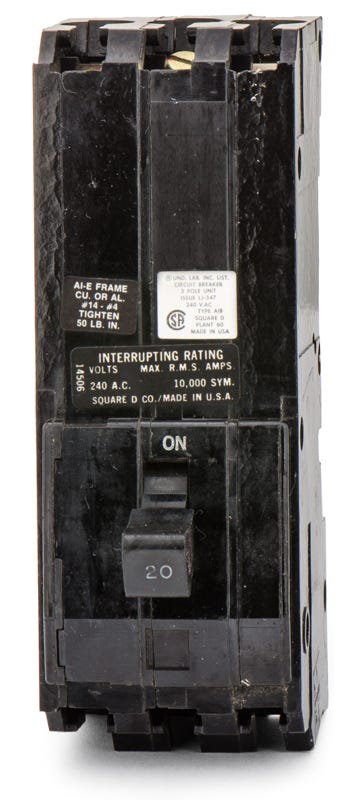

Square D A1B320 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Quantity
Square D A1B320 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for commercial distribution, the Square D A1B320 provides 20 amps of 3-pole overcurrent protection. It features a long body design and utilizes proven thermal-magnetic trip technology to protect circuits against overloads and short circuits. This miniature breaker mounts securely into Square D NA1B panelboards using a robust bolt-on connection. It accommodates 14-8 AWG wire via load side lugs. With an interrupting capacity of 10kA at 240VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | A1B320-R |
| Series | A1B |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NA1B Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Long Body |
Product FAQs
6 answersWhat panelboards are compatible with the Square D A1B320 circuit breaker?
This breaker is designed specifically for installation in legacy Square D NA1B panelboards. It is used to maintain or expand older commercial and industrial distribution systems.
Can I install the A1B320 in a standard Square D QO or NQ load center?
No, the A1B320 features a specific form factor and bolt-on mounting design that is exclusively compatible with legacy NA1B panelboards. It will not fit in modern QO, NQ, or I-Line panels.
Is the Square D A1B320 still in active production?
The A1B series is an obsolete product line originally manufactured for older NA1B panelboards. Replacements are sourced to maintain existing legacy electrical infrastructure without requiring a full panel upgrade.
Does installing this breaker require a separate mounting hardware kit?
If the panelboard does not already have the necessary bus connectors in place, installing a 3-pole A1B frame breaker into an NA1B panelboard requires a specific bus connection hardware kit, such as the OEM SK5666.
Does the A1B320 include a visual trip indicator?
Yes, this breaker features Square D Visi-Trip technology. When the breaker trips due to an overload or short circuit, a highly visible indicator appears to help quickly identify the faulted circuit in the panelboard.
Can the A1B320 be used on 480V systems?
No, this breaker is rated for a maximum of 240V AC. It cannot be safely installed in 480V or 277V applications. For 277V legacy systems, the equivalent Square D Y1B series was typically used.
