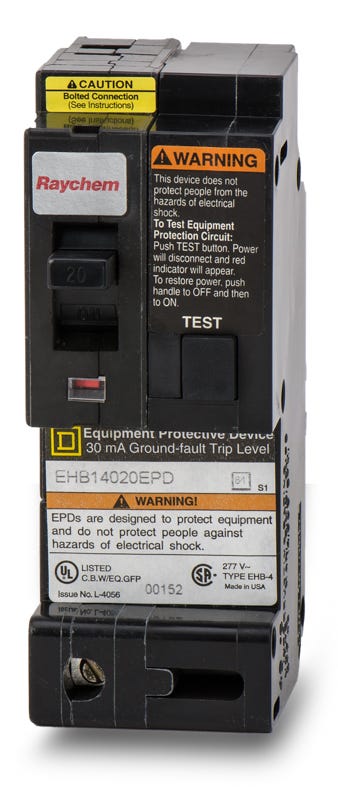

Square D EHB14020EPD GFEP Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Square D EHB14020EPD - 20A GFEP Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB14020EPD - 20A GFEP Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14020EPD |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
| Accessories | Equipment Protection Device (30mA Ground Fault) |
| Standards | UL 489, UL 1053, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Quantity
Square D EHB14020EPD - 20A GFEP Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
| Accessories | Equipment Protection Device (30mA Ground Fault) |
| Standards | UL 489, UL 1053, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Description
Maintaining older electrical systems requires exact-fit components, and the Square D EHB14020EPD delivers 20A thermal-magnetic protection with integrated 30mA equipment ground-fault sensing. It protects commercial machinery from leakage currents on 277VAC circuits. This legacy E-Frame breaker mounts into discontinued Square D NEHB panelboards. For modern upgrades, it is replaced by the EDB14020EPD, requiring an NF panelboard.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14020EPD |
| Series | EHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
| Accessories | Equipment Protection Device (30mA Ground Fault) |
| Standards | UL 489, UL 1053, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards accept the EHB14020EPD circuit breaker?
This bolt-on breaker is designed specifically for legacy Square D NEHB panelboards. It is not compatible with modern NF panelboards or standard QO load centers.
What is the ground-fault trip threshold for this EPD breaker?
The EHB14020EPD features a 30mA ground-fault trip level. As an Equipment Protection Device (EPD), it is designed to protect machinery and heat trace cables from damaging leakage currents, not for 5mA personnel shock protection.
How is the ground-fault sensing powered on the EHB14020EPD?
The breaker includes a pigtail neutral wire. This pigtail must be securely connected to the panelboard neutral bus during installation to power the internal electronic ground-fault sensing circuitry.
What is the modern replacement for the EHB14020EPD?
The EHB series and NEHB panelboards are legacy products. If you are upgrading the entire panelboard, the modern equivalent is the EDB14020EPD, which requires a Square D NF panelboard. However, EDB breakers will not retrofit into older NEHB panels.
Can the EHB14020EPD be used as a standard GFCI for personnel protection?
No. This breaker is classified as an Equipment Protection Device (EPD) with a 30mA trip threshold. It does not meet the 5mA Class A GFCI requirements needed for personnel shock protection.
