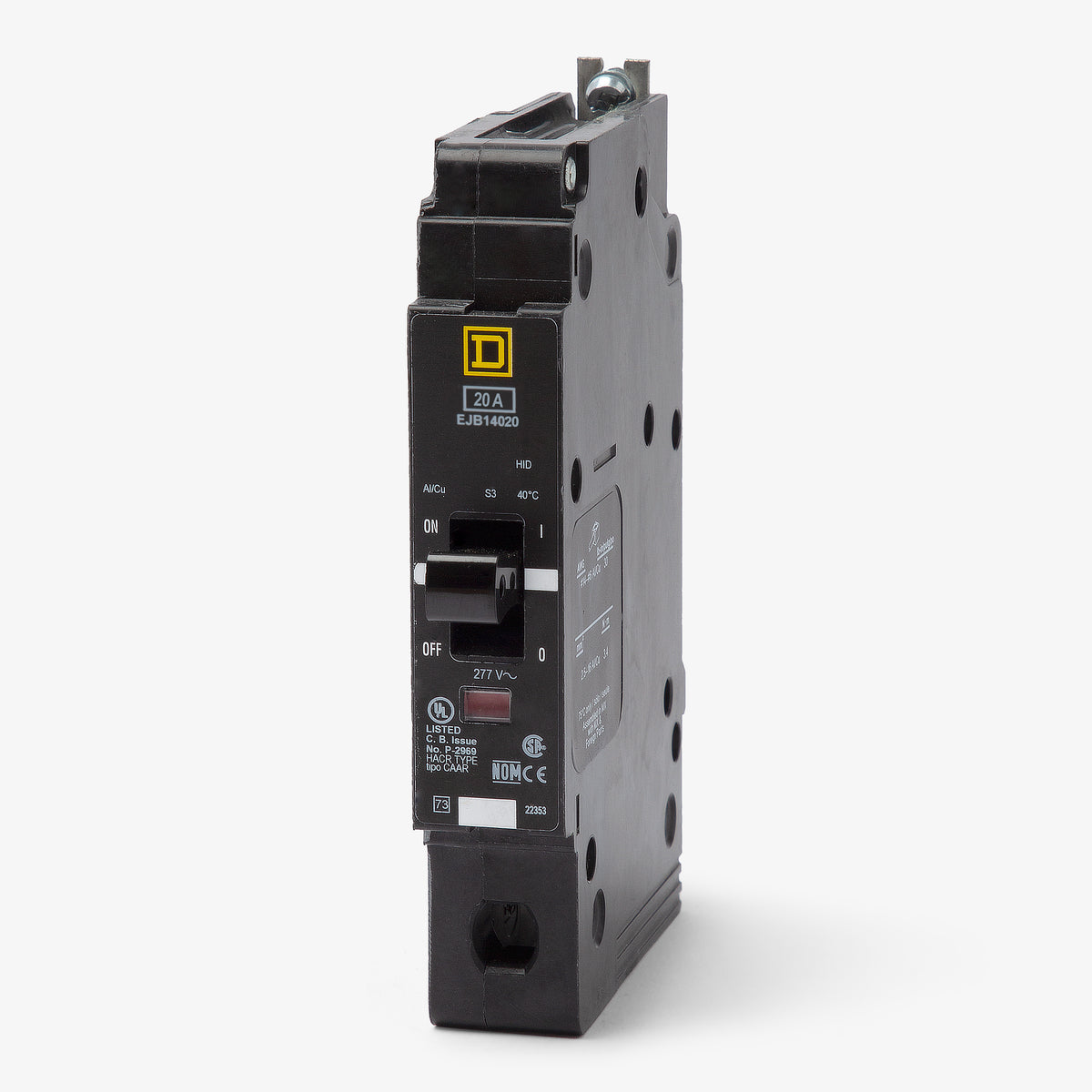

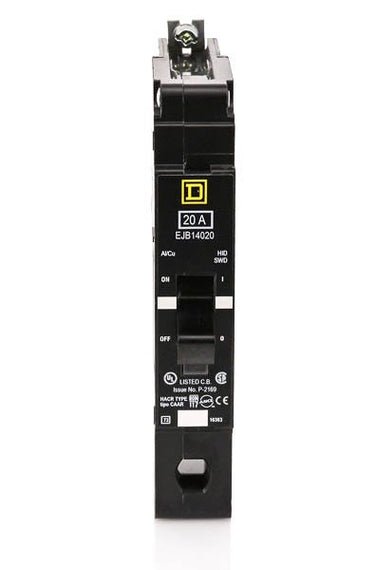

Square D EJB14020 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
EJB14020
Miniature Circuit Breaker
Brand
Square D
SKU
EJB14020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB14020 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB14020 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB14020 |
| Series | EJB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |

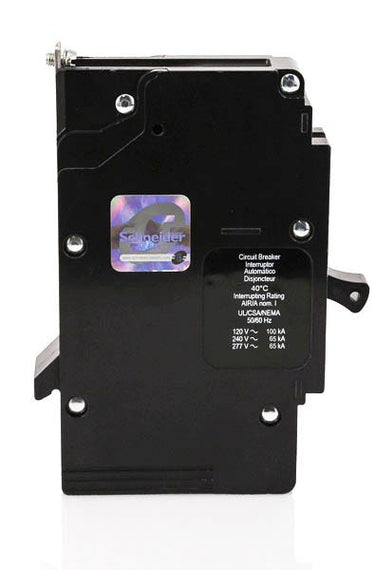

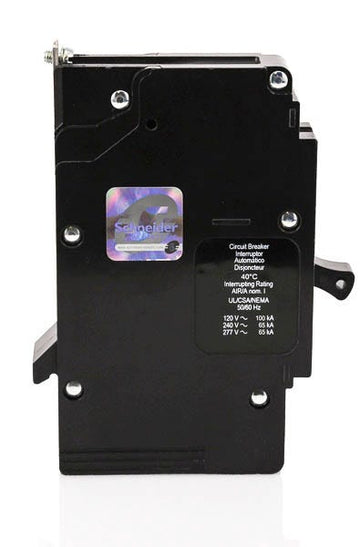

| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Quantity
Square D EJB14020 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EJB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
The Square D EJB14020 is a 20-amp, single-pole miniature circuit breaker designed for commercial power systems. It offers dependable thermal-magnetic protection against overloads. This E-Frame breaker installs into Square D NF panelboards using a sturdy bolt-on configuration. The included lugs accept 14-6 AWG copper or 12-6 AWG aluminum wiring. Rated 100 kAIC at 120V and 65 kAIC at 277V, it handles high fault currents. The unit includes the Visi-Trip indicator and is HACR, HID, and SWD rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB14020 |
| Series | EJB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
9 answersIs the EJB14020 compatible with Square D QO or NQ panelboards?
No. The EJB14020 is an E-Frame circuit breaker designed exclusively for use in Square D NF panelboards. It will not physically fit in QO, NQ, or I-Line panelboards.
What is the recommended terminal tightening torque for the EJB14020?

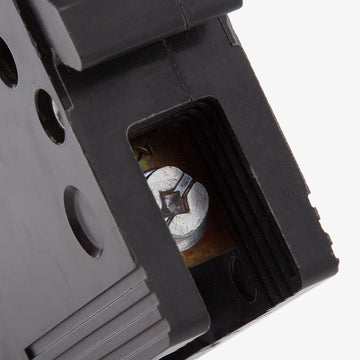

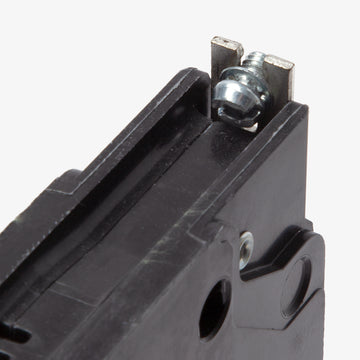

The terminal lugs should be tightened to 30.09 lb-in (3.4 N.m) for both copper and aluminum wire sizes from 14 AWG to 6 AWG.
Does the EJB14020 feature a visual trip indicator?
Yes. It includes the Visi-Trip indicator, which provides a highly visible red flag when the breaker trips. This mechanical feature makes it significantly easier to quickly locate a faulted circuit in a busy panelboard.
Can the EJB14020 be used for switching fluorescent lighting loads?
Yes. This breaker is SWD (Switching Duty) rated, meaning it is certified to safely switch 120V and 277V fluorescent lighting circuits on and off on a regular basis.
Is this circuit breaker approved for HVAC applications?
Yes. The EJB14020 is HACR rated, making it fully compliant for use with heating, air conditioning, and refrigeration equipment that requires this specific classification.
What is the difference between the EJB14020, EDB14020, and EGB14020?
All three are 1-pole, 20A E-Frame breakers that mount in NF panelboards. They differ solely in their interrupting capacities (AIC ratings). The EJB series provides the highest short-circuit protection, while the EDB offers standard tier ratings and the EGB provides intermediate ratings.
Is the EJB14020 rated for High Intensity Discharge (HID) lighting?
Yes. It carries an HID rating, meaning it is designed to safely handle the high inrush currents that occur when powering up High Intensity Discharge lighting fixtures.
Can I field-install a shunt trip or auxiliary switch on the EJB14020?
No. Electrical accessories like shunt trips, auxiliary switches, and alarm switches for Square D E-Frame circuit breakers must be factory-installed. You must order a breaker with the appropriate factory suffix if you require these internal accessories.
Can the EJB14020 be backfed in a panelboard?
Yes. Square D E-Frame circuit breakers can be backfed for applications such as solar power interconnection. Please note that while they accept AC backfeeding, they are not DC rated.
