Square D FAL34020-1021 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Quantity

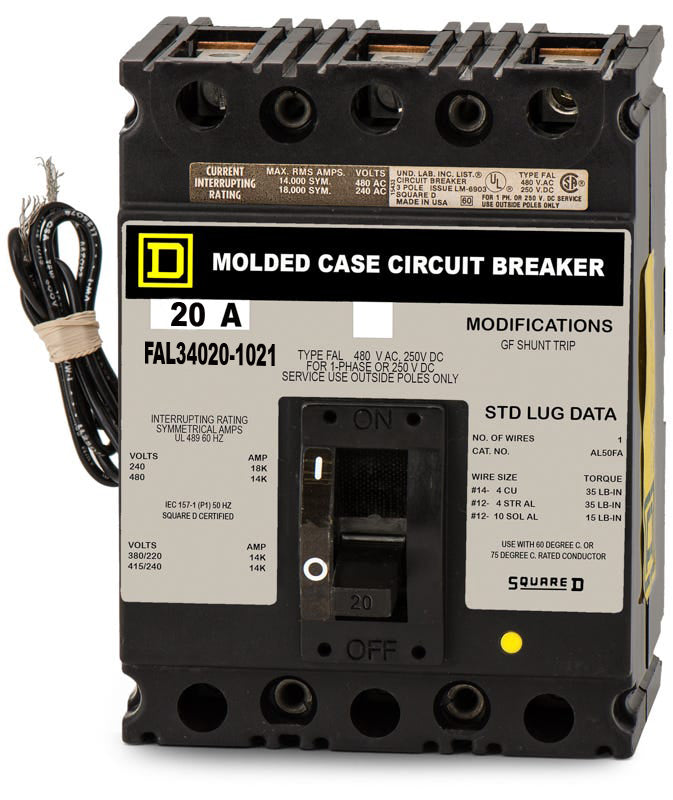

Square D FAL34020-1021 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
The Square D FAL34020-1021 is a 3-pole, 20A molded case circuit breaker for commercial power distribution. As part of the legacy F-Frame series, it provides reliable thermal-magnetic protection. This unit mount MCCB installs into Square D enclosures and switchboards. For modern upgrades, this configuration is superseded by the HDL36020 breaker. Rated 25kAIC at 240VAC, it features long-time and instantaneous trip functions, plus a factory-installed 120/240VAC shunt trip for remote interruption.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34020-1021 |
| Series | FAL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the FAL34020-1021?
The -1021 suffix designates that this breaker is equipped with a factory-installed 120/240VAC shunt trip. This accessory allows the breaker to be tripped remotely via a control signal.
What wire sizes are accepted by the terminals on this breaker?
The included lugs accommodate 14 AWG to 4 AWG copper conductors, or 12 AWG to 4 AWG aluminum conductors.
Can the FAL34020-1021 be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for use in 250VDC applications with a 10kA interrupting capacity.
How is the FAL34020-1021 mounted?
This is a unit-mount (feed-thru) circuit breaker. It is designed to be bolted directly to the backpan of compatible Square D enclosures, switchboards, or panelboards, rather than plugging onto a busbar or using an I-Line connection.
Is the Square D FAL series still the current standard for new installations?
The FAL series is a legacy F-frame molded case circuit breaker primarily used to maintain and support existing systems. New Square D installations typically utilize the modern PowerPact series.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic (LI) trip unit provides long-time protection against sustained overloads and instantaneous protection against severe short circuits.
