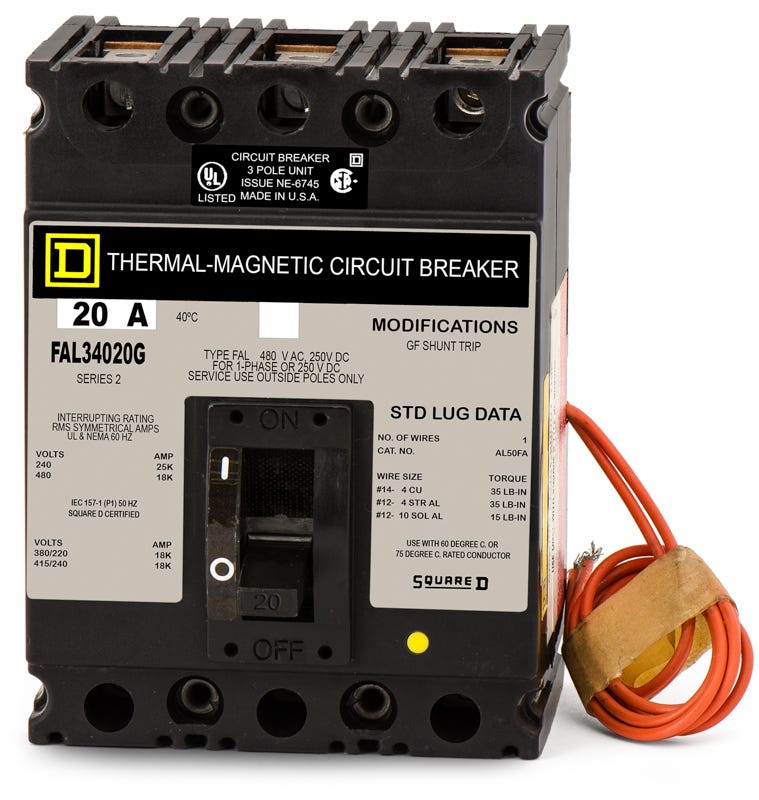

Square D FAL34020G Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Quantity
Square D FAL34020G - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Manufactured by Square D, the FAL34020G is a 20A, 3-pole molded case circuit breaker for industrial power systems. It belongs to the legacy F-Frame family, delivering proven thermal-magnetic protection. The unit mount design installs into Square D enclosures, panelboards, and switchboards. For modern upgrades, it crosses over to the HDL36020 replacement. Rated 18kAIC at 480VAC, it features a factory-installed ground fault shunt trip (indicated by the "G" suffix) for specialized safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34020G-R |
| Series | FAL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated |
Product FAQs
6 answersWhat is the modern replacement for the Square D FAL34020G?
The FAL34020G is a legacy F-Frame circuit breaker. For modern panel upgrades, it crosses over to the Square D HDL36020, which is part of the newer PowerPact series.
What does the G suffix mean in the FAL34020G part number?
The G suffix indicates that the circuit breaker includes a factory-installed ground fault shunt trip. This allows it to interface with a Square D Micrologic ground fault module, such as the GFM100FA, for specialized equipment protection.
What types of equipment are compatible with the FAL34020G breaker?
This unit-mount circuit breaker is designed for installation in compatible Square D enclosures, switchboards, and panelboards that accept legacy F-Frame breakers. It is not compatible with I-Line panelboards.
What wire sizes are accepted by the lugs on the FAL34020G?
The included line and load lugs accept 14 to 4 AWG copper wire, or 12 to 4 AWG aluminum wire.
Can the FAL34020G be used in DC power systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC.
How does the FAL34020G mount into an electrical panel?
It features a unit-mount, feed-thru design. Unlike plug-on or I-Line breakers, unit-mount breakers are bolted directly to the chassis or mounting pan in supported Square D enclosures and switchboards.
