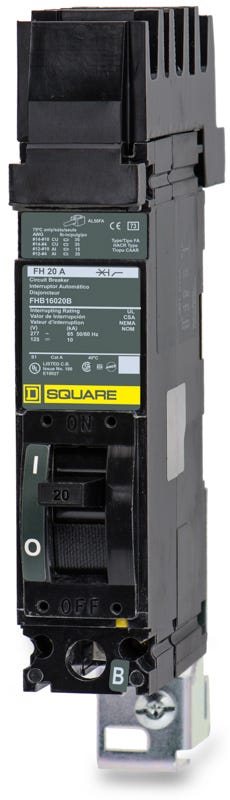

Square D FHB16020B Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FHB16020B
Molded Case Circuit Breaker
Brand
Square D
SKU
FHB16020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHB16020B - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for robust electrical distribution, this 1-pole, 20A Square D breaker provides thermal-magnetic protection for commercial and industrial facilities. The FHB16020B is a legacy F-frame component designed for heavy-duty use. Equipped with a Phase B jaw, it mounts into Square D I-Line panelboards. Facilities looking to modernize can substitute this unit with the PowerPact BGA140203. It features a 25kAIC rating at 277VAC and carries a HACR classification for HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHB16020B |
| Series | FHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 25kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Phase Connection B |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the "B" suffix in FHB16020B indicate?
The "B" indicates that this 1-pole breaker is factory configured for a Phase B connection. When installed in an I-Line panelboard, the plug-on jaw will only engage with the B phase of the busbar.
What is the modern replacement for the legacy FHB series?
The FHB is a legacy F-frame circuit breaker. For new installations or panel upgrades, Square D has superseded this line with the PowerPact B-frame series, such as the BGA models, which also utilize the I-Line mounting standard.
Will the FHB16020B fit in a standard Square D NQ or NF panelboard?
No. This breaker features an I-Line style plug-in connection designed exclusively for I-Line panelboards and switchboards. It is not compatible with NQ, NF, QO, or Homeline panels.
How does the I-Line connection work on this breaker?
The line side of the breaker features a plug-on jaw that snaps directly onto the I-Line busbar, eliminating the need for line-side wiring. The load side uses a standard mechanical lug to terminate the outgoing conductor.
Can this 1-pole breaker be used on a 480V system?
Yes, the FHB16020B is designed for use on 480Y/277V solidly grounded wye systems. It is rated for 277VAC to ground and delivers a 25kA interrupting capacity.
Does this breaker offer ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker equipped with fixed long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not provide GFCI or AFCI capabilities.
