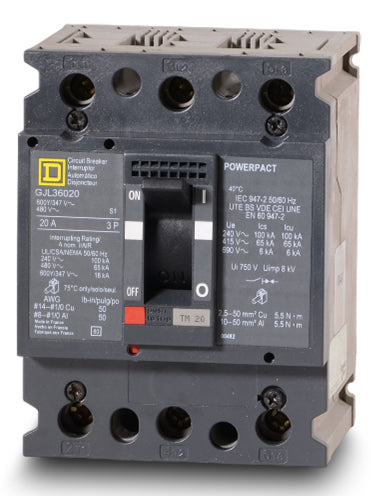

Square D GJL36020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Quantity
Square D GJL36020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D GJL36020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | GJL36020 |
| Series | GJL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Square D GJL36020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | GJL36020 |
| Series | GJL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Description
Part of the PowerPacT series, the Square D GJL36020 is a 3-pole molded case circuit breaker designed for industrial applications. It delivers reliable overcurrent protection for critical infrastructure. Configured for unit mounting, this breaker installs into Square D control panels. As a legacy G-frame component, it is officially replaced by the HJL36020 for modern system upgrades. Rated at 65 kAIC at 480VAC, the unit features a current-limiting design to minimize fault damage.Specifications
| Brand | Square D |
|---|---|
| Part Number | GJL36020 |
| Series | GJL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
8 answersWhat do the letters "GJL" indicate in the GJL36020 part number?
In Square D nomenclature, "G" specifies the PowerPacT G-Frame, "J" indicates the interrupting rating (65kA at 480V), and "L" denotes that the breaker is supplied with factory-installed line and load lugs.
What do the numbers "36020" signify in the GJL36020 catalog number?
The "3" indicates a 3-pole configuration, the "6" specifies a 600V AC maximum voltage rating, and the "020" denotes the 20-amp continuous current rating.
Can the Square D GJL36020 be reverse fed?
Yes, standard thermal-magnetic PowerPacT G-Frame circuit breakers like the GJL36020 do not have line or load restrictions and can be safely reverse fed.
What wire sizes are compatible with the GJL36020 lugs?
The factory-installed feed-thru lugs accept 14 to 1/0 AWG copper (Cu) wire, or 8 to 1/0 AWG aluminum (Al) wire.
Is the GJL36020 a drop-in replacement for legacy FAL or FHL breakers?
No. While the PowerPacT G-Frame covers similar amperage and voltage applications as the older Square D F-Frame breakers, they have different physical dimensions and mounting footprints. Upgrading from an FAL to a GJL requires verifying the available space and mounting hardware in your enclosure.
How does the GJL36020 mount inside a panel?
This is a unit-mount circuit breaker. It bolts directly to a backpan or mounting plate inside Square D control panels, switchboards, or standalone enclosures, rather than plugging onto a busbar.
Does the GJL36020 include ground fault protection?
No. This breaker features a standard thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions for overload and short-circuit protection. It does not provide ground fault or equipment protection.
Are the thermal and magnetic trip settings adjustable on the GJL36020?
No, the GJL36020 features a fixed thermal and fixed magnetic trip unit. If you require adjustable trip settings, you will need to look at breakers with electronic Micrologic trip units.
